Product description
3.2
Electronics housing
2
1
å 2

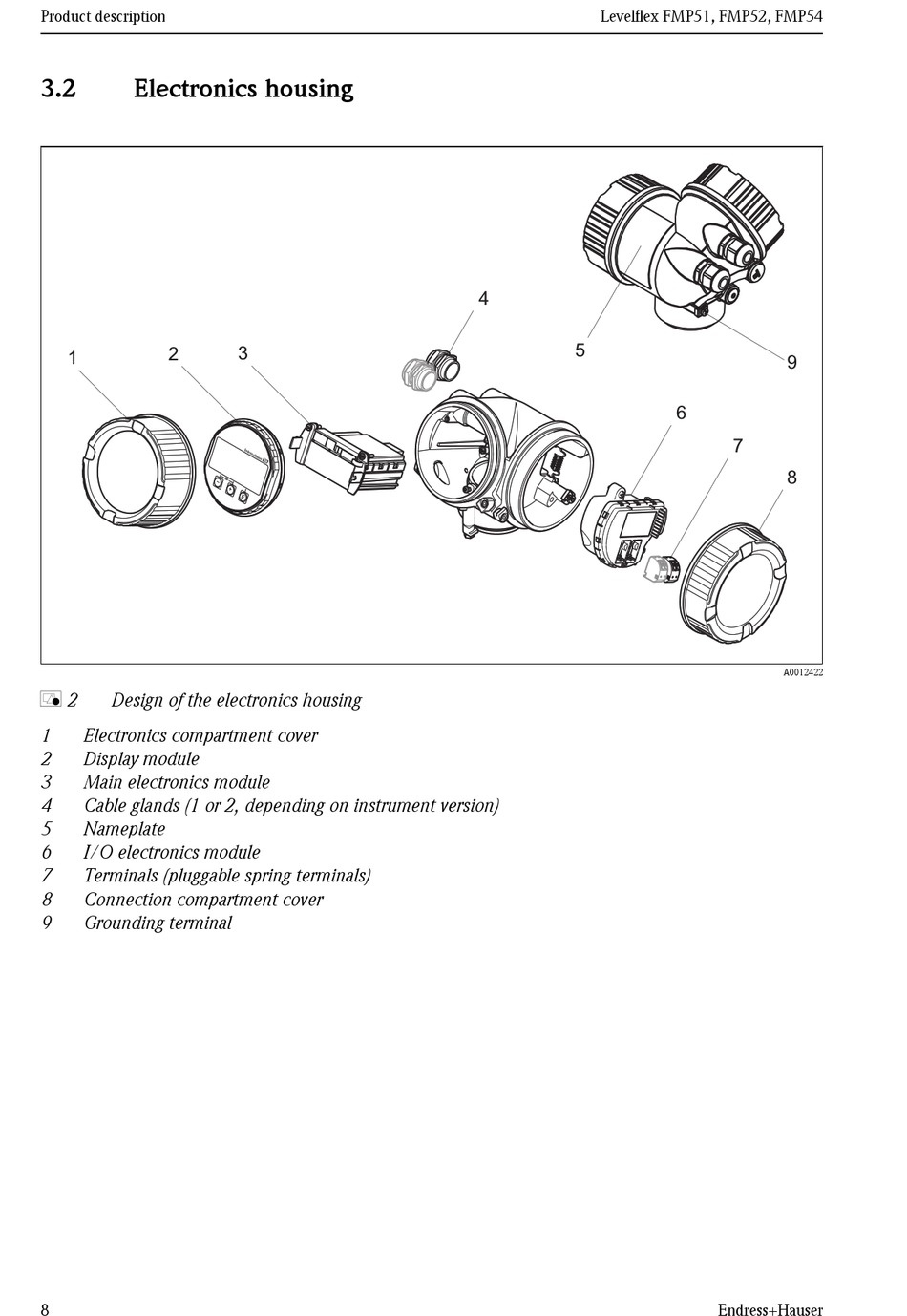

Design of the electronics housing
1
Electronics compartment cover
2
Display module
3
Main electronics module
4
Cable glands (1 or 2, depending on instrument version)
5
Nameplate
6
I/O electronics module
7
Terminals (pluggable spring terminals)
8
Connection compartment cover
9
Grounding terminal
8
3
Levelflex FMP51, FMP52, FMP54
4
5
9
6
7
8
A0012422
