Levelflex FMP51, FMP52, FMP54
7

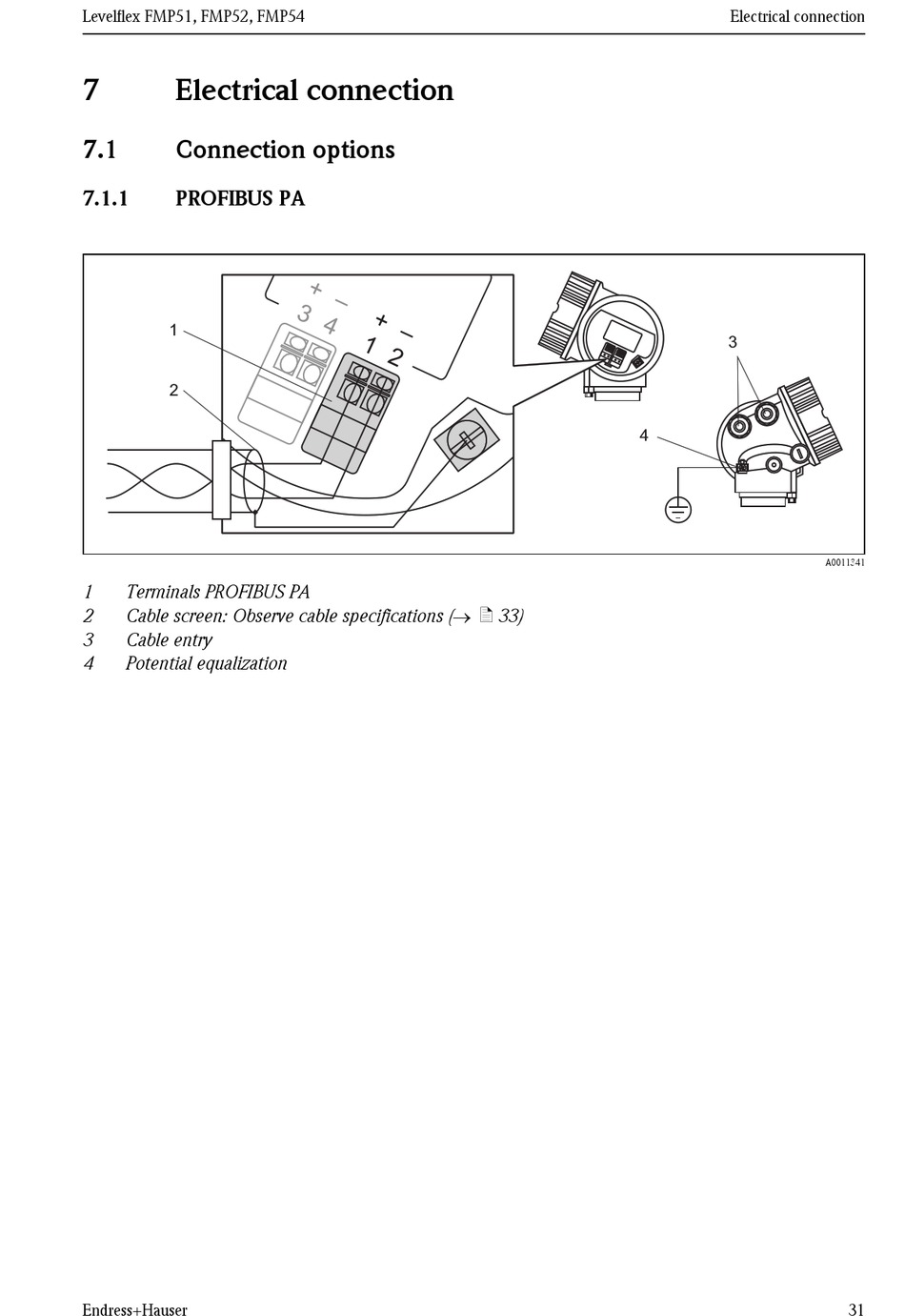

Electrical connection

7.1

Connection options

7.1.1
PROFIBUS PA
1
2
1
Terminals PROFIBUS PA
2
Cable screen: Observe cable specifications (® ä 33)
3
Cable entry
4
Potential equalization
Endress+Hauser
Electrical connection
3
4
A0011341
31
