Levelflex FMP51, FMP52, FMP54

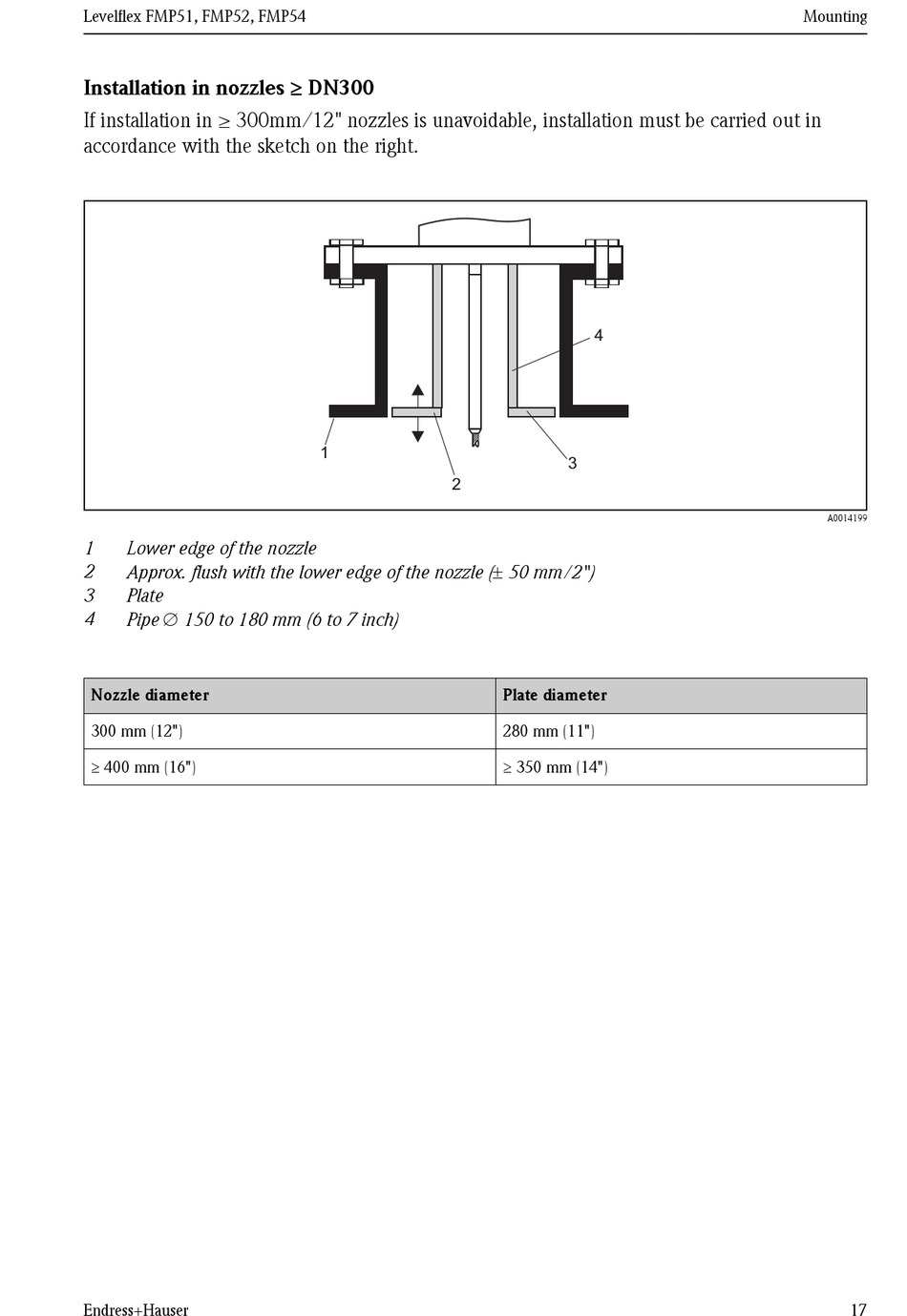

Installation in nozzles ³ DN300
If installation in ≥ 300mm/12" nozzles is unavoidable, installation must be carried out in
accordance with the sketch on the right.
1 Lower edge of the nozzle
2
Approx. flush with the lower edge of the nozzle (± 50 mm/2")
3 Plate
Pipe Æ 150 to 180 mm (6 to 7 inch)
4
Nozzle diameter
300 mm (12")
³ 400 mm (16")
Endress+Hauser
1
2
4
3
Plate diameter
280 mm (11")
³ 350 mm (14")
Mounting
A0014199
17
