PerkinElmer Spectrum RX I Getting Started Manual page 31

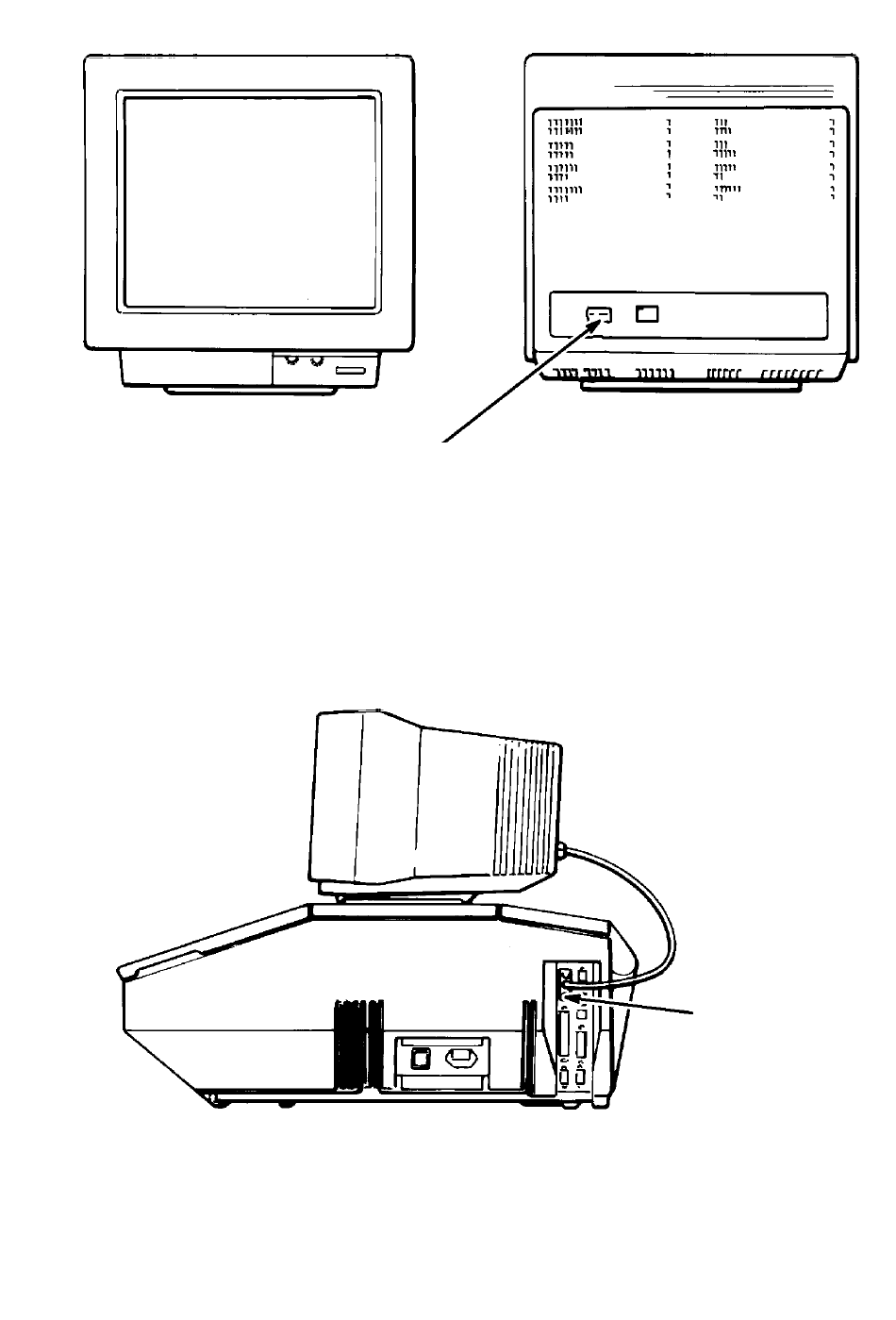

Figure 10 The Screen
2. Connect the power cable to the socket on the rear of the screen
(Figure 10).
3. Connect the communication lead from the monitor into the MONITOR
port on the right-hand side of the Spectrum RX I (Figure 11).
Figure 11 The Screen Connected to the Spectrum RX I
Spectrum RX I Getting Started Guide . 31
Power socket
Connect to
MONITOR port
