Module Programming - Directed DIRECTECHS DS4+ Installation Manual

Module programming

Refer to "LED diagnostics and troubleshooting" on page 21 for more information and for troubleshooting purposes.

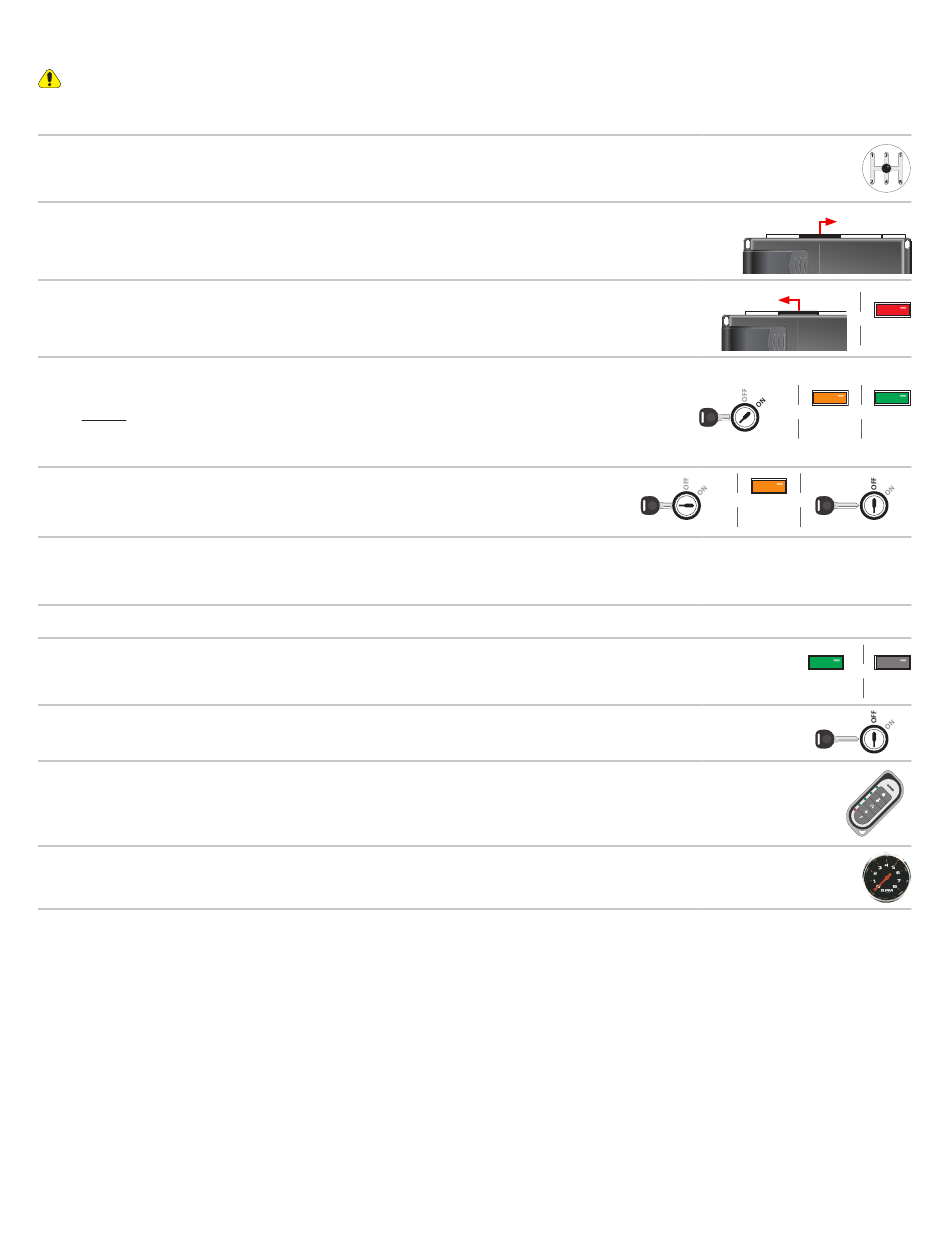

To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2
Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
Turn the key to the ON position. The LED will flash orange, then green.
4
NOTE: If transponder programming was skipped, the LED turns ON solid orange for 3
seconds then shuts OFF once the module is successfully programmed without bypass. Turn
vehicle ignition OFF and proceed to step 9.
Start the vehicle by turning the key. The LED now
5
flashes orange slowly. Turn vehicle ignition OFF.
Remove the module from the vehicle and reconnect it to your computer. The Directechs
6
web site will automatically recognize that you are moving on the second phase of the
programming sequence.
7
Click on Submit Key2GO Request.
Once the configuration is completed, reconnect the module to the vehicle. The LED turns
8
ON solid green for 3 seconds, then turns OFF.
9
Turn vehicle ignition OFF once the module is successfully programmed.
Pair remotes (if applicable). For information on how to pair a specific remote, please
10
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
11
program tach, see page 24.
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
20
Key OUT
Key OUT Key IN
START
START
Must be
connected LAST
Key IN Key IN
START START
Key IN Key IN
&
START START
© 2017-03-07 Directed. All rights reserved.
Connect all but the
12-pin harness
&
Solid
Key IN
& &
Flashes Flashes
START START
orange green
Key OUT Key IN
&
Flashes
START
slowly
&
Solid x 3 secs Off
Key OUT Key IN
START
Pair
remotes*
Initialize
tachometer
DS4+ SUBARU1
