Directed DIRECTECHS DS4+ Installation Manual page 9

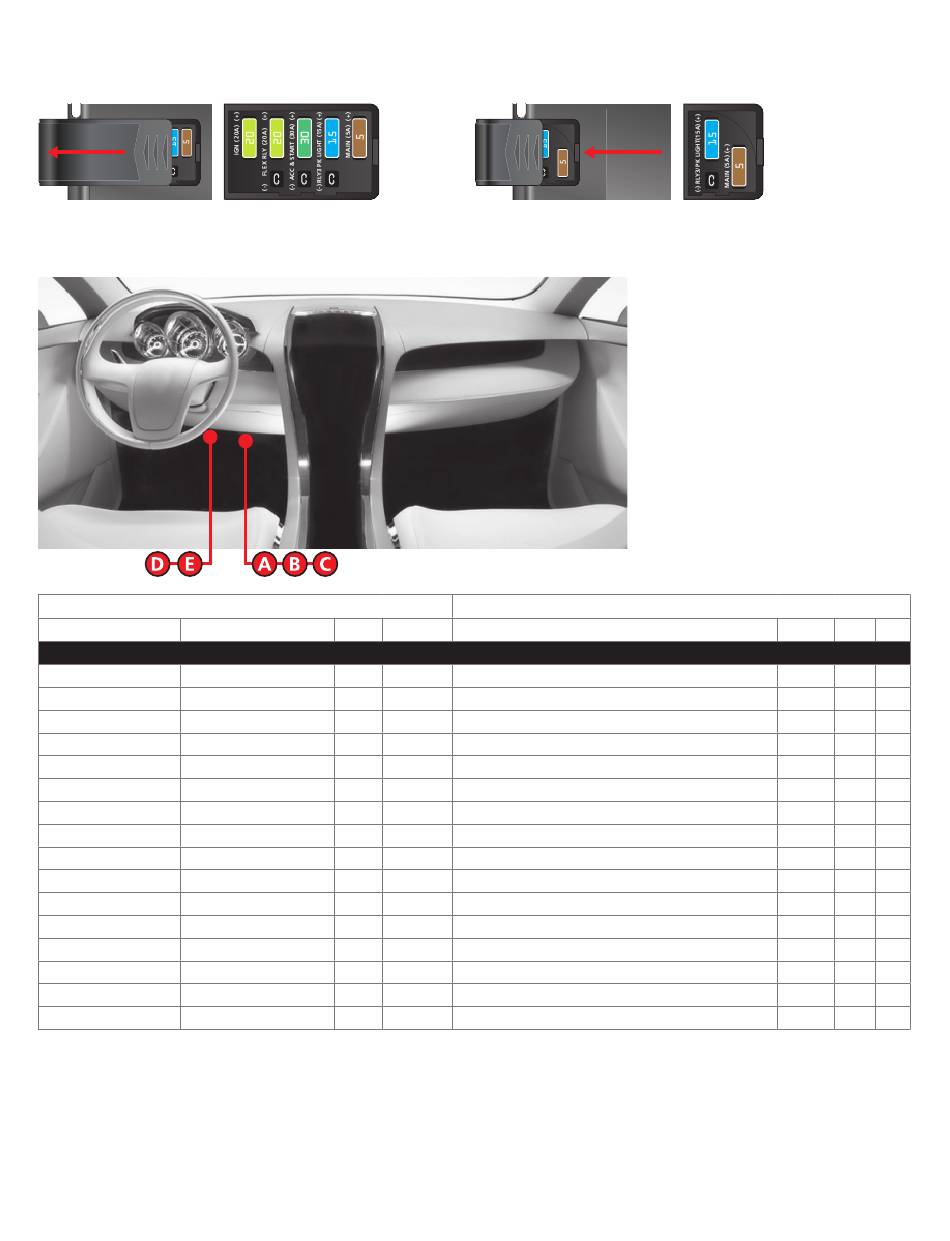

Fuse selection
To ensure correct functionality of your system, please configure the fuses on your system as follows:
DS4+
10
Slide to open
Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Subaru B9 Tribeca 2006
HS CAN High Red
HS CAN Low Blue
Immobilizer Data 1 White/Blue
Immobilizer Data 2 Black/Pink
FT CAN High Pink
FT CAN Low Violet
Keyless Data Yellow/Green
Security Light Brown/Red
Keysense Red or Black/White
Brake Brown/Red
12V White
Accessory Yellow
Ignition Green
Ignition 2 Blue
Starter White/Black
Parking lights Orange
9
12 22 8
2 4 4 4 2
Pin Polarity
20
30
18
28
27
26
9
33
7
23
3
4
6
1
2
4
DS4
12
2
Location
Data Body Integrated Unit, B280, right of steering column.
Data Body Integrated Unit, B280, right of steering column.
Data Body Integrated Unit, B280, right of steering column.
Data Body Integrated Unit, B280, right of steering column.
Data Body Integrated Unit, i84, right of steering column.
Data Body Integrated Unit, i84, right of steering column.
Data Body Integrated Unit, i84, right of steering column.
(-) Body Integrated Unit, i84, right of steering column.
(+) Body Integrated Unit, B281, right of steering column.
(+) Body Integrated Unit, B281, right of steering column.
(+) Ignition Switch, B72, at steering column.
(+) Ignition Switch, B72, at steering column.
(+) Ignition Switch, B72, at steering column.
(+) Ignition Switch, B72, at steering column.
(+) Ignition Switch, B72, at steering column.
(+) Parking Light Switch, B69, at steering column.
22 8
Slide to open
4 4 4 2
Connector Information
© 2017-03-07 Directed. All rights reserved.
Color Pins Ref.
White 30 A
White 30 A
White 30 A
White 30 A
Gray 35 B
Gray 35 B
Gray 35 B
Gray 35 B
White 28 C
White 28 C
White 6 D
White 6 D
White 6 D
White 6 D
White 6 D
White 4 E
DS4+ SUBARU1
