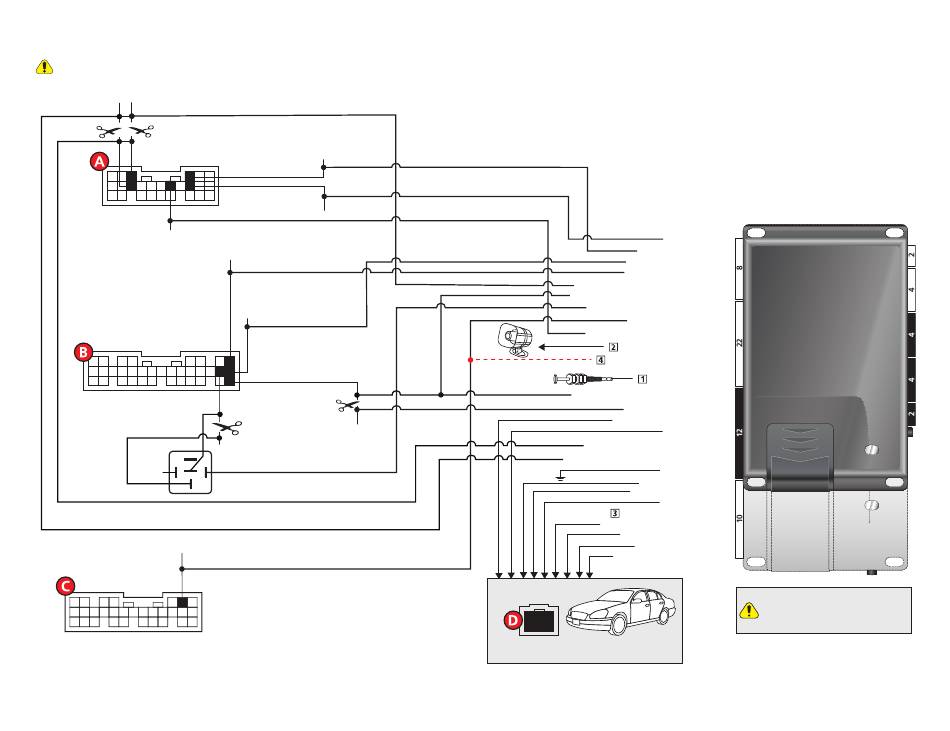

Type 3 - Directed DIRECTECHS DS4+ Installation Manual

Type 3

Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 16 for important information on this installation.
Immobilizer Data 2:
Immobilizer Data 1: White/Blue, pin 4
Black/Red, pin 15
CUT
CUT
B280 - Gray 26-pin conn.
(BCM, right of steering column)
4 3
6 5 2 1
15 11 9
17 16 14 13 12 10 8 7
26 25 24 23 22 21 20 19 18
(-) Parking Lights: Black/White, pin 11
i84 - Gray 35-pin conn.
(BCM, right of steering column)
8 7 6 5 4 3
23 22 21 20 19 18 17 16 15 14 13 12 11
35 34 32 31 30 29 28 27 26
33
(-) Security Light:
Brown/Red, pin 10
86 87 85
(+) 12V
87a
30
(+) Keysense:
Black/White, pin 2
7 6 5 4 3 2 1
20 19 18 17 16 15 14 13 12 11 10 9 8
30 29 28 27 26 25 24 23 22 21
B281 - White 28-pin conn.
(BCM, right of steering column)
15
HS CAN High:Red, pin 3
HS CAN Low: Blue, pin 9
FT CAN High: Pink, pin 1
FT CAN Low:
Blue or Lt.Green/Red, pin, 9
2 1
9
10
25 24
Keyless Data:
Gray/Red or
Yellow/Green,
CUT
pin 24
CUT
HS CAN Low: Tan: 1
HS CAN High: Tan/Black: 2
FT CAN Low: Orange/Brown: 3
FT CAN High: Orange/Green: 4
Immo. Data Interr. (veh. side): Orange/Black: 7
Keyless Data Interr. (conn.side): Yellow/Black: 8
(-) Security Light Output: Lt.Green/Black: 1
(+) Keysense Output: White: 7
(-) Parking Light Output: Lt.Blue/Black: 10
(+) Siren Output: Brown/Red: 11
Siren
(+) Keysense Input: Orange/Black: 18
Hood Pin
(-) Hood Input: Gray: 21
Keyless Data Interr. (conn. side): Blue/White: 1
Keyless Data (veh. side): Blue: 3
(+) Starter 2 Output: White: 5 & 11
(+) 12V: Red: 6 & 12
Immo. Data Interr. (conn.
Immo. Data Interr. (veh. side): Lt. Green/White: 9
(-) Ground: Black: 10
(+) 12V Input: Red/Black: 2
(+) Accessory 2: Pink/White: 4
(+) 12V Input: Red: 5
Starter Input (key side): Green: 6
(+) Starter Output (veh. side): Violet: 7
(+) Accessory Output: Orange: 8
(+) 12V Input: Red/White: 9
(+) Ignition Input/Ouput: Pink: 10
B72 - White 6-pin conn.
(at Ignition Switch)
3 2 1
6 5 4
Refer to the Vehicle Wiring Reference Chart
on pages 15-16 for wire colors and location.
side): Lt. Green: 8
It is important to check that the
fuses are positioned correctly. See
Fuse selection on the next page for
more information.
