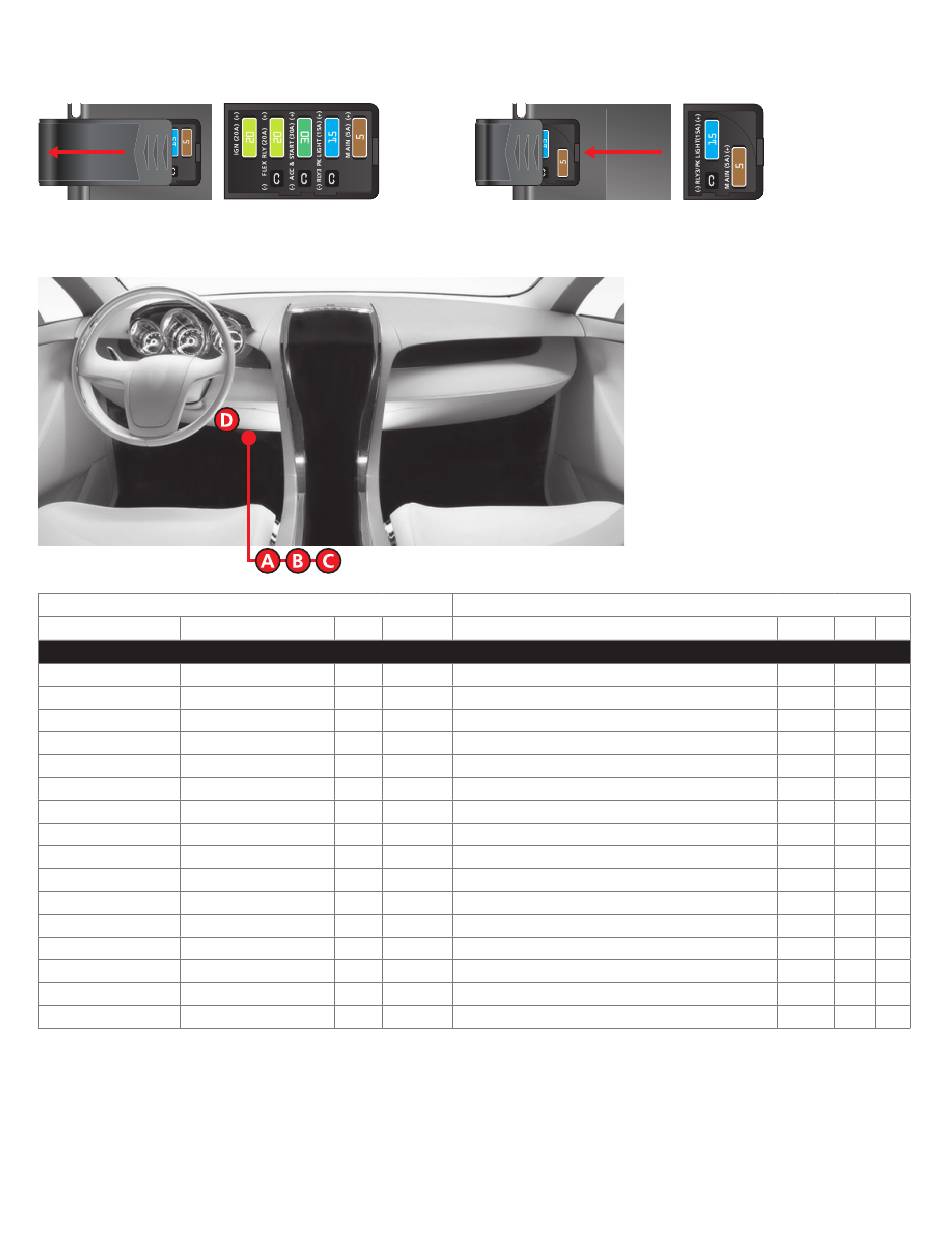

Directed DIRECTECHS DS4+ Installation Manual page 16

Fuse selection
To ensure correct functionality of your system, please configure the fuses on your system as follows:
DS4+
10
Slide to open
Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Subaru Forester 2009-2013
HS CAN High Red
HS CAN Low Blue
Immobilizer Data 1 White/Blue
Immobilizer Data 2 Black/Red
Parking lights Black/White
FT CAN High Pink
FT CAN Low Blue
Keyless Data Gray/Red
Security Light Brown/Red
Keysense Black/White
12V White
Accessory 1 Blue
Accessory 2 Yellow
Ignition Green
Starter 1 White/Black
Starter 2 White/Red
16
12 22 8
2 4 4 4 2
Pin Polarity
3
9
4
15
11
1
9
24
10
2
3
4
5
1
2
6
DS4
12
2
Location
Data Body Integrated Unit, B280, right of steering column.
Data Body Integrated Unit, B280, right of steering column.
Data Body Integrated Unit, B280, right of steering column.
Data Body Integrated Unit, B280, right of steering column.
(-) Body Integrated Unit, B280, right of steering column.
Data Body Integrated Unit, i84, right of steering column.
Data Body Integrated Unit, i84, right of steering column.
Data Body Integrated Unit, i84, right of steering column.
(-) Body Integrated Unit, i84, right of steering column.
(+) Body Integrated Unit, B279, right of steering column.
(+) Ignition Switch, B72, at steering column.
(+) Ignition Switch, B72, at steering column.
(+) Ignition Switch, B72, at steering column.
(+) Ignition Switch, B72, at steering column.
(+) Ignition Switch, B72, at steering column.
(+) Ignition Switch, B72, at steering column.
22 8
Slide to open
4 4 4 2
Connector Information
© 2017-03-07 Directed. All rights reserved.
Color Pins Ref.
Gray 26 A
Gray 26 A
Gray 26 A
Gray 26 A
Gray 26 A
Gray 35 B
Gray 35 B
Gray 35 B
Gray 35 B
White 30 C
White 6 D
White 6 D
White 6 D
White 6 D
White 6 D
White 6 D
DS4+ SUBARU1
