Appearance

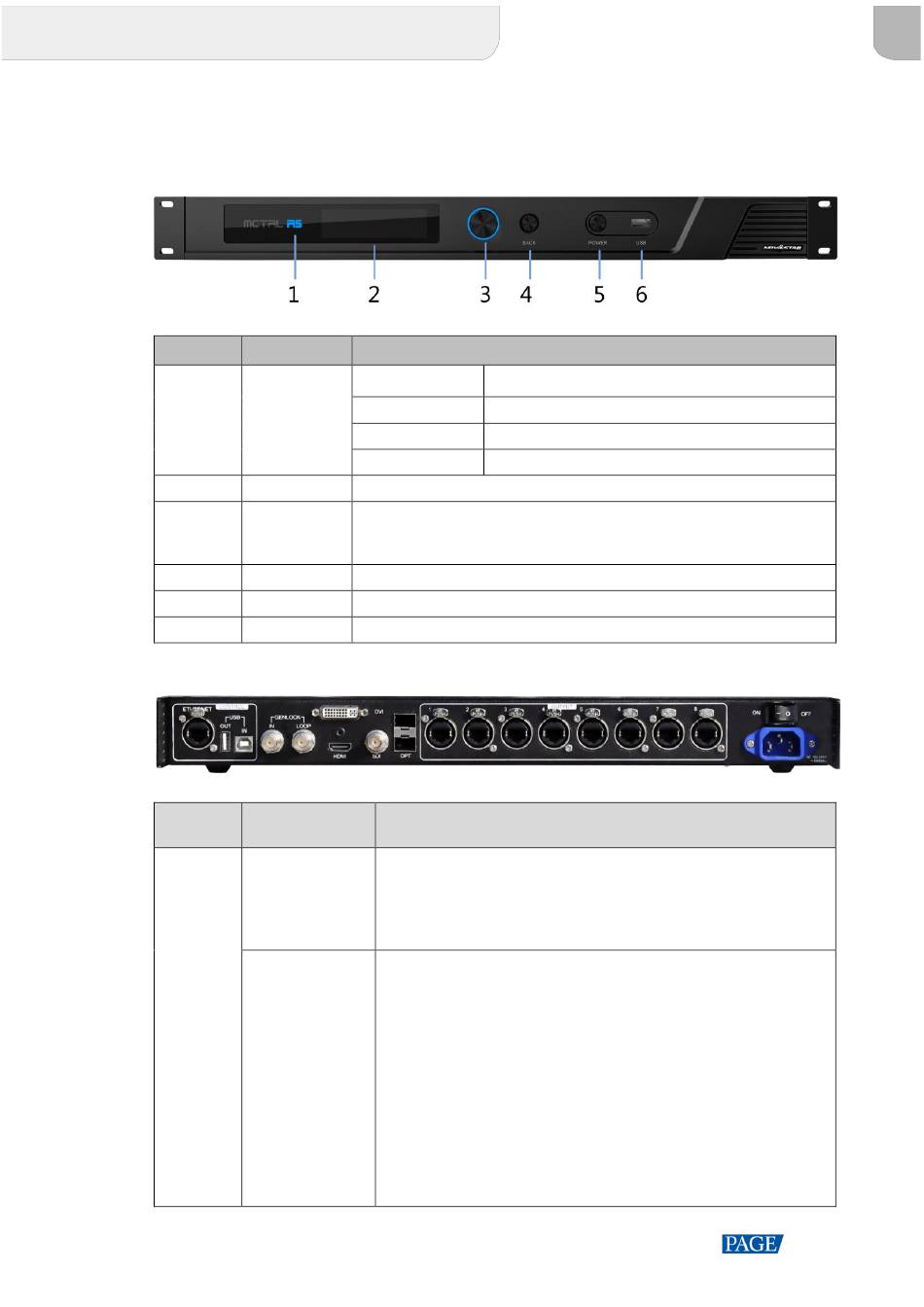

Front Panel
No. Name
"R5" indicator
1
OLED screen
2
Knob
3
BACK
4
POWER
5
USB
6
Rear Panel
Connector Connector Name
Type
Input SDI
HDMI
www.novastar.tech
MCTRL R5 LED Display Controller User Manual
Description
Solid blue The device is functioning normally.
Solid orange The device has no signal input.
Breathing blue The device is in standby mode.
Solid red The device has an alarm.
Display the device status, menus, submenus and messages.
On the home screen, press the knob to enter the main menu screen.
On the main menu screen, rotate the knob to select a menu item or adjust
the parameter value. Press the knob to confirm the operation.
Go back to the previous menu.
Standby button
A USB port used to connect a USB drive for firmware update
Description
1x 6G-SDI input connector

Maximum resolution: 3840×1080@60Hz

Do NOT support interlaced signal input.

Do NOT support input resolution settings or input bit depth settings.
1x HDMI 1.4 input connector

Maximum resolution: 3840×1080@60Hz

Minimum resolution: 800×600@24Hz

Custom resolutions supported
Maximum width: 3840 (3840×1080@60Hz)
Maximum height: 3840 (800×3840@60Hz)

Supported standard resolutions:
1024×768@(24/25/30/48/50/60/72/75/85/100/120)Hz
1280×720@(24/25/30/48/50/60/72/75/85/100/120)Hz
1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz
1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz
