6.6.3 Set Alarm Thresholds

Set the alarm thresholds for device temperature and voltage. When a threshold is exceeded, its corresponding
icon on the home screen will be flashing, instead of displaying the value.

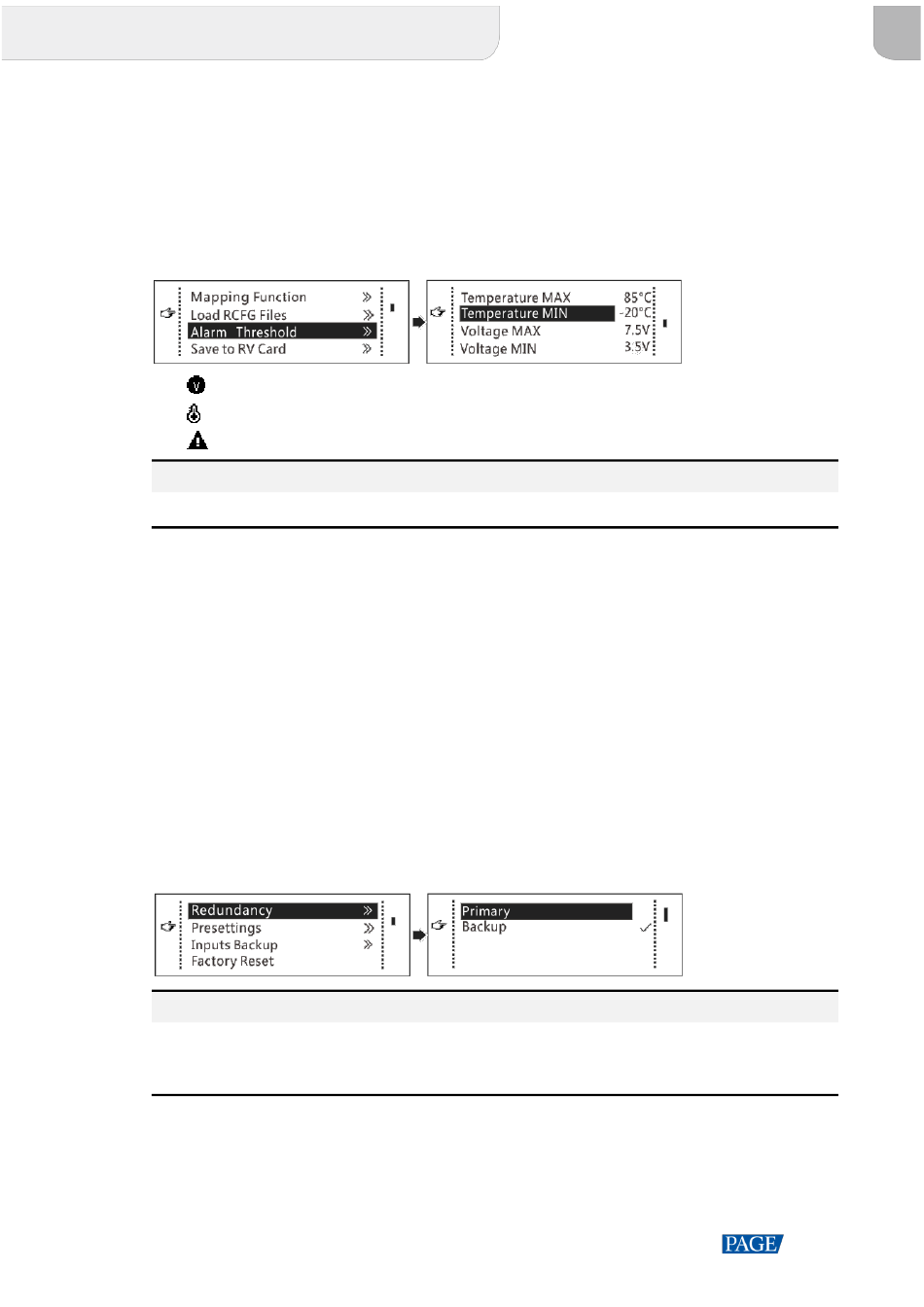

Figure 6-11 Setting alarm thresholds

: Voltage alarm, icon flashing. Voltage threshold range: 3.5 V to 7.5 V
 : Temperature alarm, icon flashing. Temperature threshold range: –20° C to +85° C

: Voltage and temperature alarms at the same time, icon flashing
Note
When there are no temperature or voltage alarms, the home screen will display the backup status.

6.6.4 Save to RV Card

By using this function, you can:

Send and save the configuration information to the receiving cards, including brightness, color
temperature, Gamma and display settings.

Overwrite the information saved to the receiving card earlier.

Ensure that the data saved in the receiving cards will not be lost upon power failure of receiving cards.

6.6.5 Redundancy Settings

Set the controller as the primary or backup device. When the controller works as a backup device, set the data
flow direction as opposite to that of the primary device.
Figure 6-12 Redundancy settings
Note
If the controller is set as the backup device, when the primary device fails, the backup device will immediately
take over the work of the primary device, that is, the backup takes effect. After the backup takes effect, the
target Ethernet port icons on the home screen will have marks in top flashing once every 1 second.
