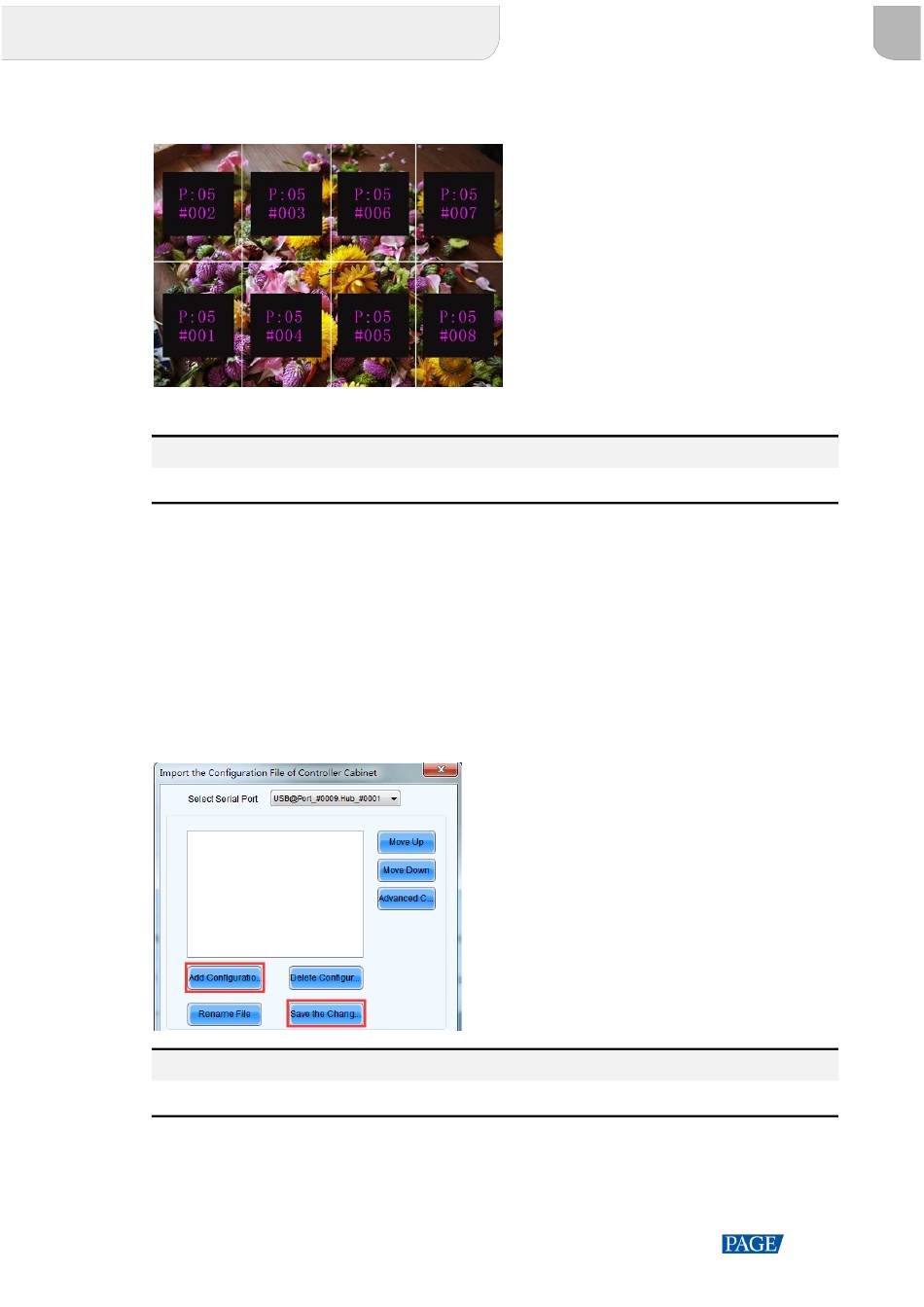

Example: "P:01" stands for the Ethernet port number and "#001" stands for the cabinet number.
Note
The receiving cards used in the system must support the Mapping function.

6.6.2 Load Cabinet Configuration Files

Before you begin: Save the cabinet configuration file (*.rcfgx or *.rcfg) to the local PC.
Step 1 Run NovaLCT and choose Tools > Controller Cabinet Configuration File Import.
Step 2 On the displayed page, select the currently used serial port or Ethernet port, click Add Configuration File to
select and add a cabinet configuration file.
Step 3 Click Save the Change to HW to save the change to the controller.
Figure 6-10 Importing configuration file of controller cabinet
Note
Configuration files of irregular cabinets are not supported.
