Electronically Controlled Bypass (ECB) Operation

Overview

Information provided in this section is intended to
enable the user to connect control wiring, program
functions, and operate the ECB and its optional
features.
The ECB contains a local processor located on the
ECB control card which interacts with the drive's
control logic for programmable options, remote
command input, and output status reporting. Rather
than panel-mounted operator-activated selector
switches, as on the electromechanical option panel,
ECB control is provided by the drive's processor.
The ECB also contains a power supply which
provides back up for the drive's logic circuitry, so
even if the drive loses power, the control and
communication functions are maintained.
LCP display
Menu keys
Menu navigation
Control keys

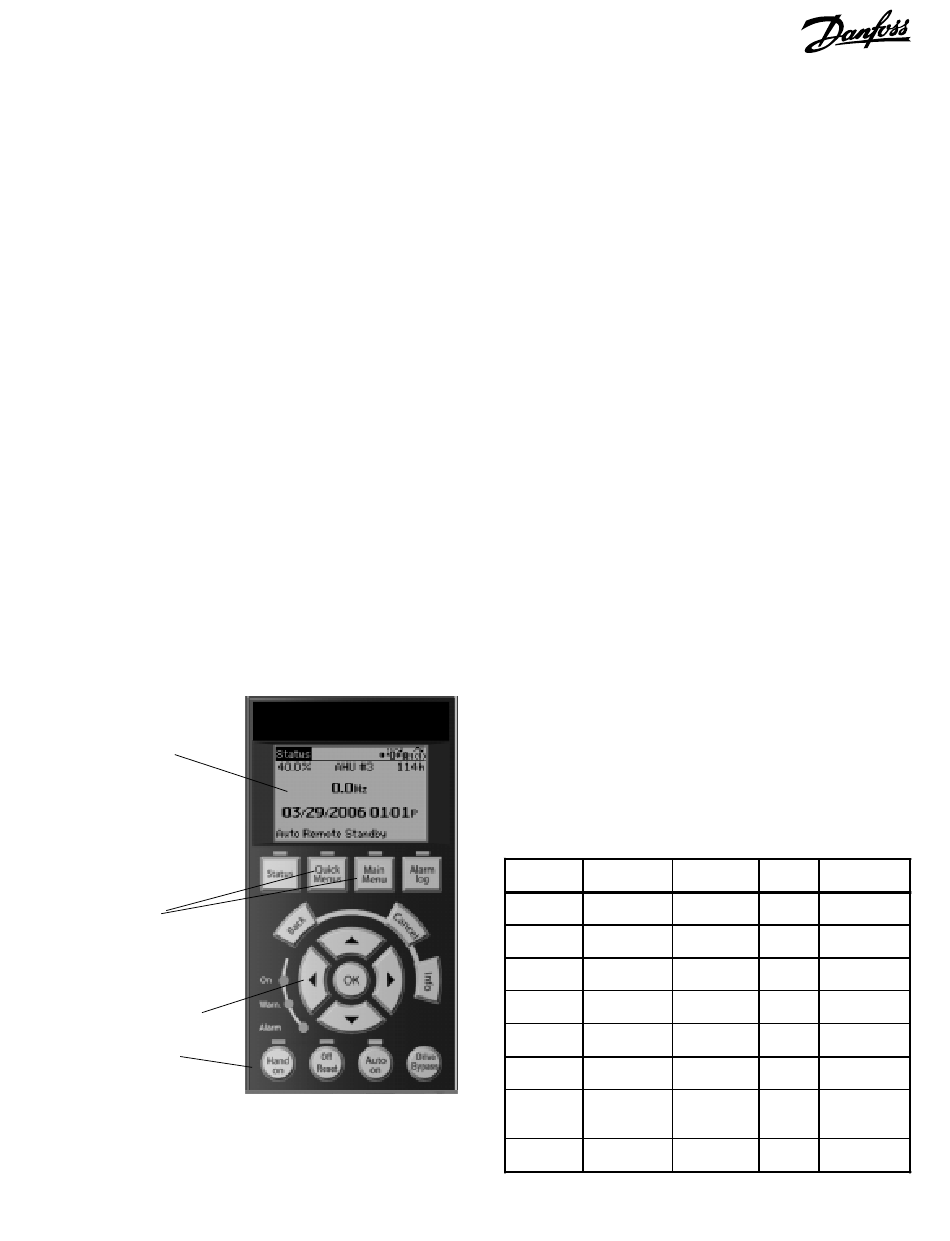

Figure 6-1. Local Control Panel (LCP)
Section 6
Programming and display are provided by the
drive's local control panel (LCP). See Figure 6-1. An
important feature of the ECB is the ability to accept
commands from a building automation system
(BAS) and to report operational status in return.
Control wiring connections are made to either the
drive's control terminals (see Figure 6-2) or
terminals provided on the ECB control card (see
Figure 6-3). Drive analog and digital I/O terminals
are multifunctional and need to be programmed for
their intended use while the terminals on the ECB
control card are dedicated for specific functions.
Programming options for drive terminals are seen
by pressing the MAIN MENU key or QUICK MENU
key on the LCP keypad. Parameter menus appear
in the LCP display. The arrow keys are used for
navigating through the parameter lists. Terminal
functions are programmed in the 5-00 parameter
group. (See Table 6-1 for factory default parameter
settings for drives with an ECB.) Bypass functions
are programmed in the 31-00 parameter group (see
Table 6-5). See the drive's supporting materials for
detailed programming instructions.
Table 6-1. 5-00 Parameter Group Factory
Parameter
Parameter
Term 27
5-01
Term 29
5-02
Term 18
5-10
digital input
Term 19
5-11
digital input
Term 27
5-12
digital input
Term 29
5-31
digital output
5-40[0]
Relay 1 off
5-40[0]
Default Settings
Setting title Setting
name
Input
Mode
Output
Mode
Start
Run
52
Permissive
External
Interlock
No Alarm 160
Start
Relay 1
Command 167
function
Active
Off Delay 0.00 s
delay
Function
Customer
0
Interlock
1 Auto bypass
Common
8
run/stop
Run
Permissive
Customer
7
Interlock
Auto bypass
Run
Permissive
Run
Permissive
