Option Panel Configurations

The VLT FC Drive Series has three tiers of option
panel enclosure types. These designations are
universal for both the EMB and ECB panels as well
Tier 1
Drive plus either or both
of the following:
1. Fuses
2. Disconnect

Option Panel Voltage and Frame Ratings

Table 1-3 defines the voltage and hp ratings of the
frames sizes for the option panel. See the
mechanical drawing shipped with the unit for
dimensions.
Table 1-3. Panel Voltage and Frame Ratings
Fra mes A2 - A5
FC102/202
Volts VAC
208-230
460-480
575-600
Frame B1
FC102/202
Volts VAC
208-230
460-480
575-600
Fra me B2
FC102/202
Volts VAC
208-230
460-480
575-600
Tier 2
Drive with bypass or up to
two of the following:
1. Contactor motor selection
2. dV/dt filter or input AC line
reactor (NEMA 1 only)
3. Dual motor control

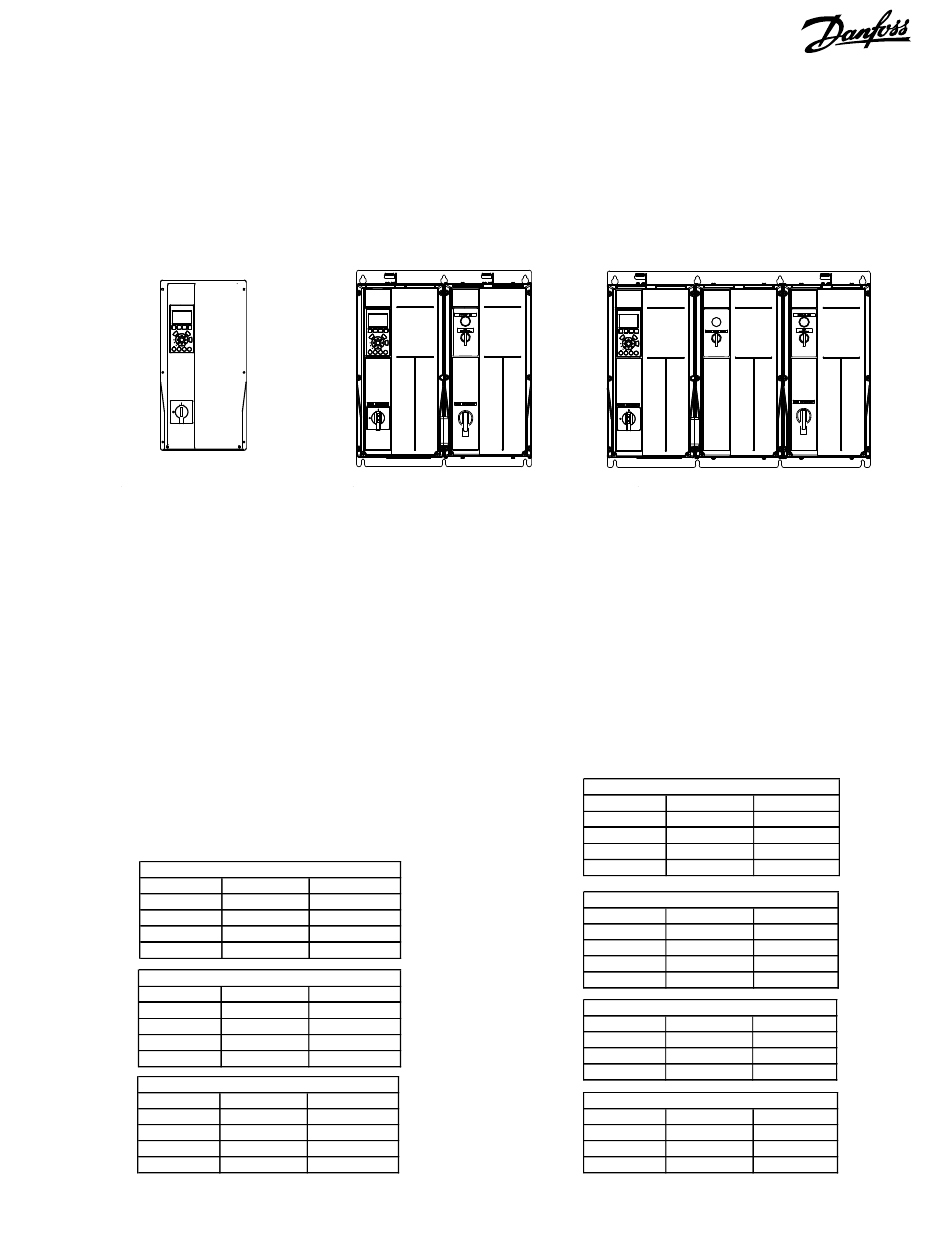

Figure 1-4. Tier Definitions and Features
FC302
hp hp
1.5-5 1.5-5
1.5-10 1.5-10
1.5-10 1.5-10
FC302
hp hp
7.5-10 7.5-10
15-25 15-20
15-25 15-20
FC302
hp hp
15-20 15
30-40 25-30
30-40 25-30
as drive options without bypass. See Figure 1-4 for
descriptions and available options.
Drive with bypass plus up to
two of the following:
1. Contactor motor selection
2. dV/dt filter or input AC line
reactor (NEMA 1 only)
3. Dual motor control
Table 1-3. Panel Voltage and Frame Ratings
(Cont.)
Frame C1
FC102/202
Volts VAC
208-230
460-480
575-600
Frame C2
FC102/202
Volts VAC
208-230
460-480
575-600
Frame D1
FC102/202
Volts VAC
460-480
575-600
Fra me D2
FC102/202
Volts VAC
460-480
575-600
Tier 3
FC302
hp hp
25-30 20-30
50-75 40-60
50-75 40-60
FC302
hp hp
40-60 40-50
100-125 75-100
100-125 75-100
FC302
hp hp
150-200 125-150
150-200 125-150
FC302
hp hp
250-350 200-300
250-400 200-350
