Connections

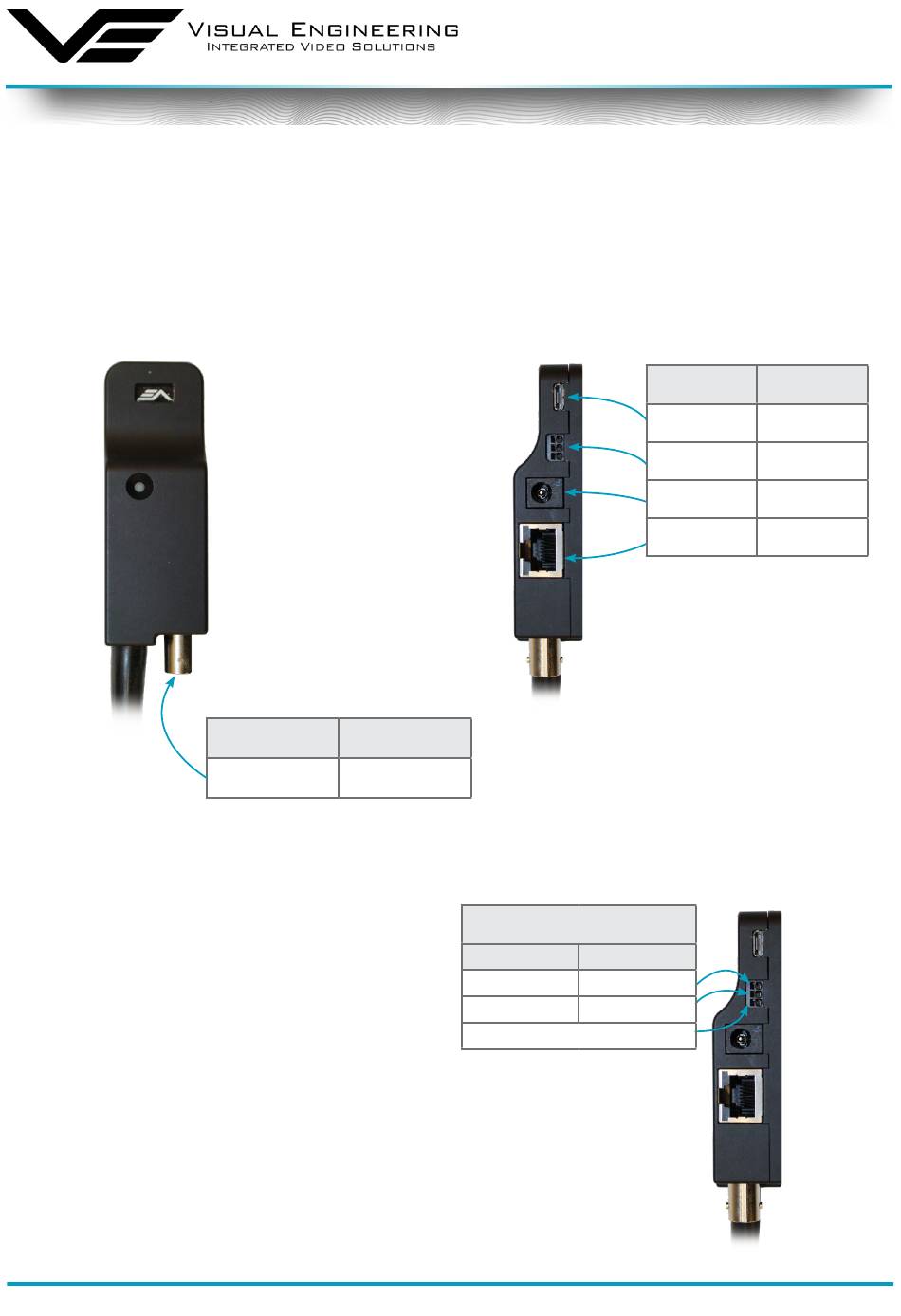

The MFR-DB kit includes a power comms break out cable, part number 110-3562�
The cable assembly connects to the Fischer MiniMax connector on the base of the camera�
All signals are then split out to their relevant connectors� The connections are described below�
MFR-DB communications are supported via the
micro USB and EXT 232/485 connectors�
The EXT 232/485 connector supports RS232 and
RS485 comms, the pinout of the connector is
described on the right�
visualengineering.co.uk
Connector Signal
BNC HD-SDI
EXT 232/485 Pinout
RS232 RS485
RX (to cam) B
TX (from cam) A
GND
December 2021
Connector Signal
Micro USB Comms
EXT 232/485 RS232/485
DC Coax Power
RJ45 *Ethernet
* Only active if the MFR-DB
includes an IP encoder�
