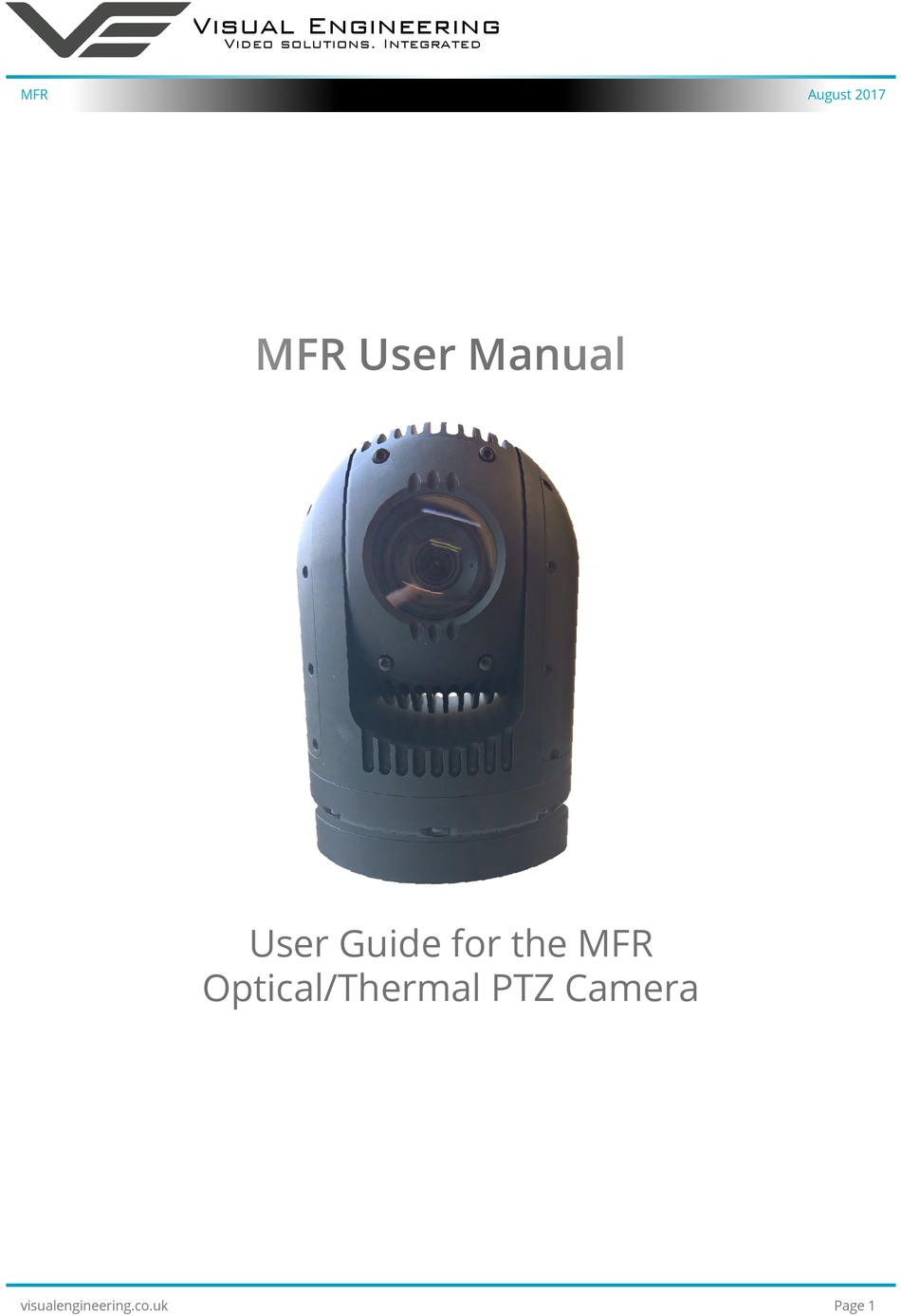

- Page 1 Visual Engineering Video solutions. Integrated August 2017 MFR User Manual User Guide for the MFR Optical/Thermal PTZ Camera visualengineering.co.uk Page 1...
-
Page 2: Table Of Contents
Visual Engineering Video solutions. Integrated August 2017 Table of Contents Table of Contents ............... 2 Change History . -
Page 3: Change History
Initial Draft Warranty and Support All Visual Engineering products are supplied as standard with a 12 month ‘Return to Base’ warranty. In the event of a suspected product failure, users should contact the Visual Engineering support team on the telephone number +44 (0) 1206 211842 or please email us at: support@visualengineering.co.uk... -
Page 4: Configuring The Camera
August 2017 Configuring the Camera The MFR can be configured for a specific user profile, to include; communications settings, motor control, video format and camera type. Once configured the camera will remember these settings. The camera is configured using a menu structure on its control interface which is only accessible at power on. -
Page 5: Motor Options
If disabled only optical zoom is allowed Disabled, Enabled On Screen The OSD in the camera’s video Disabled, Enabled Display Select Model Select Model Description Options Sets the camera type, set to either MFR or MFR-TI MKVI, TEDAS, MKIV, 10178, MKIVH, MFR, MFR-TI visualengineering.co.uk Page 5... -
Page 6: Software Control
August 2017 Software Control The MFR camera supports serial communication control over RS232 and RS485. It supports PelcoD, PelcoP & Sony Visca protocols. The user may choose to use a software controller of their choice or use the VE Camera Controller. - Page 7 In the example below the pan right command has been selected. This will cause the MFR camera to pan right. Similar commands for pan left, tilt up & down and zoom functions can also be tried out using the intuitive software user interface.
-
Page 8: Connections
Visual Engineering Video solutions. Integrated August 2017 Connections The MFR is fitted with either a Fischer or Amphenol Connector Pinout Amphenol connector in the base of the camera. Signal The pinout for the Amphenol connector is described in the table to the right. -
Page 9: Dimensions
Visual Engineering Video solutions. Integrated August 2017 Dimensions Overall Dimensions ø 115 Base Plate Hole Centres Visual Engineering Technologies LTD Kemps Farm Stanway Colchester Essex Tel: +44 (0)1206 211842 CO3 8NB Web: www.visualengineering.co.uk Email: sales@visualengineering.co.uk visualengineering.co.uk Page 9...
