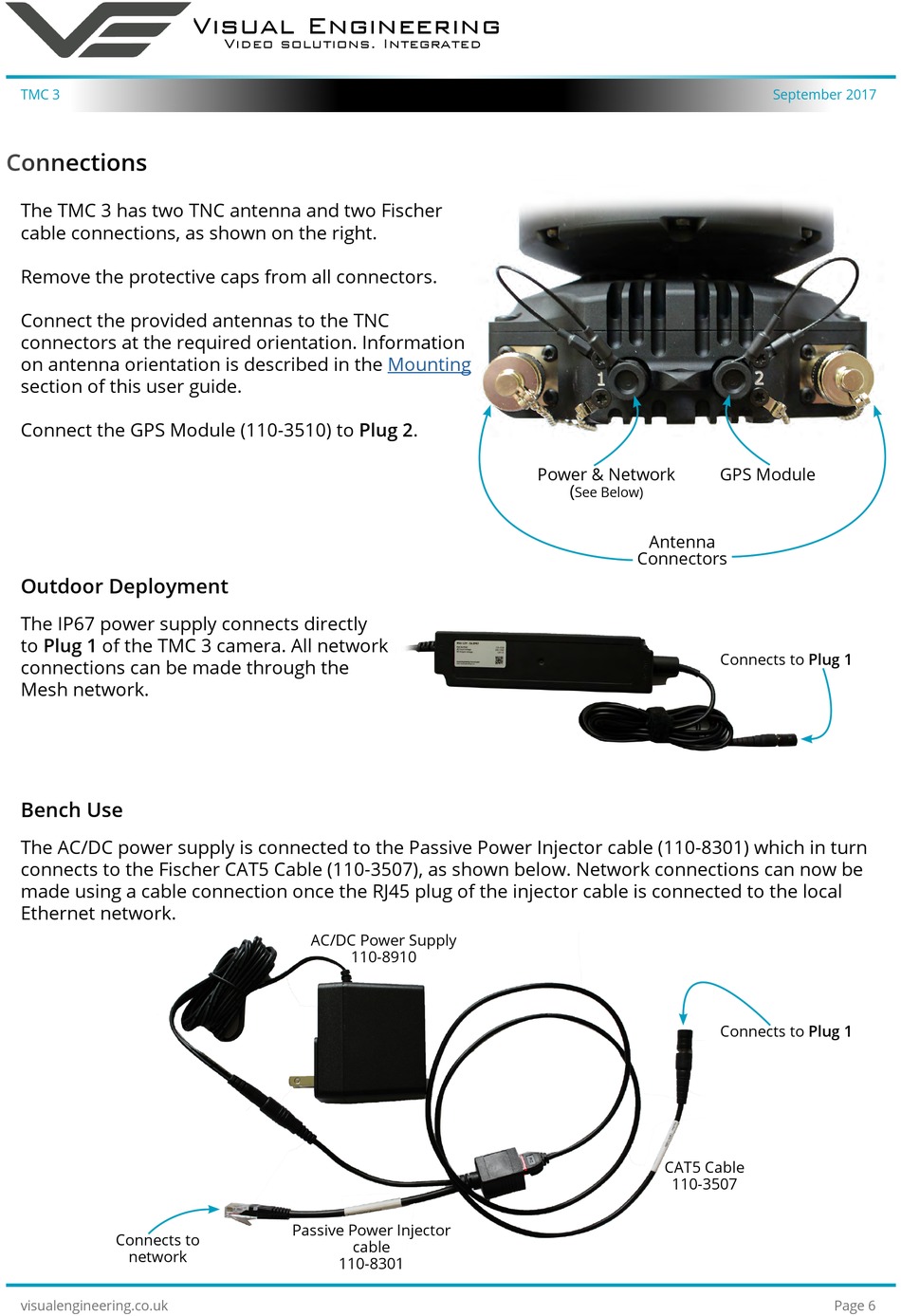

Connections
The TMC 3 has two TNC antenna and two Fischer
cable connections, as shown on the right.
Remove the protective caps from all connectors.
Connect the provided antennas to the TNC
connectors at the required orientation. Information
on antenna orientation is described in the
section of this user guide.
Connect the GPS Module (110-3510) to Plug 2.
Outdoor Deployment
The IP67 power supply connects directly
to Plug 1 of the TMC 3 camera. All network
connections can be made through the
Mesh network.
Bench Use
The AC/DC power supply is connected to the Passive Power Injector cable (110-8301) which in turn
connects to the Fischer CAT5 Cable (110-3507), as shown below. Network connections can now be
made using a cable connection once the RJ45 plug of the injector cable is connected to the local
Ethernet network.
Connects to
network
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
AC/DC Power Supply
110-8910
Passive Power Injector
cable
110-8301
Mounting
Power & Network
GPS Module
(
See Below)
Antenna
Connectors
Connects to Plug 1
Connects to Plug 1
CAT5 Cable
110-3507
