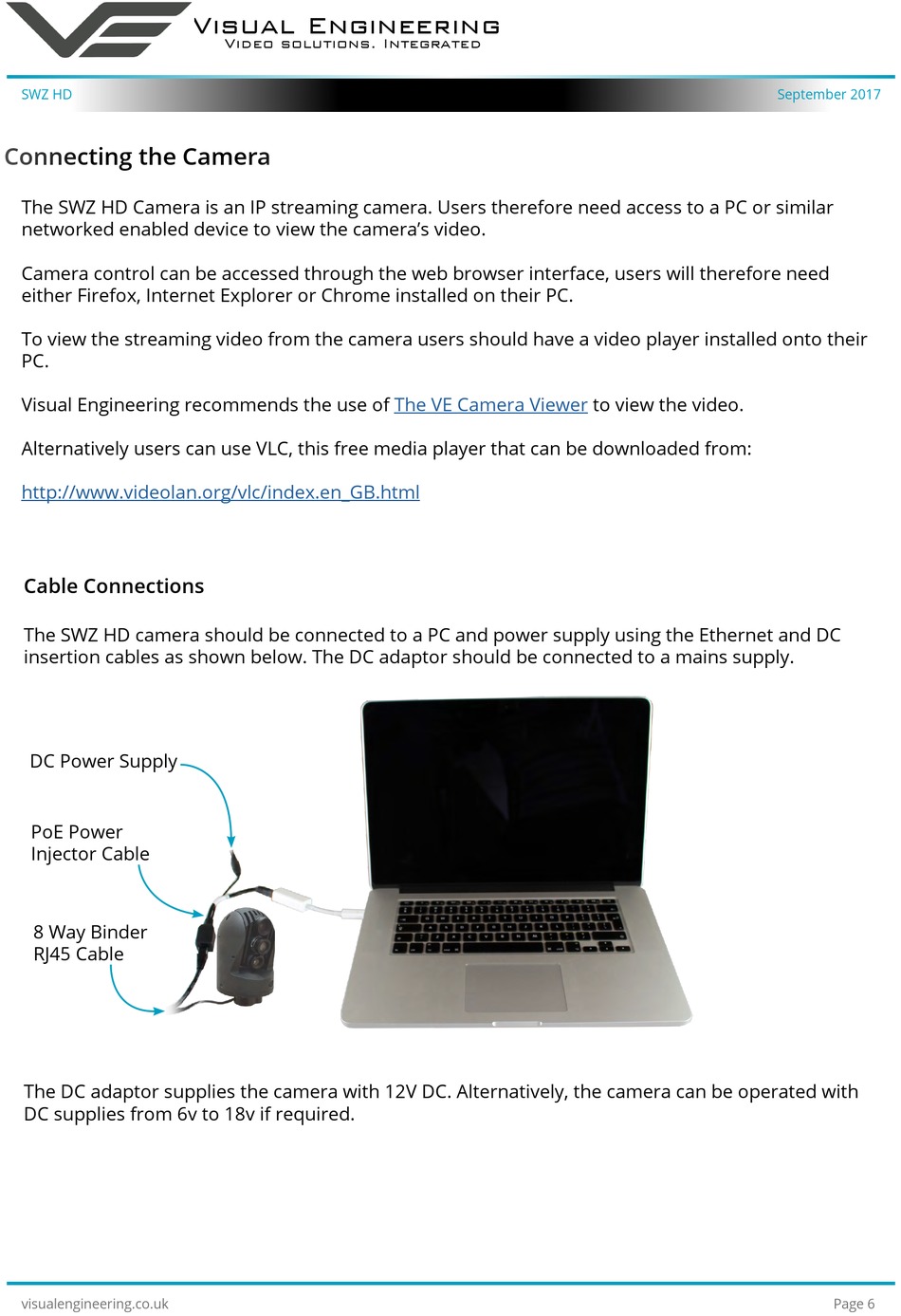

Connecting the Camera

The SWZ HD Camera is an IP streaming camera. Users therefore need access to a PC or similar
networked enabled device to view the camera's video.
Camera control can be accessed through the web browser interface, users will therefore need
either Firefox, Internet Explorer or Chrome installed on their PC.
To view the streaming video from the camera users should have a video player installed onto their
PC.
Visual Engineering recommends the use of
Alternatively users can use VLC, this free media player that can be downloaded from:
http://www.videolan.org/vlc/index.en_GB.html

Cable Connections

The SWZ HD camera should be connected to a PC and power supply using the Ethernet and DC
insertion cables as shown below. The DC adaptor should be connected to a mains supply.
DC Power Supply
PoE Power
Injector Cable
8 Way Binder
RJ45 Cable
The DC adaptor supplies the camera with 12V DC. Alternatively, the camera can be operated with
DC supplies from 6v to 18v if required.
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
The VE Camera Viewer to view the video.
