MFR 4K March 2020

Connections

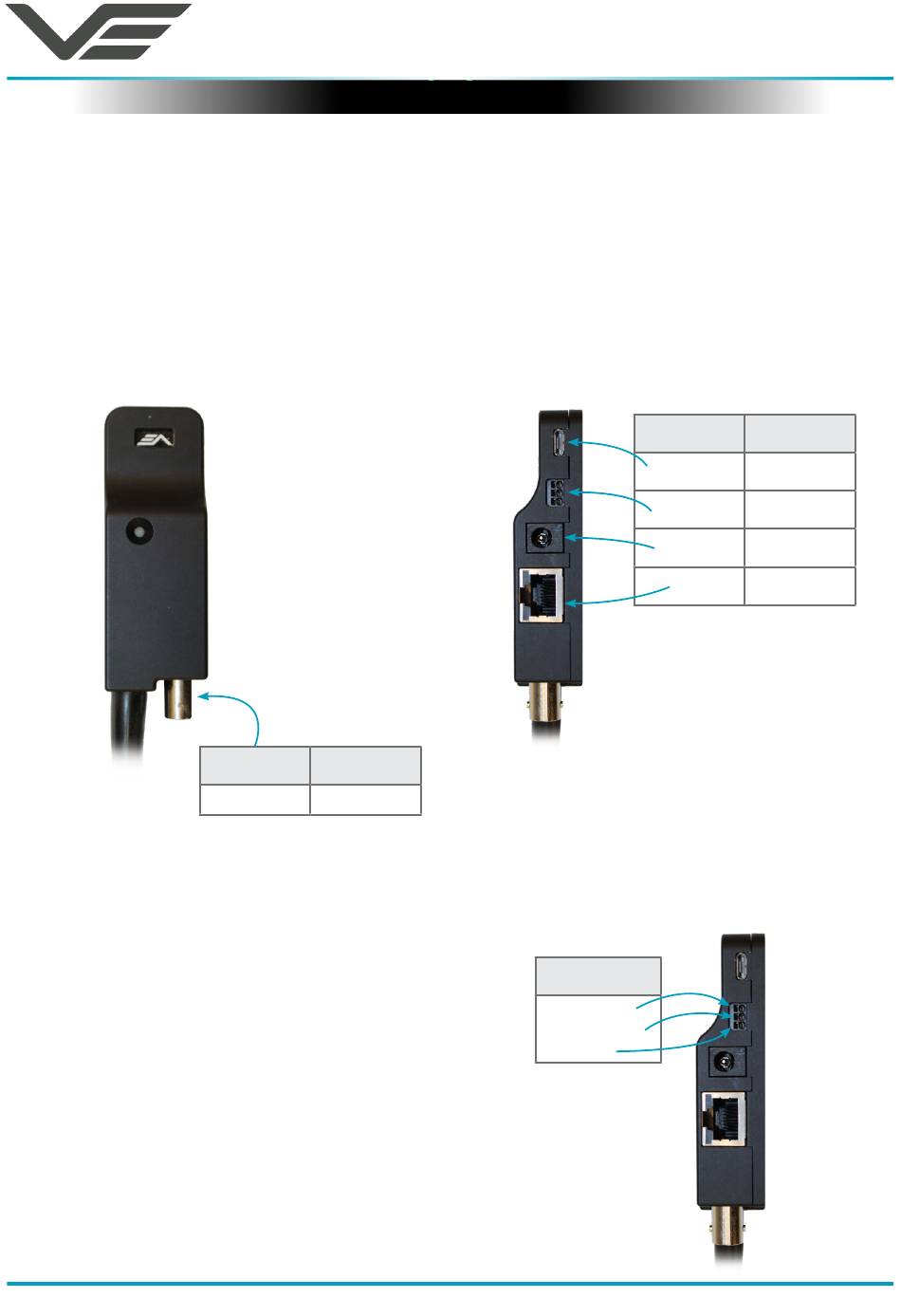

The MFR 4K kit includes a power comms break out cable, part number 110-3562.
The cable assembly connects to the Fischer MiniMax connector on the base of the camera.
All signals are then split out to their relevant connectors.
The connections are described below.
Connector Signal
Micro USB Comms
EXT 232 232 Comms
DC Coax Power
RJ45 Unused
Connector Signal
BNC Unused
MFR 4K communications are supported via the micro
RS232 Comms
USB and the EXT 232 connectors.
RX (to cam)
The EXT 232 connector supports RS232 comms, the TX (from cam)
pinout of the connector is described on the right. GND
visualengineering.co.uk Page 5
