MFR

Connections

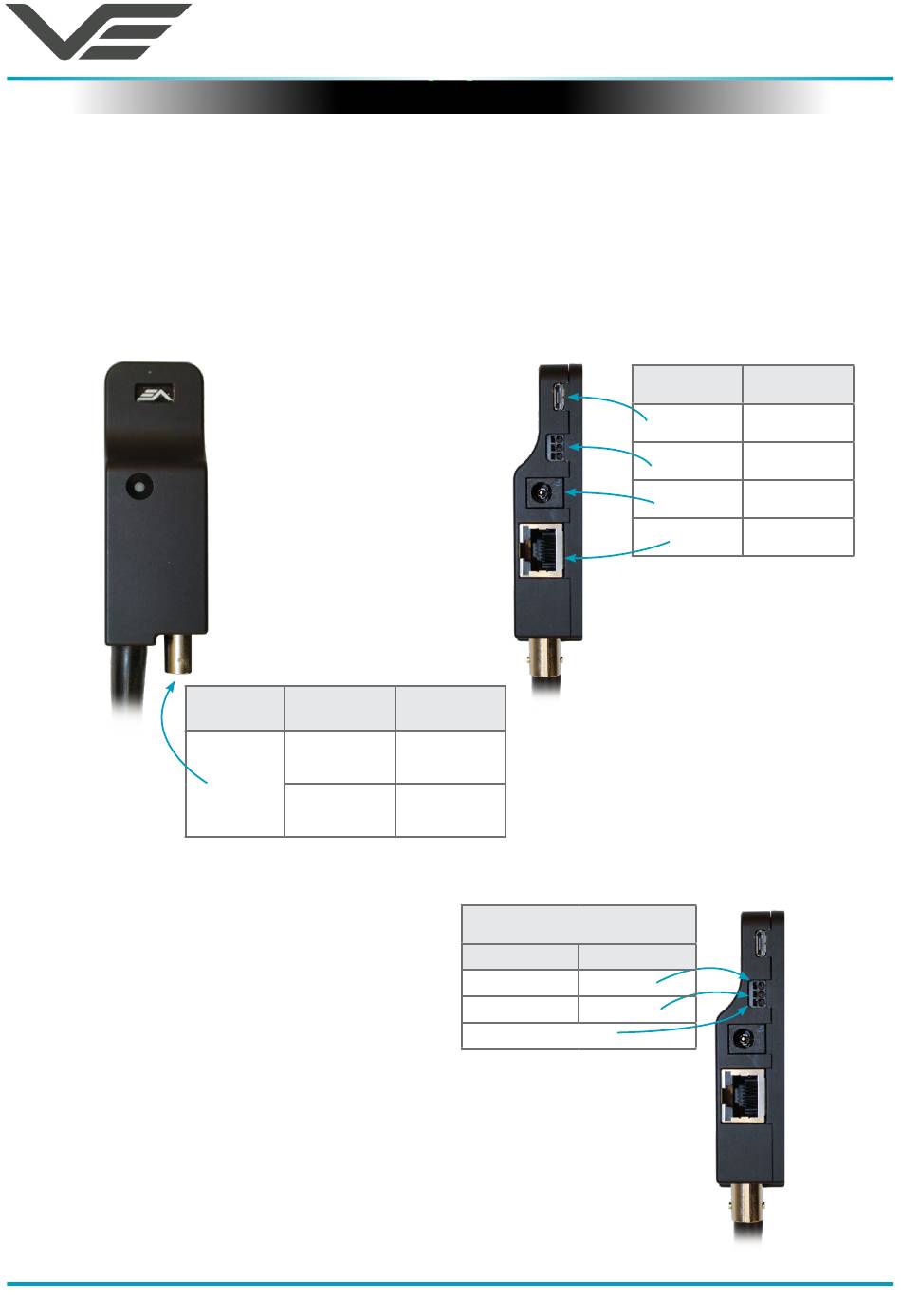

The MFR kit includes a power comms break out cable, part number 110-3562.
The cable assembly connects to the Fischer MiniMax connector on the base of the camera.
All signals are then split out to their relevant connectors. The connections are described below.
MFR communications are supported via the
micro USB and EXT 232/485 connectors.
The EXT 232/485 connector supports RS232 and
RS485 comms, the pinout of the connector is
described on the right.
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
Connector
Signal
HD-SDI
BNC
CVBS
Camera
Type
HD Optical
Thermal &
SD Optical
EXT 232/485 Pinout
RS232
RX (to cam)
TX (from cam)
GND
Connector
Signal
Micro USB
Comms
EXT 232/485
RS232/485
DC Coax
Power
RJ45
*Ethernet
* Only active if the MFR
includes an IP encoder.
RS485
B
A
August 2020
Page 7
