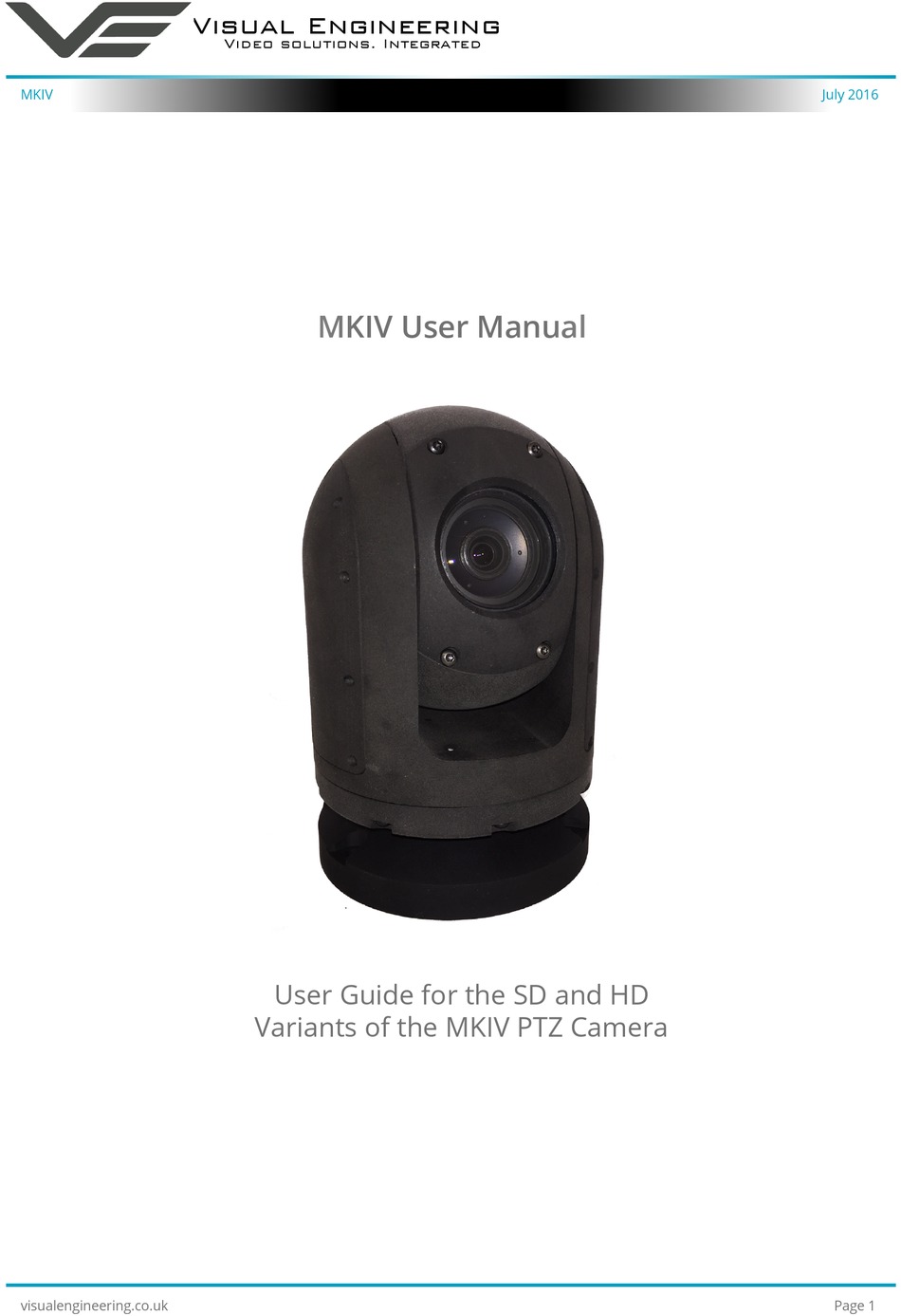

Visual Engineering Video solutions. Integrated MKIV July 2016 MKIV User Manual User Guide for the SD and HD Variants of the MKIV PTZ Camera visualengineering.co.uk Page 1...
Visual Engineering Video solutions. Integrated MKIV July 2016 Change History Version Date Change Summary Author v1.0 4/7/2016 Initial draft based on quick start guide visualengineering.co.uk Page 3...
The VE part number for this manual is 110-8992 Warranty and Support All Visual Engineering products are supplied as standard with a 12 month ‘Return to Base’ warranty. In the event of a suspected product failure, users should contact the Visual Engineering support team on the telephone number +44 (0) 1206 211842 or please email us at: support@visualengineering.co.uk...
The kit includes a SD or HD variant of the MKIV camera. The kit also contains the interconnect cable and a mains power supply with a range of wall connectors. The kit contents are listed below, along with their part numbers. • MKIV H - HD PTZ Camera 110-8976 • MKIV D - SD PTZ Camera 110-8926 •...
Both the HD and SD variants of the MKIV camera have a 12 pin Binder male which carries all power and control signals. The MKIV H also has a BNC female connector for the HD-SDI video out signal. The image on the right shows the camera’s 12 pin Binder male connector.
Visual Engineering Video solutions. Integrated MKIV July 2016 Configuring the Camera The MKIV can be configured for a specific user profile, to include; video output format, communications format & camera control protocol. Once configured the camera will remember these settings.
Visual Engineering Video solutions. Integrated MKIV July 2016 • Now type 3 for the Protocol options. The current protocol is displayed in brackets. • On the example menu shown here, option 02 (Visca) is currently active. • Select a different protocol by typing the number of the new option.
The user may choose to use a software controller of their choice or use the VE Camera Controller. This software application is included on the USB memory stick in the kit. It can also be downloaded from the Visual Engineering website: www.visualengineering.co.uk/support The user should install the Software application on a PC.
Page 10
Visual Engineering Video solutions. Integrated MKIV July 2016 It is necessary to connect a USB to serial comms lead to the PC. The operating system of the computer will allocate this a COM port number. Once this connection between the comms lead and the computer’s operating system has been made the user can go ahead and connect the application to the COM port.
Visual Engineering Video solutions. Integrated MKIV July 2016 Connections Both the MKIV H and MKIV D cameras have a 12 Pin Binder Connector Pinout 12 pin Binder connector that carries all power and comms signals. Signal The pinout for this connector is detailed in the +12v DC table on the right.
