Connections - visual engineering SWZ User Manual

SWZ

Connections

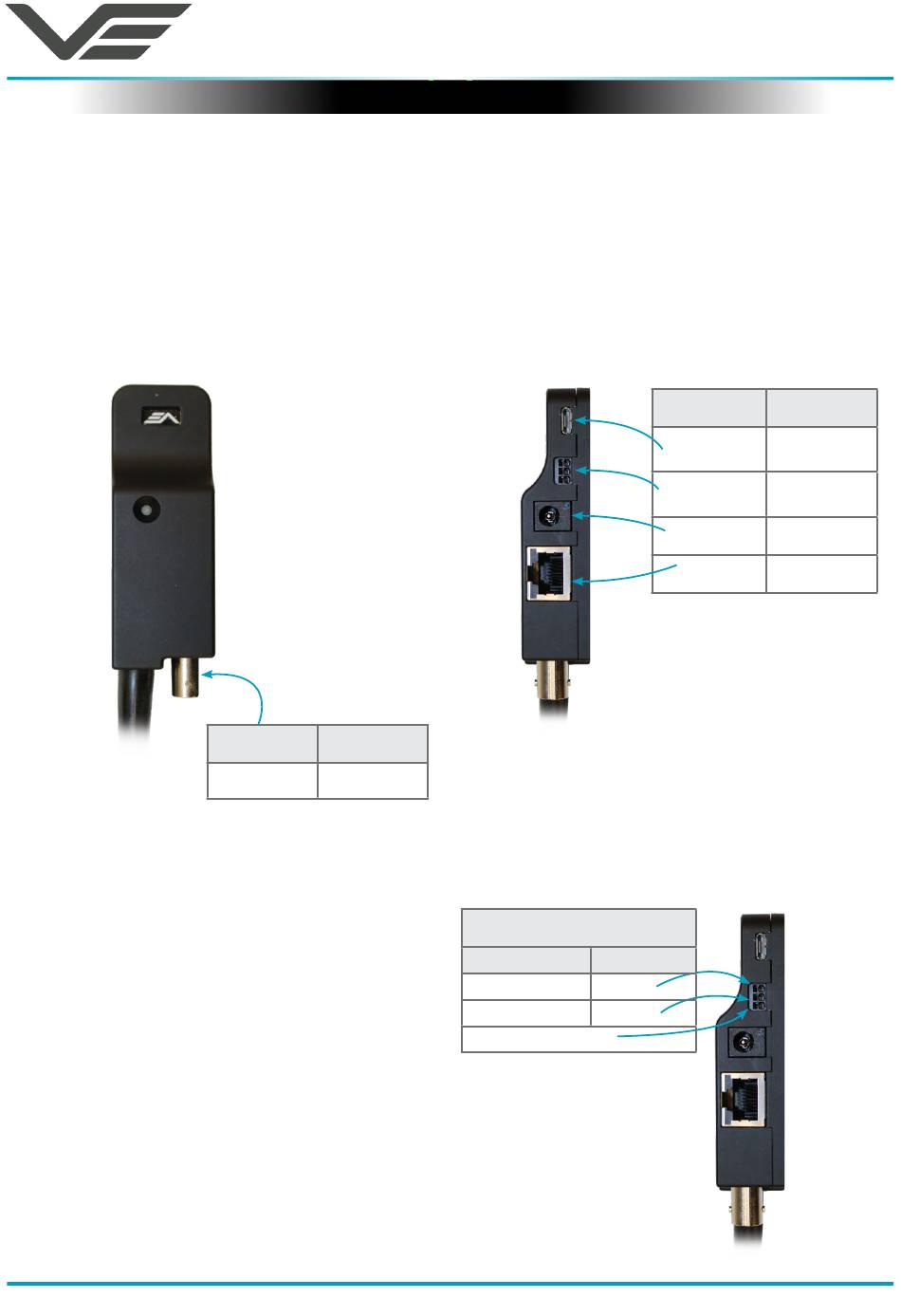

The SWZ kit includes a power comms break out cable, part number 110-3562.
The cable assembly connects to the Fischer MiniMax connector on the base of the camera.
All signals are then split out to their relevant connectors.
The connections are described below.
SWZ communications are supported via the micro
USB and EXT 232/485 connectors.
The EXT 232/485 connector supports RS232 and
RS485 comms, the pinout of the connector is
described on the right.
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
Connector Signal
BNC CVBS
EXT 232/485 Pinout
RS232 RS485
RX (to cam) B
TX (from cam) A
GND
November 2018
Connector Signal
Serial
Micro USB
Comms
RS232/485
EXT 232/485
Comms
DC Coax Power
RJ45 Unused
Page 6
