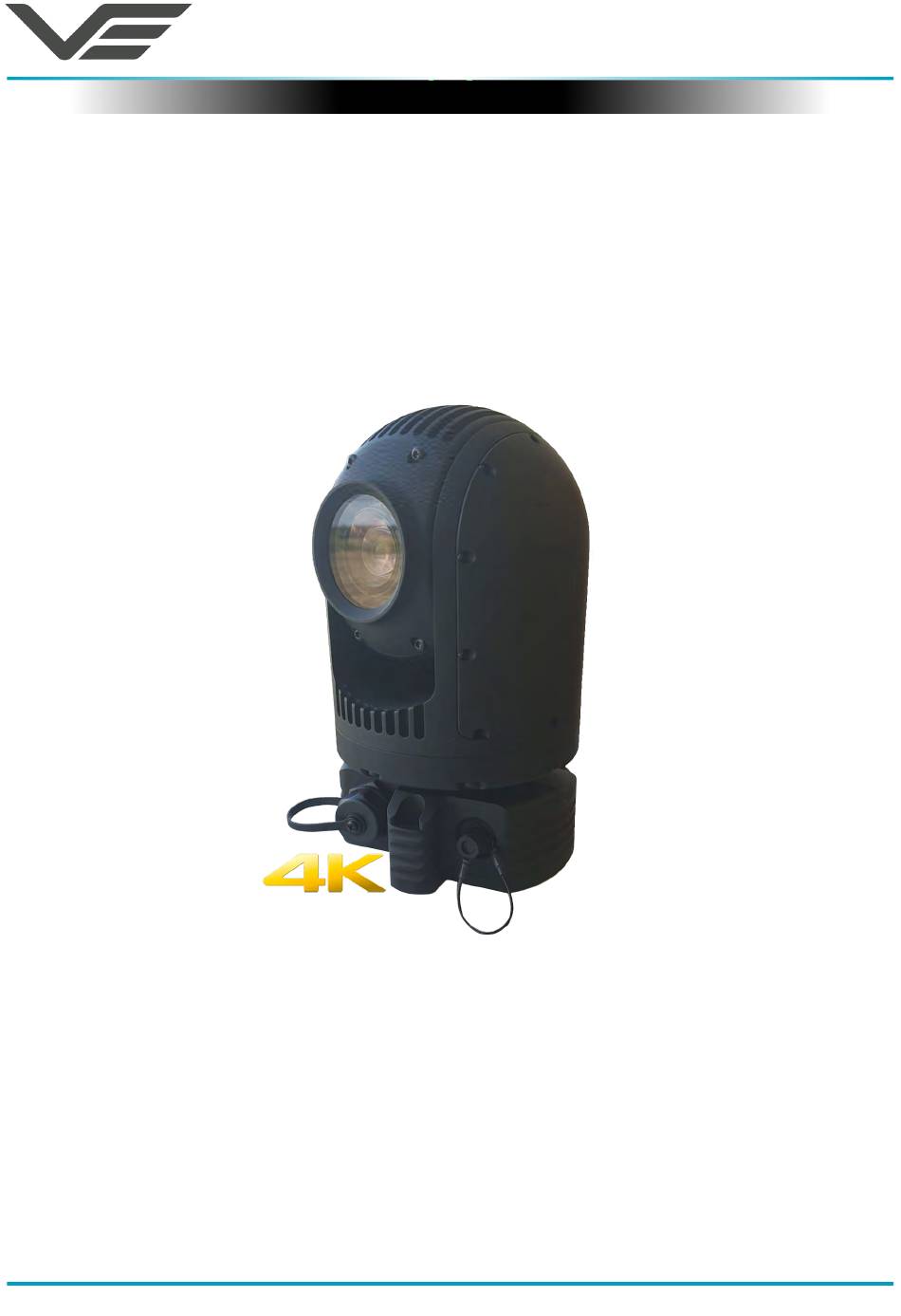

- Page 1 Visual Engineering Video solutions. Integrated MFR 4K March 2020 MFR 4K User Guide for the MFR 4K PTZ Camera visualengineering.co.uk Page 1...
-
Page 2: Table Of Contents
Visual Engineering Video solutions. Integrated MFR 4K March 2020 Table of Contents Change History ............... . . 3 Warranty and Support . -
Page 3: Change History
Sub-Zero Start Up Update Warranty and Support All Visual Engineering products are supplied as standard with a 12 month ‘Return to Base’ warranty. Please note: Any unauthorised product disassembly, modification or the removal of tamper proof labels will void the warranty. -
Page 4: Introduction

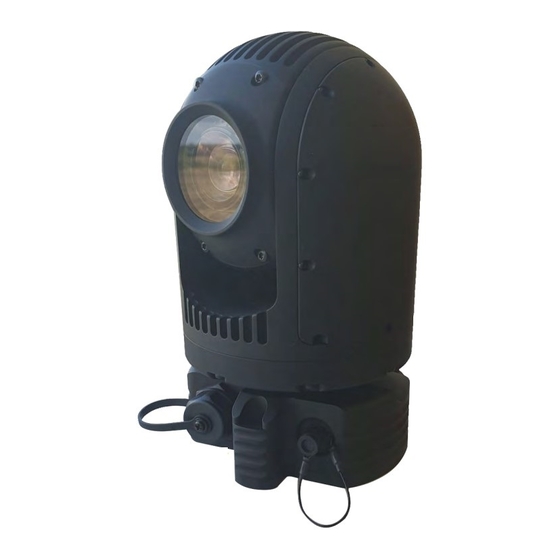

March 2020 Introduction The MFR 4K is a very rugged PTZ camera environmentally sealed for use in harsh environments. It incorporates a camera with a 4x Full HD resolution and a 20x optical zoom lens supporting a 70° wide angle of view. -
Page 5: Connections
March 2020 Connections The MFR 4K kit includes a power comms break out cable, part number 110-3562. The cable assembly connects to the Fischer MiniMax connector on the base of the camera. All signals are then split out to their relevant connectors. -
Page 6: On Screen Display
If a camera is suspected of having a compromised air tight seal it may be necessary to repeat the purge process. In this instance contact Visual Engineering on how to proceed: support@visualengineering.co.uk visualengineering.co.uk Page 6... -
Page 7: Sub-Zero Start Up
March 2020 Sub-Zero Start Up The MFR 4K camera has an internal heating system so if it is switched on in sub-zero temperatures it will start up in a controlled method so as to ensure reliable operation. Powering on in sub-zero temperatures If the MFR 4K camera is powered on at temperatures below -15°C the primary and secondary... -
Page 8: Configuring The Camera
March 2020 Configuring the Camera The MFR 4K can be configured for a specific user profile, to include; communications settings, motor control and video format. Once configured the camera will retain the settings. The camera is configured using a menu structure on its control interface which is only accessible at power on. -
Page 9: Motor Options
Visual Engineering Video solutions. Integrated MFR 4K March 2020 Motor Options Motor Options Sub Menu Description Options Whether the camera automatically corrects Auto Position its actual position if external forces Disabled, Enabled Correction act upon it Stall Detection Detects a stall in the motor drive... -
Page 10: Software Control
March 2020 Software Control The MFR 4K camera’s serial communication supports PelcoD, PelcoP & Sony Visca protocols. The user may choose to use a software controller of their choice or use the VE Camera Controller. This software application can be downloaded from the Visual Engineering website: www.visualengineering.co.uk/supportdownload/9... - Page 11 In the example below the pan right command has been selected. This will cause the MFR 4K camera to pan right. Similar commands for pan left, tilt up & down and zoom functions can also be tried out using the intuitive software user interface.
-
Page 12: Specifications
Visual Engineering Video solutions. Integrated MFR 4K March 2020 Specifications Specifications QFHD Resolution 2160p/29.97, 2160p/25 Purge Type Dry Air or Nitrogen FHD Resolution 1080p/59.94, 1080p/50 Video Interface HDMI Sensor Control Protocol 1/2.5 Type CMOS Visca, PelcoD Pixels 8.51M Pan & Tilt Range 270°... -
Page 13: Dimensions
Visual Engineering Video solutions. Integrated MFR 4K March 2020 Dimensions ø 115 mm Visual Engineering Technologies LTD Kemps Farm Stanway Colchester Essex Tel: +44 (0)1206 211842 CO3 8NB Web: www.visualengineering.co.uk Email: sales@visualengineering.co.uk visualengineering.co.uk Page 13...
