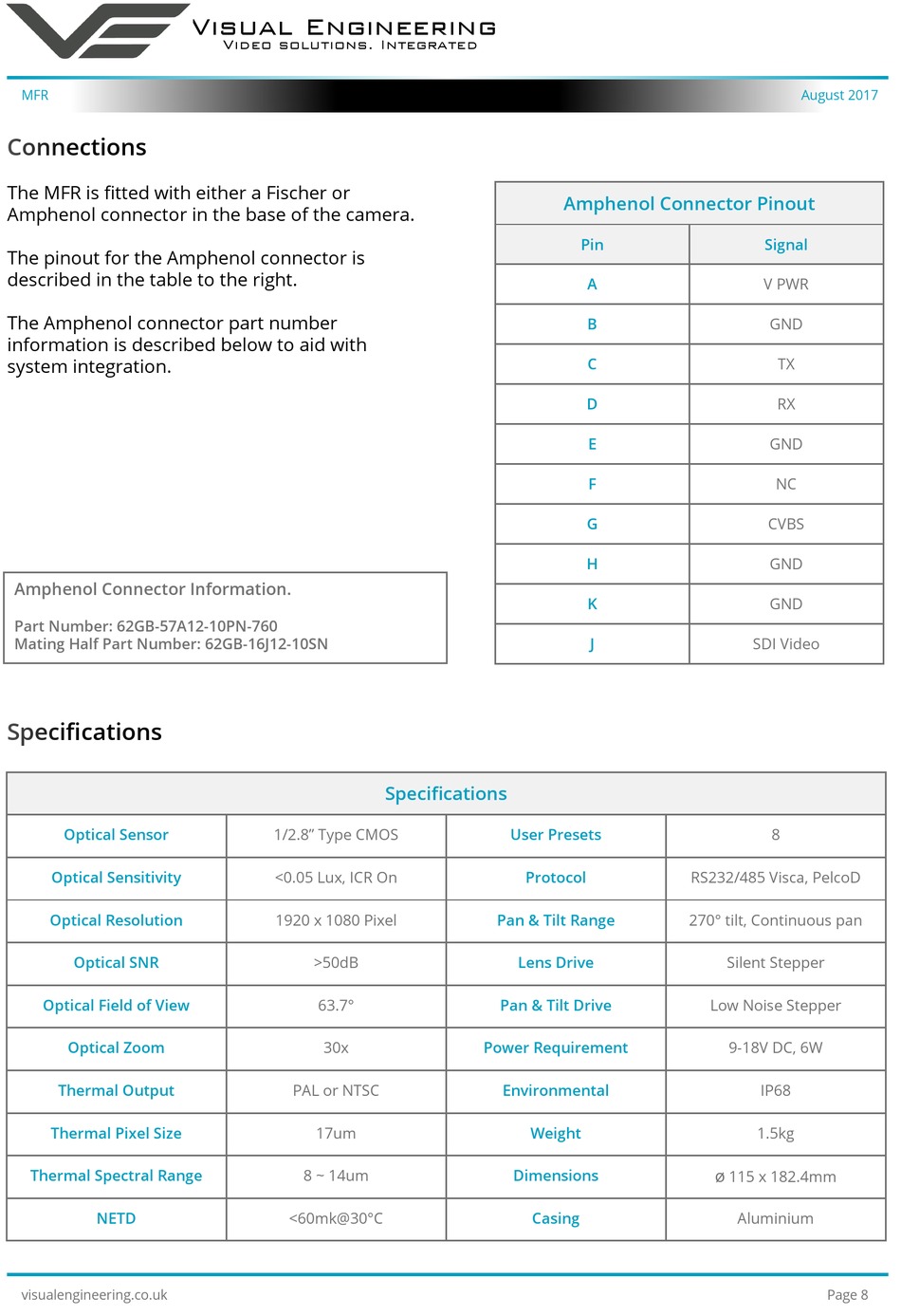

Connections

The MFR is fitted with either a Fischer or
Amphenol connector in the base of the camera.
The pinout for the Amphenol connector is
described in the table to the right.
The Amphenol connector part number
information is described below to aid with
system integration.
Amphenol Connector Information.
Part Number: 62GB-57A12-10PN-760
Mating Half Part Number: 62GB-16J12-10SN

Specifications

Optical Sensor
Optical Sensitivity
Optical Resolution
Optical SNR
Optical Field of View
Optical Zoom
Thermal Output
Thermal Pixel Size
Thermal Spectral Range
NETD
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
1/2.8" Type CMOS
<0.05 Lux, ICR On
1920 x 1080 Pixel
>50dB
63.7°
30x
PAL or NTSC
17um
8 ~ 14um
<60mk@30°C
Specifications
User Presets
Protocol
Pan & Tilt Range
Lens Drive
Pan & Tilt Drive
Power Requirement
Environmental
Weight
Dimensions
Casing
Amphenol Connector Pinout
Pin
A
B
C
D
E
F
G
H
K
J
RS232/485 Visca, PelcoD
270° tilt, Continuous pan
Silent Stepper
Low Noise Stepper
9-18V DC, 6W
ø
115 x 182.4mm
August 2017
Signal
V PWR
GND
TX
RX
GND
NC
CVBS
GND
GND
SDI Video
8
IP68
1.5kg
Aluminium
