MFR

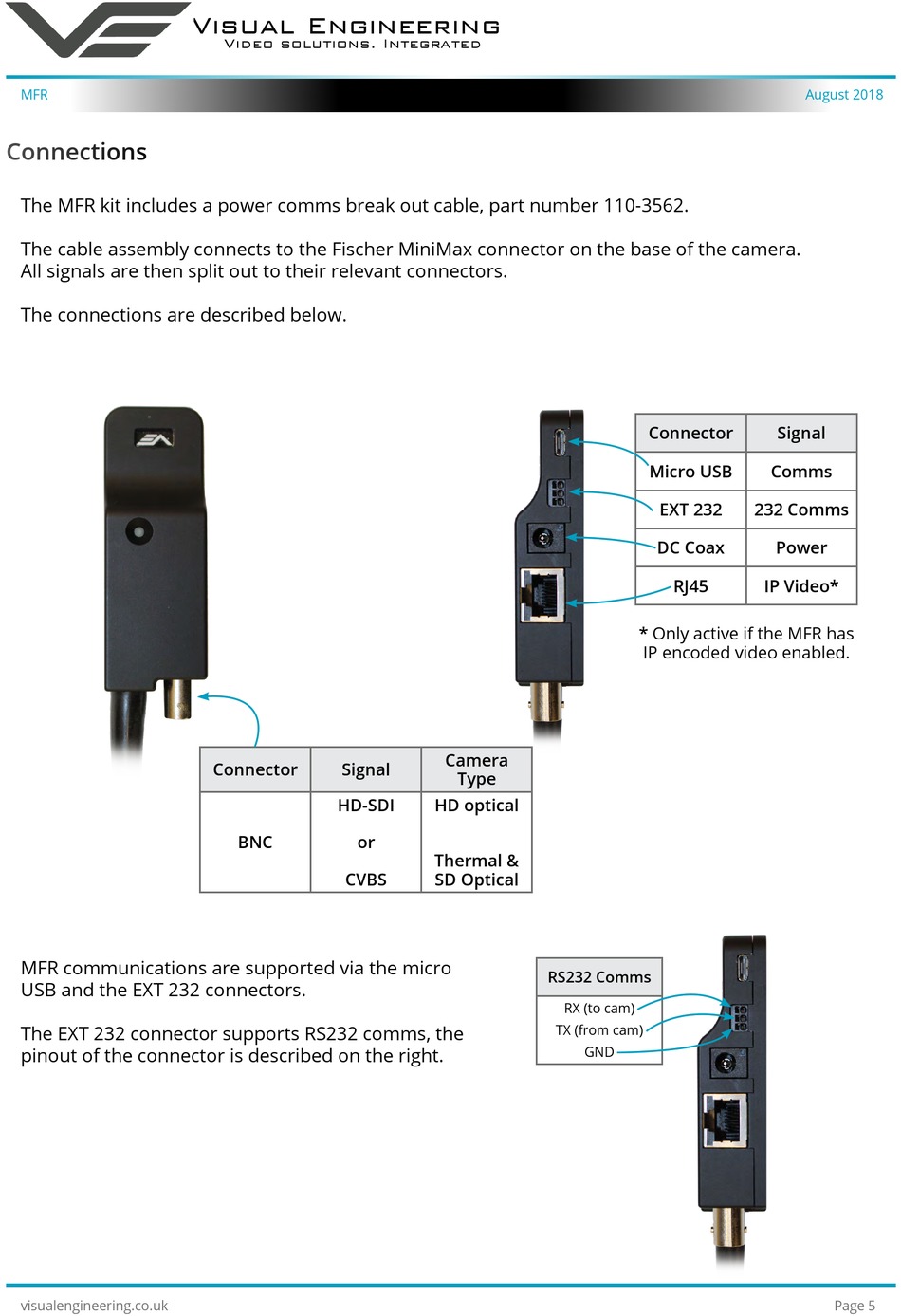

Connections

The MFR kit includes a power comms break out cable, part number 110-3562.
The cable assembly connects to the Fischer MiniMax connector on the base of the camera.
All signals are then split out to their relevant connectors.
The connections are described below.
MFR communications are supported via the micro
USB and the EXT 232 connectors.
The EXT 232 connector supports RS232 comms, the
pinout of the connector is described on the right.
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
Connector
Signal
HD-SDI
BNC
or
CVBS
Camera
Type
HD optical
Thermal &
SD Optical
RS232 Comms
RX (to cam)
TX (from cam)
GND
August 2018
Connector
Signal
Micro USB
Comms
EXT 232
232 Comms
DC Coax
Power
RJ45
IP Video*
* Only active if the MFR has
IP encoded video enabled.
Page 5
