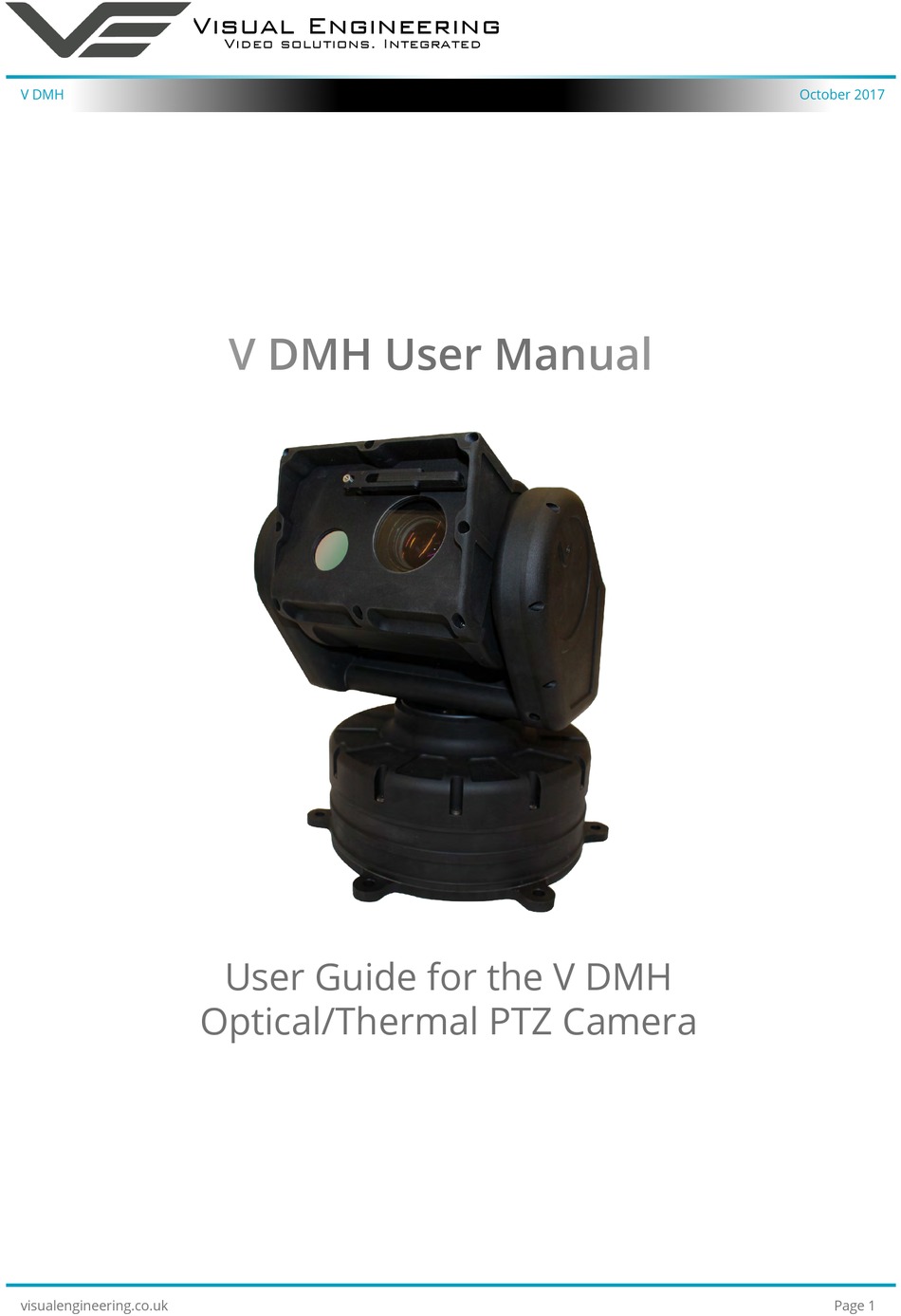

- Page 1 Visual Engineering Video solutions. Integrated V DMH October 2017 V DMH User Manual User Guide for the V DMH Optical/Thermal PTZ Camera visualengineering.co.uk Page 1...
-
Page 2: Table Of Contents
Visual Engineering Video solutions. Integrated V DMH October 2017 Table of Contents Table of Contents ............... 2 Change History . -
Page 3: Change History
Existing Support Articles Compiled Warranty and Support All Visual Engineering products are supplied as standard with a 12 month ‘Return to Base’ warranty. Please note: Any unauthorised product disassembly, modification or the removal of tamper proof labels will void the warranty. -
Page 4: Introduction
V DMH October 2017 Introduction The V DMH is a fully IP67 sealed weather proof pan, tilt and zoom camera with internal heating and a rain/dust wiper. The whole camera is extremely rugged and is designed specifically for high vibration environments such as large robotic or military vehicles. -
Page 5: Configuring The Camera
October 2017 Configuring the Camera The V DMH can be configured for a specific user profile, to include; communications, motor and camera settings. Once configured the camera will remember these settings. The camera is configured using a menu structure on its control interface which is only accessible at power on. -
Page 6: Camera Options
Software Control The V DMH camera supports serial communication control over RS232 and RS485. It supports PelcoD, PelcoP & Sony Visca protocols. The user may choose to use a software controller of their choice or use the VE Camera Controller. - Page 7 In the example below the pan right command has been selected. This will cause the V DMH camera to pan right. Similar commands for pan left, tilt up & down and zoom functions can also be tried out using the intuitive software user interface.
-
Page 8: Pinout
Video solutions. Integrated V DMH October 2017 Pinout The V DMH is fitted with an Amphenol connector in the base of the Amphenol Connector camera. The pinout for the Amphenol connector is described in the table on the right. Signal... -
Page 9: Dimensions
Visual Engineering Video solutions. Integrated V DMH October 2017 Dimensions Overall Dimensions 200 mm visualengineering.co.uk Page 9... -
Page 10: Base Plate Hole Centres
Visual Engineering Video solutions. Integrated V DMH October 2017 Base Plate Hole Centres Visual Engineering Technologies LTD Kemps Farm Stanway Colchester Essex Tel: +44 (0)1206 211842 CO3 8NB Web: www.visualengineering.co.uk Email: sales@visualengineering.co.uk visualengineering.co.uk Page 10...
