ESIE19-06 | Part 5. Appendix

5.1. Field setting

5.1.1. HRV unit

5.1.1.1. Configuration

The settings (format: XX(XX)-X-XX), for example 19(29)-1-02, that are used in this chapter are composed of 3 parts, divided by "-":
• Mode number: for example, 19(29), where 19 is the mode number for group settings and 29 is the mode number for individual settings
• Switch number: for example, 1
• Position number: for example, 02
Operating procedure
You can use either the user interface of the Modular L Smart or of the air conditioner to adjust the heat reclaim ventilation unit settings.
Initial settings
• Mode numbers 17, 18 and 19: group control of Modular L Smart.
• Mode numbers 27, 28 and 29: individual control
To change the settings with BRC1E53
Make sure that the switch box lids on the Modular L Smart are closed.
1. Shortly press a button to turn on the screen light.
2. Press and hold the Cancel button (a) for at least 4 seconds to enter the Service Settings menu.
3. Go to Field Settings with the Up/Down buttons and press the Menu/Enter button (b).
4. Press the Left/Right buttons to highlight the number under Mode.
5. Press the Up/Down buttons to select the required mode number.
Result: Depending on the mode number that you select, starting at 20, you will also have to select a unit number, for the individual control.
6. Use the Left/Right buttons to highlight the number under Unit No.
7. Use the Up/Down buttons to select a HRV unit number. Selecting a unit number is NOT necessary when you are configuring the entire group.
8. Use the Left/Right buttons to select a position number (0 to 15) for the switch number that you want to change.

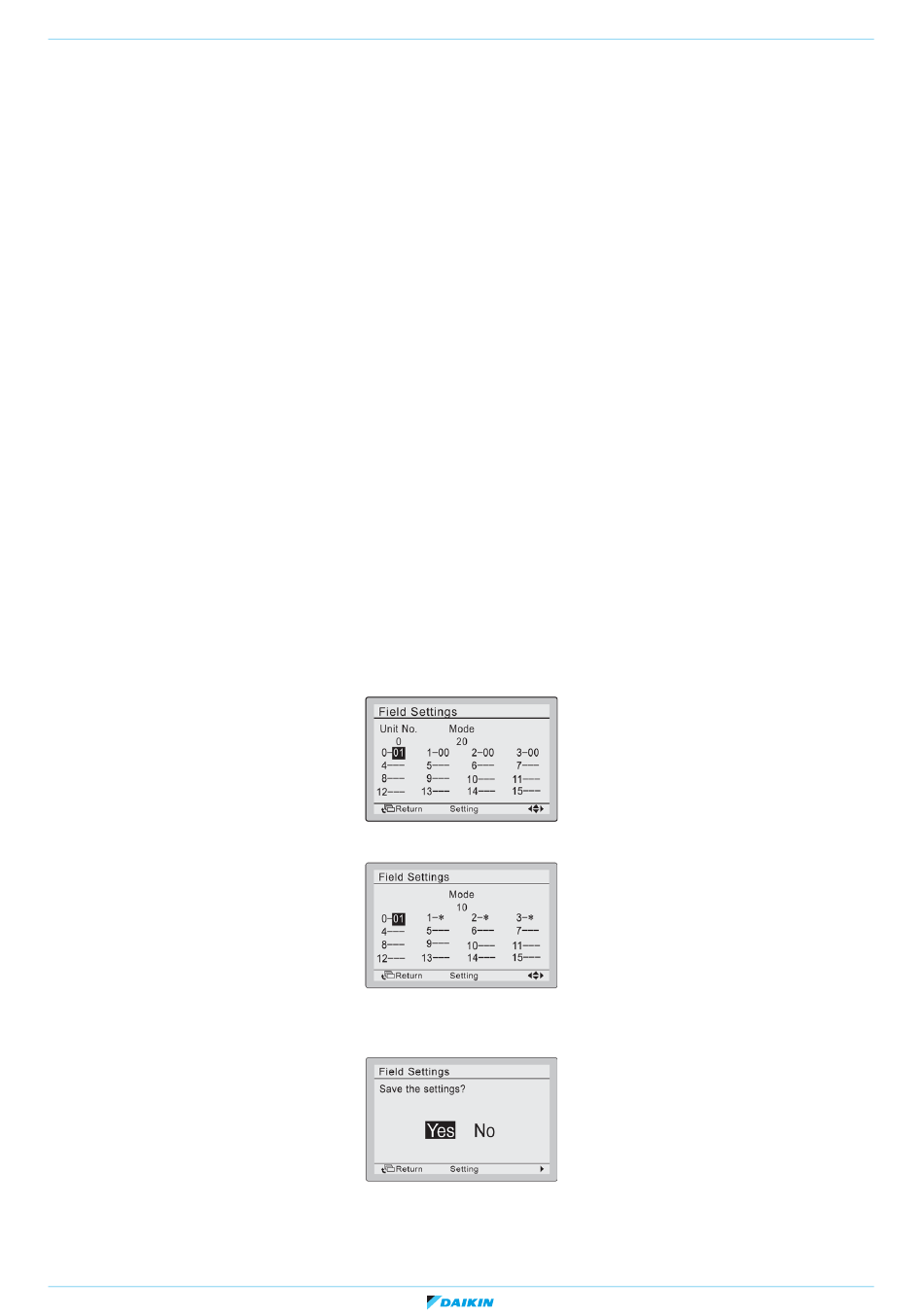

In case of individual settings:
In case of group settings:
9. Use the Up/Down buttons to select the required position.
10. Press the Menu/Enter (b) button and confirm the selection with Yes.
