Wiring Diagram; Hrv Unit; Legend; Unit Layout - Daikin Modular L Smart Service Manual

ESIE19-06 | Part 5. Appendix

5.2. Wiring diagram

5.2.1. HRV unit

5.2.1.1. Legend

5.2.1.2. Unit layout

Right connection
4
ROOM AIR
SUPPLY AIR
1

5.2.1.3. Power supply and fan-S fan-R size 02 to 05

Q1DI (EXTERNAL)
UNIT SIZE
2P - 230...400Vac - 13A - type F - "C" - 10kA -
02 to 05
I =300mA
2P - 230...400Vac - 16A - type F - "C" - 10kA - -
06 & 07
I =300mA
UNIT SIZE N°. FANS & AMPS MAX UNIT AMPS
02 2 x (1,35A) 2,9A
03 - 04 2 x (2,2A) 4,6A
05 2 x (2,3A) 4,8A
4 x (2,2A)
06 9,0A
07 4 x (2,3A) 9,4A
Page 80
Modular L Smart
Figure 5-13: Legend
Figure 5-14: Unit layout - Bottom view
3
FRESH AIR FRESH AIR
EXHAUST AIR EXHAUST AIR
2

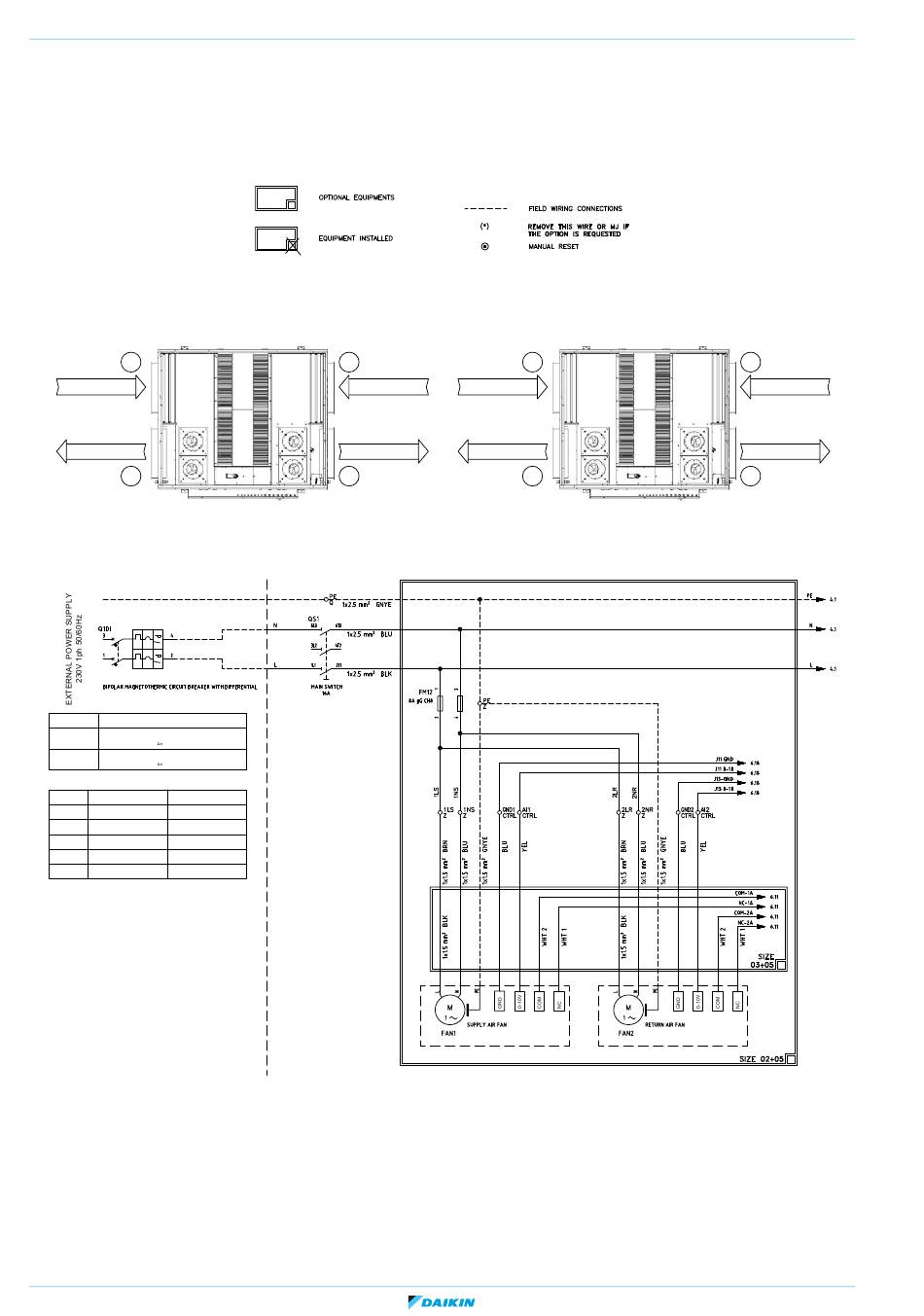

Figure 5-15: Power supply and fan-S fan-R size 02 to 05
Left connection
3
2

5.2. Wiring diagram

4
ROOM AIR
SUPPLY AIR
1
21/01/20 | Version 1.1
