ESIE19-06 | Part 5. Appendix

5.2.1.4. Fan-S fan-R size 06 and 07

5.2.1.5. Control unit board

21/01/20 | Version 1.1
Modular L Smart

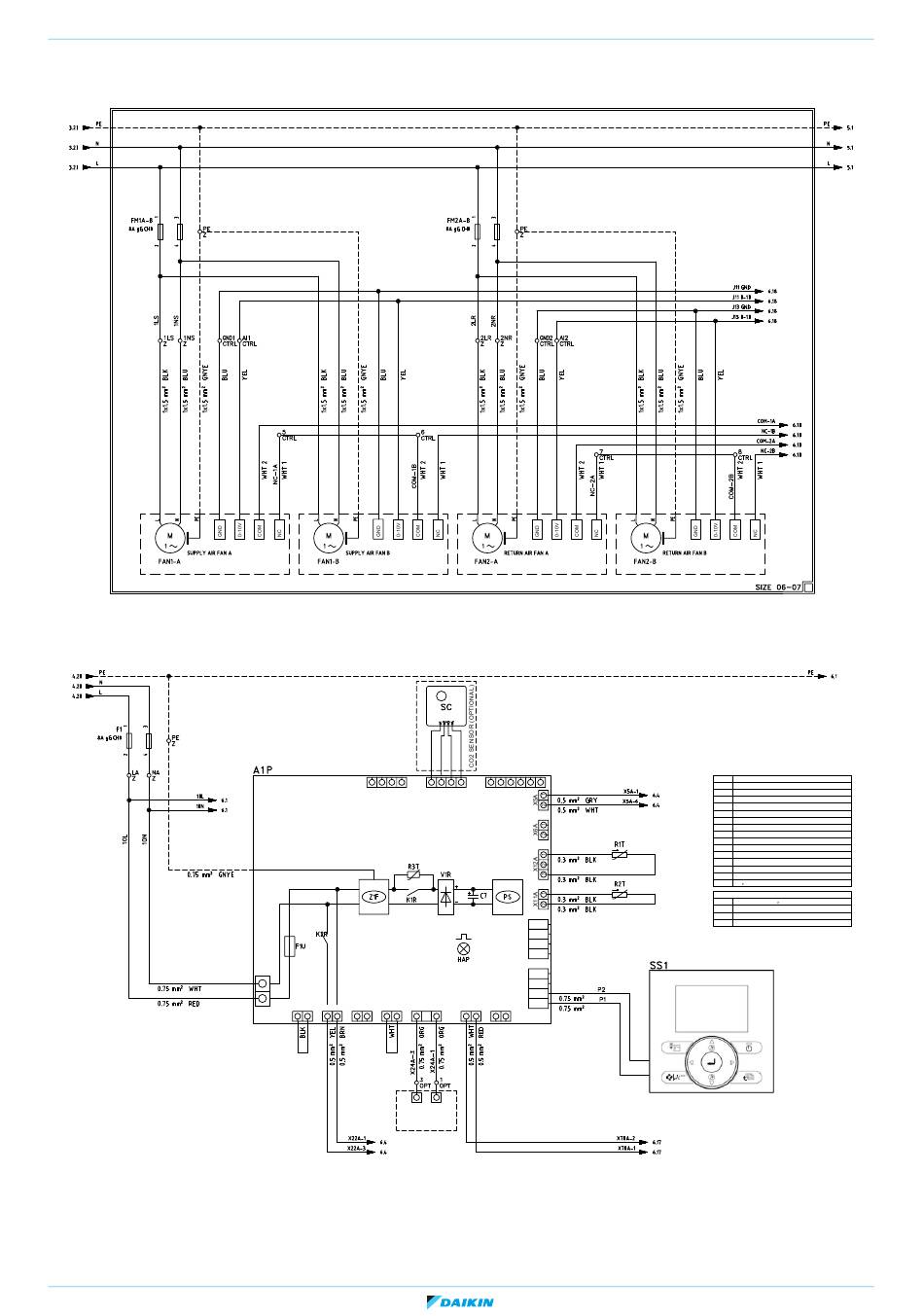

Figure 5-16: Fan-S fan-R size 06 and 07
Figure 5-17: Control unit board
1 2 3 4
X38A
GRN
t°
X27A
N
L
X29A X22A X28A X23A X24A
2 1 3 1 3 1 2 1 3
OPTIONAL
ELECTRIC HEATERS
(ENABLE)
1 2 3 4 1 2 3 4 5 6
X14A X33A
X2M
J3
J2
J1
JC
X1M
F2
F1
N/P2
P/P1
X70A X35A
1 2 1 2 1
5.2. Wiring diagram
A1P PRINTED CIRCUIT BOARD
C7 CAPACITOR
F1U FUSE T, 6.3A 250V
PILOT LAMP (SERVICE MONITOR - GREEN)
HAP
K1R MAGNETIC RELAY
K2R MAGNETIC RELAY
PS SWITCHING POWER SUPPLY
R1T THERMISTOR (INDOOR AIR)
THERMISTOR (OUTDOOR AIR)
R2T
THERMISTOR (PTC)
R3T
X1M TERMINAL
TERMINAL (OUTSIDE INPUT)
X2M
t°
V1R DIODE BRIDGE
Z1F NOISE FILTER
SS1 SELECTOR SWITCH
CO SENSOR (OPTIONAL ACCESSORY)
SC
FOR DETAIL OF CONNECTION SEE ATTACHED MANUAL OF THE OPTION KIT
t° CONNECTOR (CO SENSOR)
X14A
X24A CONNECTOR (OUTSIDE DAMPER)
X33A CONNECTOR (CONTACT PCB)
X35A CONNECTOR (APPENDICES PCB)
P2
P1
