Removing Smart Gateway - Daikin Modular L Smart Service Manual

ESIE19-06 | Part 3. Repair

3.2.1.3. Removing Smart Gateway

PRELIMINARY ACTIONS
1. Switch off the Daikin unit via the user interface.
2. Switch off the Daikin unit with the field supplied circuit breaker.
PROCEDURE
Removal
1. Remove the switchbox cover, refer to
2. Unplug all connectors ACS in, FAN1, FAN2, PS1, PS2, PS3, PS4, DAMP OUT, from the board.
3. Remove clips that fix the board.
4. Remove the main board from the switchbox.
Installation
1. Proceed in reverse order to fix again the Smart Gateway..
Page 44
Modular L Smart
"Basic removal - removing switchbox cover" on page

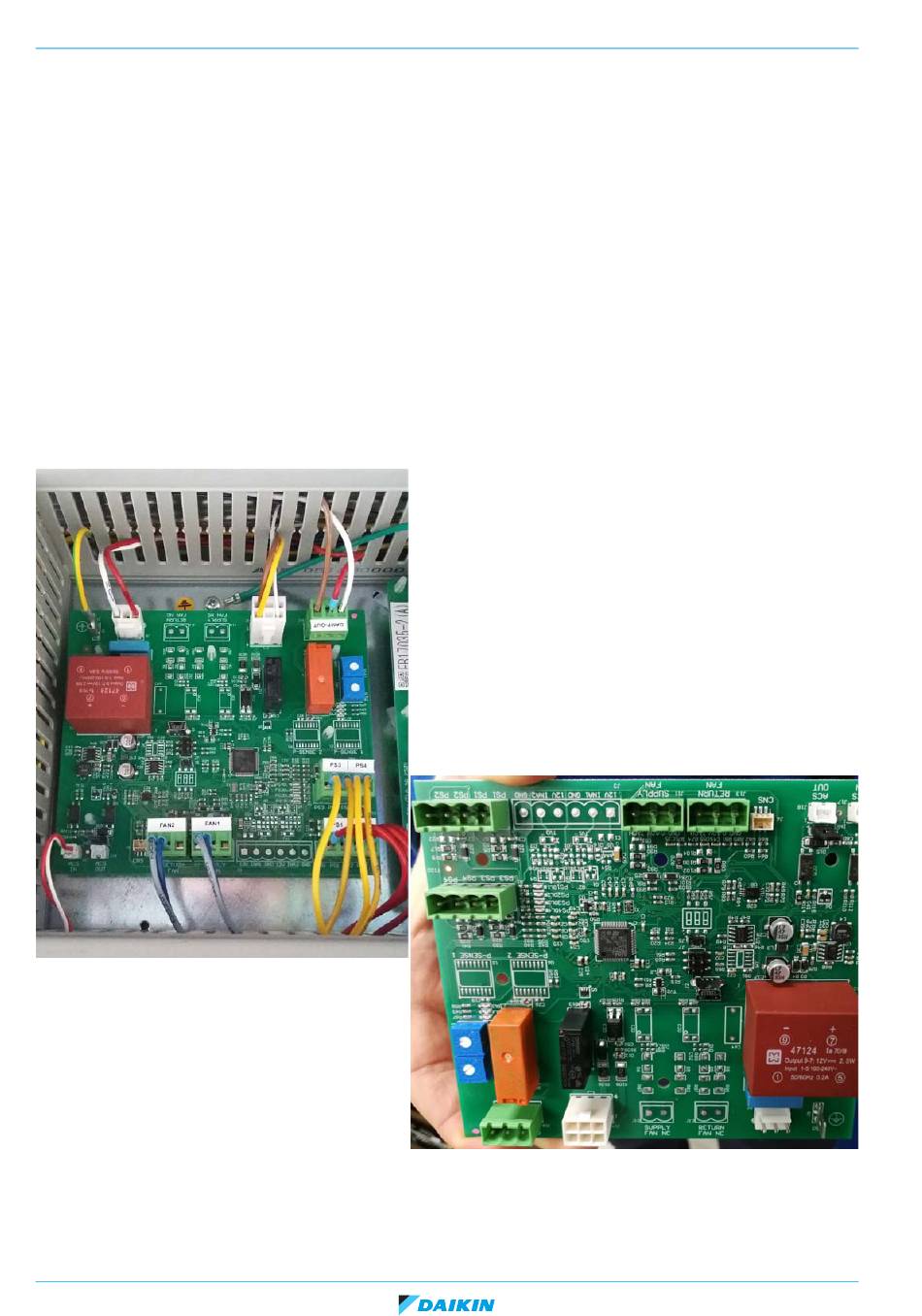

Figure 3-3: Removing the Smart Gateway board
3.2. Unit specific repair procedures
40.
