ESIE19-06

Part 1. Introduction

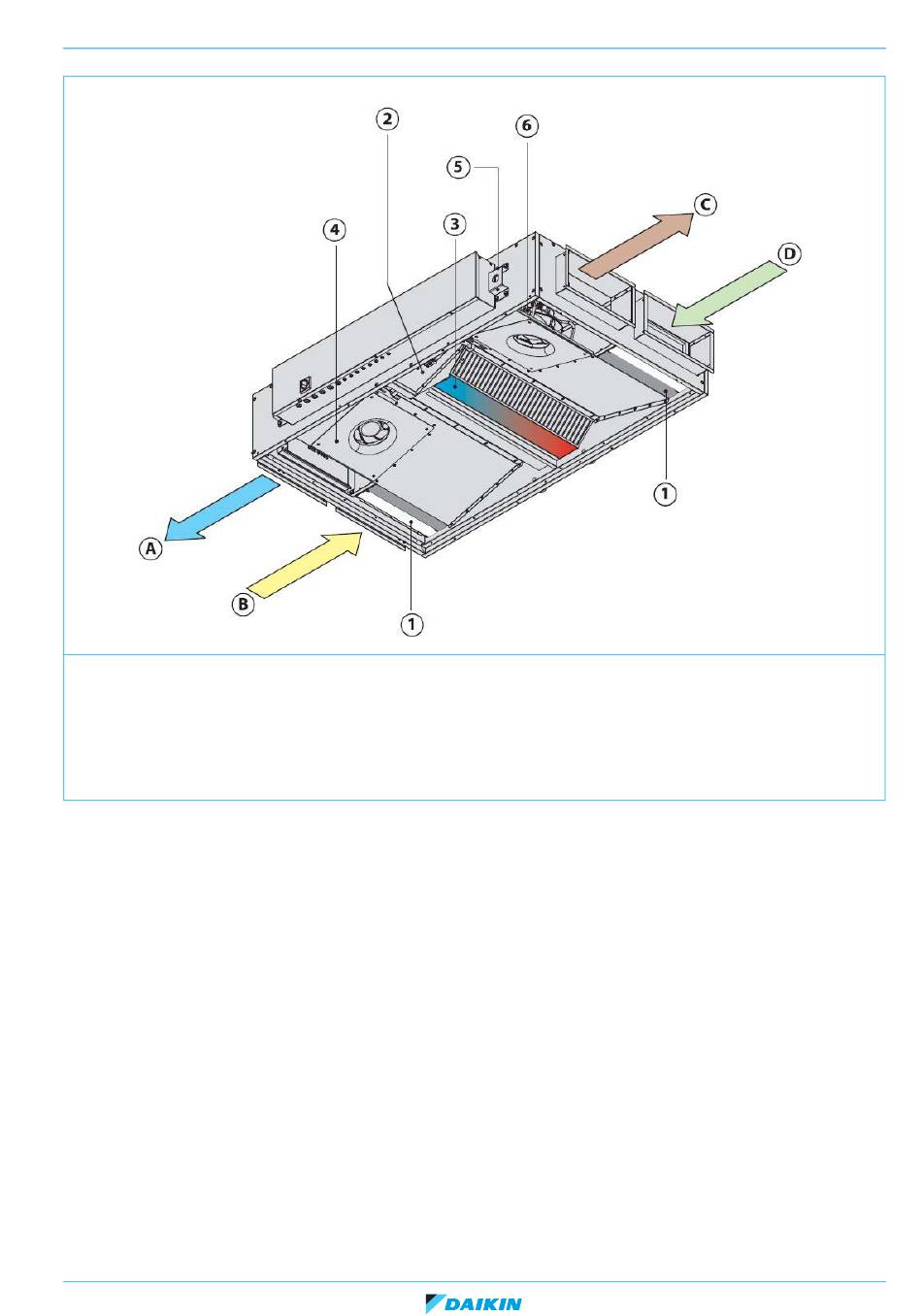

1. Filter and pre-filter

2. Exchanger by-pass

3. Heat exchanger

4. Supply fan motor assembly

5. Hanging devices

6. Return fan motor assembly

21/01/20

Version 1.1

Modular L Smart

A. Supply air

B. Internal air

C. Exhaust air

D. Fresh air

1.3. General operation
