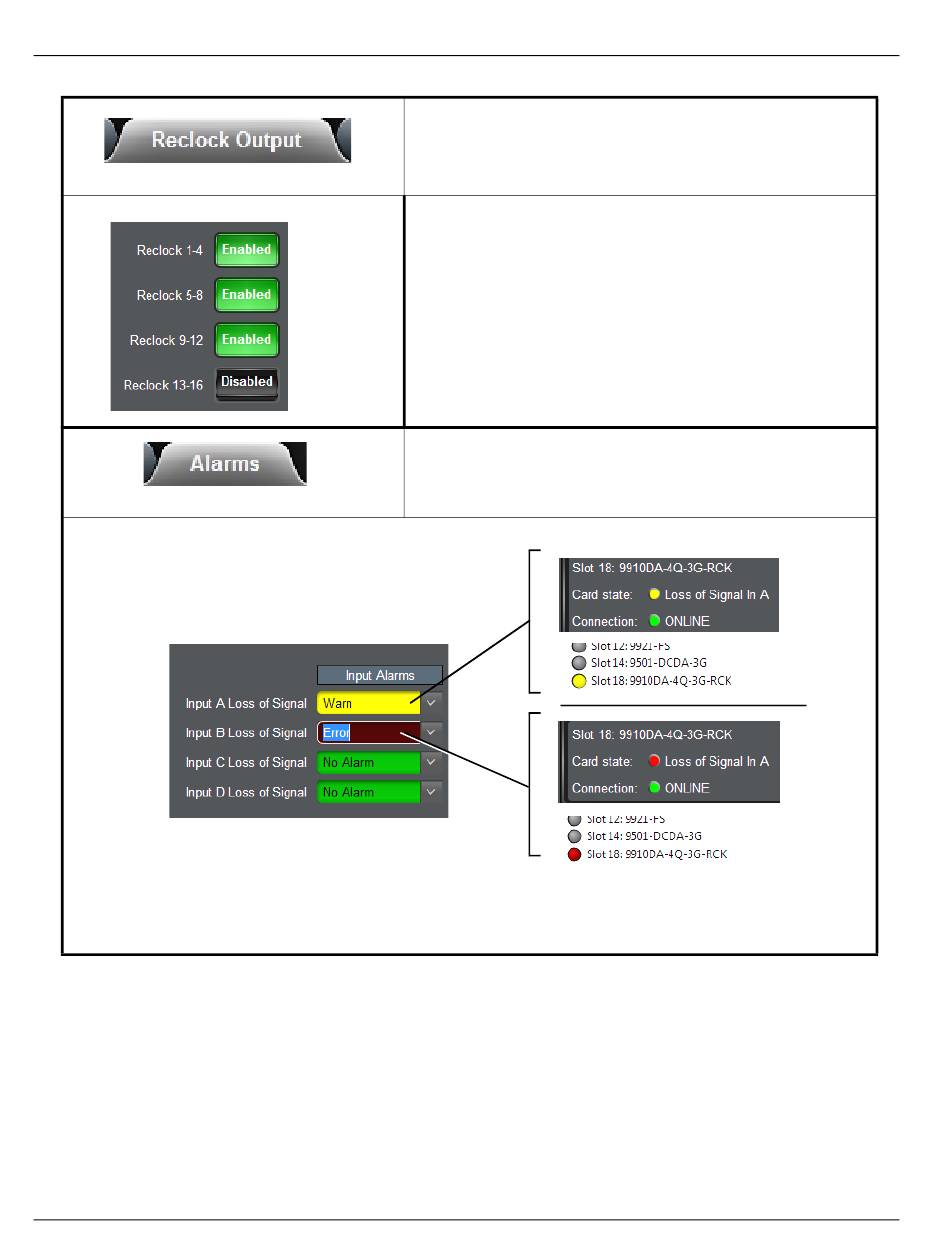

Table 3-1 9910-DA-4Q-3G Function Menu List — continued

Reclock Outputs Control

• Reclock Enable/Disable

Alarms Setup Controls

3-4
• Warn propagates a Yellow alarm to both the
Card state and DashBoard Tree View indicator
• Error propagates a Red alarm to both the
Card state and DashBoard Tree View indicator
Note: For any unused inputs, set control for No Alarm to
avoid nuisance false alarms.
9910DA PRODUCT MANUAL
9910DA Function Menu List and Descriptions
(-RCK models only) Provides reclock enable/disable
for each of the four DA quadrants.
Sets reclocking as enabled or disabled for each of the four DA quadrants.
In this example, with the card being used as a quad 1x4 DA with an ASI
input feeding quadrant 13-16 with other inputs as SDI, Disabled setting
for 13-16 accommodates ASI on this path while providing reclocking for
the other paths that are passing SDI.
Note: Reclocking Enabled provides automatic reclocking that sets
reclocking automatically for SMPTE 259M, 292M, and 424M SDI
signals. Disable setting forces disable regardless of signal
detected.
If passing signals such as ASI or MADI, it is recommended to set
the path carrying these signal type to Disabled.
For each input, provides independent controls for
setting up input LOS alarm propagation to Card state
and DashBoard tree view alarm indicators/messages.
