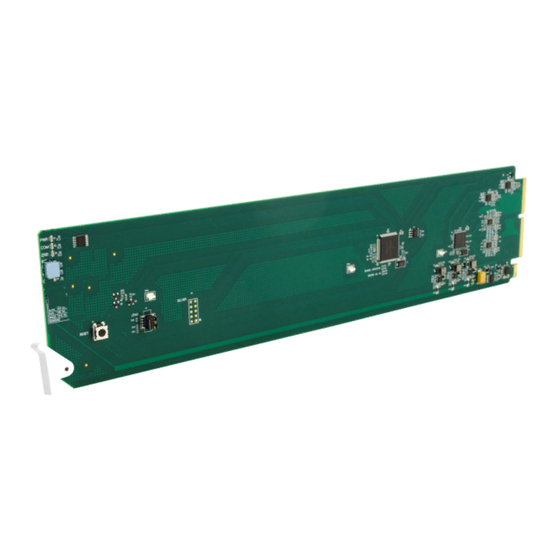

- Page 1 9910-DA-AV 9910-DA-AV Analog Video Distribution Amplifier Product Manual Cobalt Digital Inc. 2506 Galen Drive Champaign, IL 61821 Voice 217.344.1243 • Fax 217.344.1245 www.cobaltdigital.com 9910DA-AV-OM (V1.4)
- Page 2 Furthermore, Cobalt Digital Inc. reserves the right to make changes to any products herein to improve readability, function, or design. Cobalt Digital Inc. does not assume any liability arising out of the application or use of any product or circuit described herein.
-
Page 3: Table Of Contents
9910DA-AV Rear I/O Modules ..............1-6 Technical Specifications..................1-6 Warranty and Service Information ................. 1-7 Cobalt Digital Inc. Limited Warranty............1-7 Contact Cobalt Digital Inc..................1-8 Chapter 2 Installation and Setup ........ - Page 4 This page intentionally blank 9910DA-AV PRODUCT MANUAL 9910DA-AV-OM (V1.4)
-
Page 5: Chapter 1 Introduction
Manual Conventions (p. 1-2) • Safety and Regulatory Summary (p. 1-3) • 9910DA-AV Functional Description (p. 1-4) • Technical Specifications (p. 1-6) • Warranty and Service Information (p. 1-7) • Contact Cobalt Digital Inc. (p. 1-8) • 9910DA-AV-OM (V1.4) 9910DA-AV PRODUCT MANUAL... -
Page 6: Manual Conventions
Manual Conventions Manual Conventions In this manual, display messages and connectors are shown using the exact name shown on the 9910DA-AV itself (for example, connector names are shown like this: ANLG IN). In this manual, the terms below are applicable as follows: 9910DA-AV refers to the 9910DA-AV Analog Video Distribution •... -
Page 7: Safety And Regulatory Summary
Introduction Safety and Regulatory Summary Safety and Regulatory Summary Warnings To reduce risk of electric shock do not remove line voltage service barrier cover on frame ! WARNING ! equipment containing an AC power supply. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 8: 9910Da-Av Functional Description
9910DA-AV Functional Description 9910DA-AV Functional Description Figure 1-1 shows a functional block diagram of the 9910DA-AV. With the appropriate rear module, the 9910DA-AV can provide up to eight DA analog video outputs and a looping input where desired. 9910DA-AV Input/Output Formats The 9910DA-AV provides the following inputs and outputs: Inputs: •... - Page 9 Introduction 9910DA-AV Functional Description Figure 1-1 9910DA-AV Functional Block Diagram 9910DA-AV-OM (V1.4) 9910DA-AV PRODUCT MANUAL...
-
Page 10: 9910Da-Av Rear I/O Modules
Technical Specifications 9910DA-AV Rear I/O Modules The 9910DA-AV physically interfaces to system video connections at the rear of its frame using a Rear I/O Module. The full assortment of 9910DA-AV Rear I/O Modules is shown and described in 9910DA-AV Rear I/O Modules (p. -
Page 11: Warranty And Service Information
(1) year. Cobalt Digital Inc.'s (“Cobalt”) sole obligation under this warranty shall be limited to, at its option, (i) the repair or (ii) replacement of the product, and the determination of whether a defect is covered under this limited warranty shall be made at the sole discretion of Cobalt. -
Page 12: Contact Cobalt Digital Inc
Contact Cobalt Digital Inc. Contact Cobalt Digital Inc. Feel free to contact our thorough and professional support representatives for any of the following: Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information •... -
Page 13: Chapter 2 Installation And Setup
Chapter 2 Installation and Setup Chapter 2 Overview This chapter contains the following information: Setting Card Jumpers (p. 2-1) • Installing the 9910DA-AV Into a Frame Slot (p. 2-2) • Installing a Rear I/O Module (p. 2-5) • Setting Card Jumpers CAUTION This device contains semiconductor devices which are susceptible to serious damage from Electrostatic... -
Page 14: Installing The 9910Da-Av Into A Frame Slot
Installing the 9910DA-AV Into a Frame Slot Table 2-1 9910DA-AV Card Jumpers and Details Jumper Details and Recommended Settings Default Settings Input Differential/ Sets the input shield connection as tied to chassis ground (normal Single-ended Single-Ended position) or as float the input shield connection from ground, and use both Select the + and shield connections as a differential pair. - Page 15 Installation and Setup Installing the 9910DA-AV Into a Frame Slot Note: If installing the 9910DA-AV in a slot with no rear I/O module, a Rear I/O Module is required before cabling can be connected. Refer to Installing a Rear I/O Module (p. 2-5) for rear I/O module installation procedure. CAUTION If required, make certain Rear I/O Module(s) is installed before installing the 9910DA-AV into the frame slot.
- Page 16 Installing the 9910DA-AV Into a Frame Slot Verify that the card is fully engaged in rear I/O module mating connector. Close the frame front access panel. Connect the input and output cables as shown in 9910DA-AV Rear I/O Modules (p. 2-6). Repeat steps 1 through 8 for other 9910DA-AV cards.
-
Page 17: Installing A Rear I/O Module
Installation and Setup Installing a Rear I/O Module Installing a Rear I/O Module Note: This procedure is applicable only if a Rear I/O Module is not currently installed in the slot where the 9910DA-AV is to be installed. If installing the 9910DA-AV in a slot already equipped with a suitable I/O module, omit this procedure. -
Page 18: 9910Da-Av Rear I/O Modules
Installing a Rear I/O Module 9910DA-AV Rear I/O Modules Table 2-2 shows and describes the full assortment of Rear I/O Modules specifically for use with the 9910DA-AV. Table 2-2 9910DA-AV Rear I/O Modules 9910DA-AV Rear I/O Module Description RM20-9910AV-B Provides the following connections: •... - Page 19 Installation and Setup Installing a Rear I/O Module Table 2-2 9910DA-AV Rear I/O Modules — continued 9910DA-AV Rear I/O Module Description Split Rear Module. Provides each of the following connections for two 9910DA cards: • Analog video input (ANLG IN) RM20-9910AV-B/S •...
- Page 20 This page intentionally blank 9910DA-AV PRODUCT MANUAL 9910DA-AV-OM (V1.4)
-
Page 21: Chapter 3 Operating Instructions
Chapter 3 Operating Instructions Chapter 3 Overview This chapter contains the following information: Accessing the 9910DA-AV Card via Remote Control (p. 3-1) • Checking 9910DA-AV Card Information and Input Status (p. 3-2) • Card-Edge Controls and Indicators (p. 3-3) • Troubleshooting (p. -
Page 22: Checking 9910Da-Av Card Information And Input Status
Checking 9910DA-AV Card Information and Input Status As shown below, expand the tree to access the cards within the frame. Click on the card to be accessed (in this example, “Slot 6: 9910DA-AV”). Checking 9910DA-AV Card Information and Input Status The operating status of the 9910DA-AV card can be checked using DashBoard™. -
Page 23: Card-Edge Controls And Indicators
Operating Instructions Card-Edge Controls and Indicators Card-Edge Controls and Indicators Figure 3-2 shows card edge controls and indicators, and provides information about optimizing control settings for various use cases of the card. GAIN LEVEL Item Function COMM Blue LED flashes when card is communicating with remote network control (e.g., DashBoard™... -
Page 24: Troubleshooting Network/Remote Control Errors
The Cobalt Digital Inc. Technical Support Department will continue to provide advice on any product manufactured by Cobalt Digital Inc., beyond the warranty period without charge, for the life of the product. See Contact Cobalt Digital Inc. (p. 1-8) in Chapter 1, “Introduction“ for contact information. 9910DA-AV PRODUCT MANUAL... - Page 26 Cobalt Digital Inc. 2506 Galen Drive Champaign, IL 61821 Voice 217.344.1243 • Fax 217.344.1245 www.cobaltdigital.com 9910DA-AV-OM (V1.4) Printed in USA...
