Installation and Setup
9910DA Rear I/O Modules
Table 2-1
9910DA Rear I/O Modules
9910DA Rear I/O Module
Note: • Rear I/O Module output designations here correlate to output numbers for four DA quadrants as shown in the
card block diagram (for example, SDI OUT 3 in diagrams below is tied to (driven from) DA quadrant "SDI Out
(1-4)" in the block diagram; SDI OUT 5 in diagrams below is tied to (driven from) DA quadrant "SDI Out (5-8)"
in the block diagram, and so on). As such, SDI outputs within a quadrant group can only be sourced from a
particular input at one time (for example, if the card is set to feed SDI IN A to quadrant SDI Out (1-4), the rear
module outputs 1 thru 4 will all output SDI IN A). Dissimilar inputs cannot be routed within a quadrant group
(for example, SDI OUT 1 sourced from SDI IN A and SDI OUT 2 sourced from SDI IN B).
• SDI IN C and SDI IN D are NC on -2Q (Dual-Channel) models. SDI IN B thru SDI IN D are NC on -1Q
(Single-Channel) models.
• Connector numbers with asterisks (*) here denote the connector generic designation number screened on the
rear module PCB.
RM20-9910-A
RM20-9910-B
9910DA-3G-OM (V1.7)

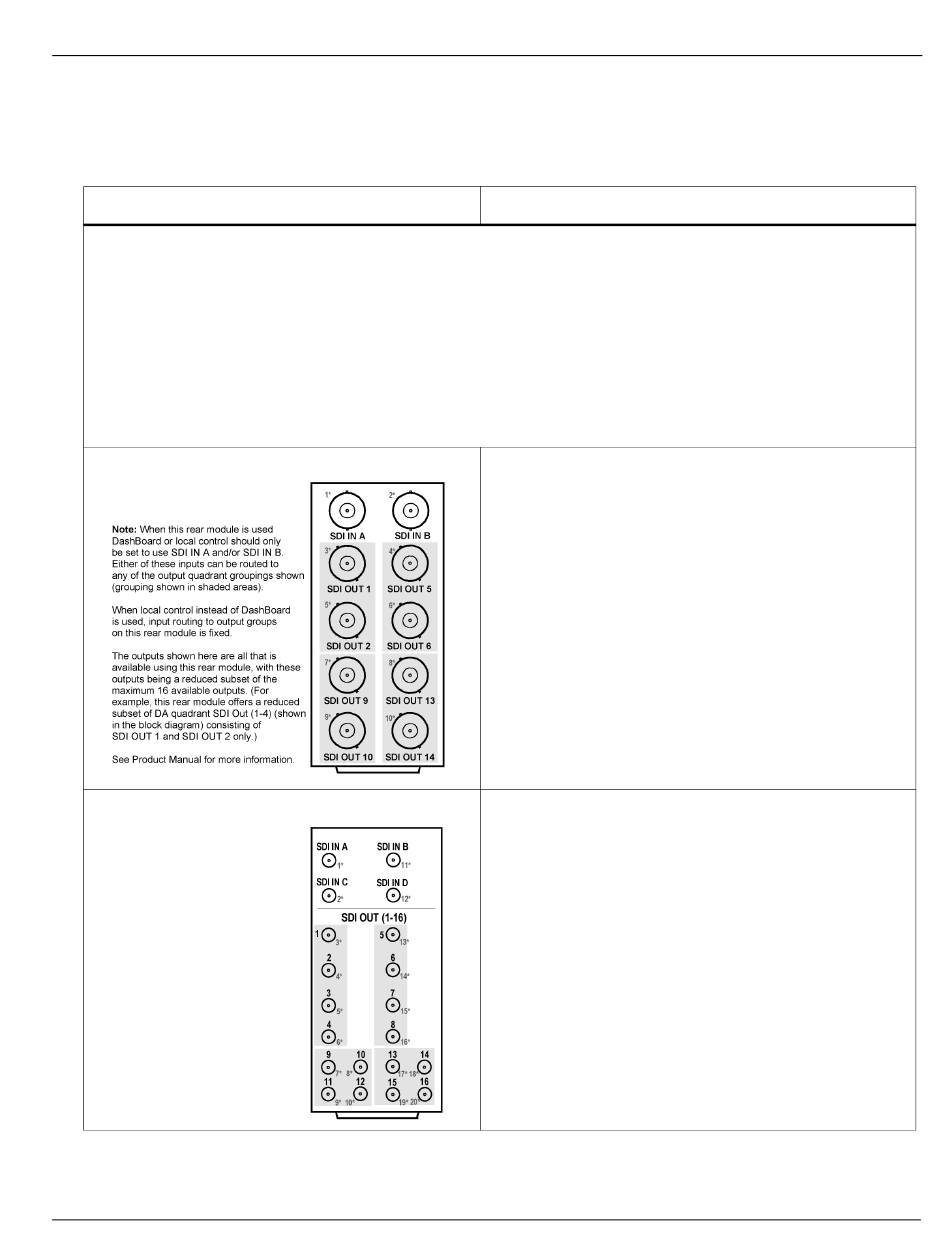

Table 2-1 shows and describes the full assortment of Rear I/O Modules
specifically for use with the 9910DA cards.
Provides the following connections:
• Two SDI/ASI video input BNCs (SDI IN A and
• Eight DA outputs:
Provides the following connections:
• Four SDI/ASI video inputs (SDI IN A thru
• 16 DA outputs (SDI OUT 1 thru SDI OUT 16)
Note: Available equipped with High-Density BNC
9910DA PRODUCT MANUAL
Installing a Rear I/O Module
Description
SDI IN B)
SDI OUT 1 / 2
SDI OUT 5 / 6
SDI OUT 9 / 10
SDI OUT 13 / 14
SDI IN D)
(HDBNC) or DIN1.0/2.3 connectors as:
RM20-9910-B-HDBNC or
RM20-9910-B-DIN, respectively.
2-7
