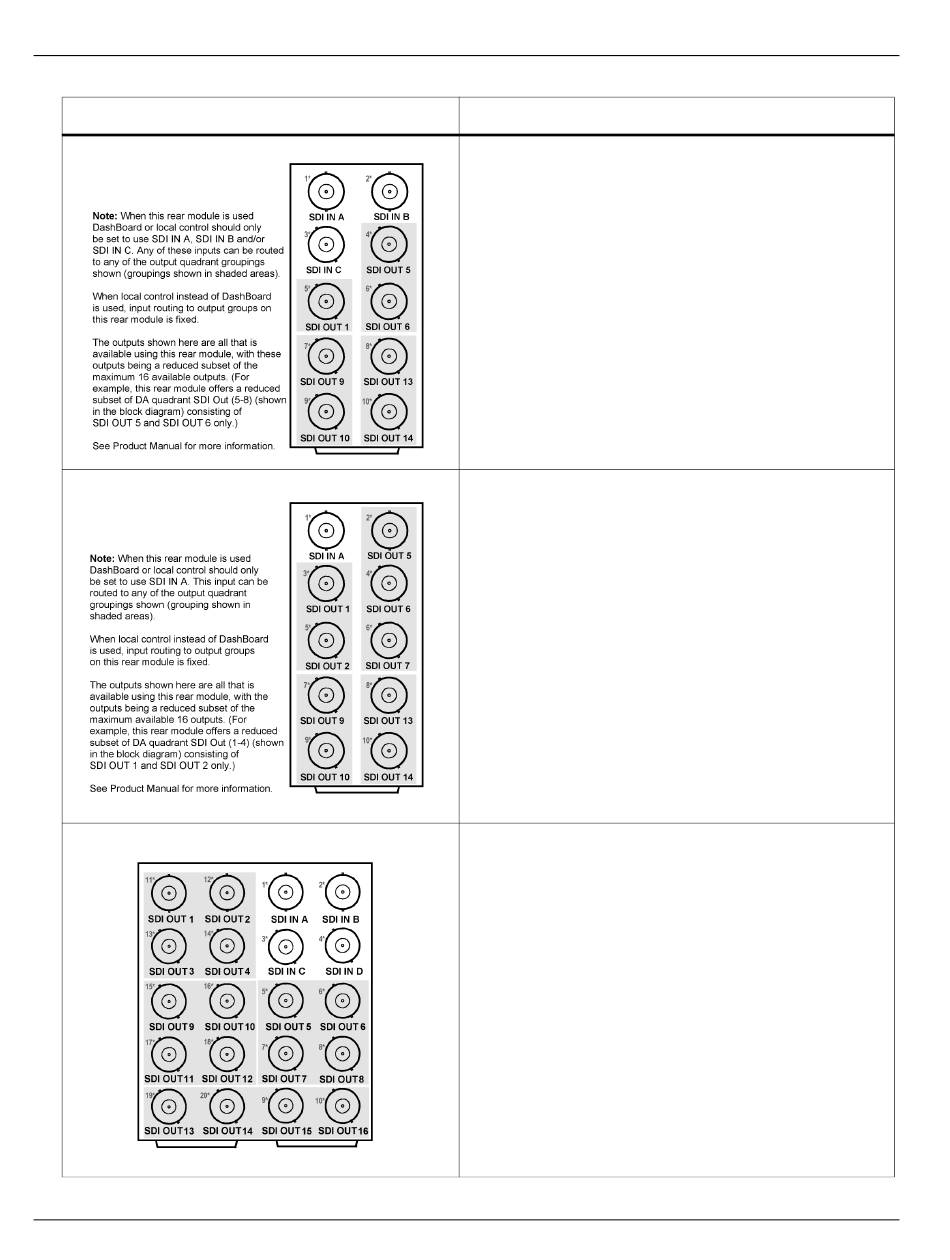

Table 2-1 9910DA Rear I/O Modules — continued
9910DA Rear I/O Module
RM20-9910-C
RM20-9910-D
RM20-9910-E
2-8
Provides the following connections:
• Three SDI/ASI video inputs (SDI IN A thru
SDI IN C)
• Seven DA outputs:
SDI OUT 1
SDI OUT 5 / 6
SDI OUT 9 / 10
SDI OUT 13 / 14
Provides the following connections:
• One SDI/ASI video inputs (SDI IN A)
• Nine DA outputs:
SDI OUT 1 / 2
SDI OUT 5 / 6 / 7
SDI OUT 9 / 10
SDI OUT 13 / 14
Provides the following connections:
• Four SDI/ASI video inputs (SDI IN A thru
SDI IN D)
• 16 DA outputs (SDI OUT 1 thru SDI OUT 16)
