Lutron Electronics CA-3PS-GR Manual

English
3-way Switch
Rated at 120/277VAC~, 15 A.
Purchase Lutron wallplate separately.
Important Notes
Please read before installing
1. Connect only No. 12 or 14 gauge copper or
copper clad wire to switch. See device for strip
length.
2. Do not connect aluminum wire to this device.
3. Install in accordance with all national and local
electrical codes.
4. Clean unit with a soft damp cloth only . Do not
use any chemical cleaners.
Technical Assistance
If you have questions concerning the installation or
operation of this product, call the Lutron Technical
Assistance Hotline. Please provide exact model
number when calling.
(800) 523-9466 (U.S.A., Canada, and the
Caribbean)
other countries call, (610) 282-3800
Fax (610) 282-3090
Internet: www.lutron.com
Limited Warranty
Lutron will, at its option, repair or replace any unit that is defective in materials or
manufacture within one year after purchase. For warranty service, return unit to place
of purchase or mail to Lutron at 7200 Suter Rd., Coopersburg, PA 18036-1299,
postage pre-paid.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND
THE IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO ONE YEAR
FROM PURCHASE. THIS WARRANTY DOES NOT COVER THE COST OF
INSTALLATION, REMOVAL OR REINSTALLATION, OR DAMAGE RESULTING
FROM MISUSE, ABUSE, OR DAMAGE FROM IMPROPER WIRING OR
INSTALLATION. THIS WARRANTY DOES NOT COVER INCIDENTAL OR
CONSEQUENTIAL DAMAGES. LUTRON'S LIABILITY ON ANY CLAIM FOR
DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE MANUFACTURE,
SALE, INSTALLATION, DELIVERY, OR USE OF THE UNIT SHALL NEVER
EXCEED THE PURCHASE PRICE OF THE UNIT.
This warranty gives you specific legal rights, and you may have other rights which vary
from state to state. Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitation on how long an implied warranty may last, so
the above limitations may not apply to you.
Lutron is a registered trademark of Lutron Electronics Co., Inc.
© 2001 Lutron Electronics Co., Inc.

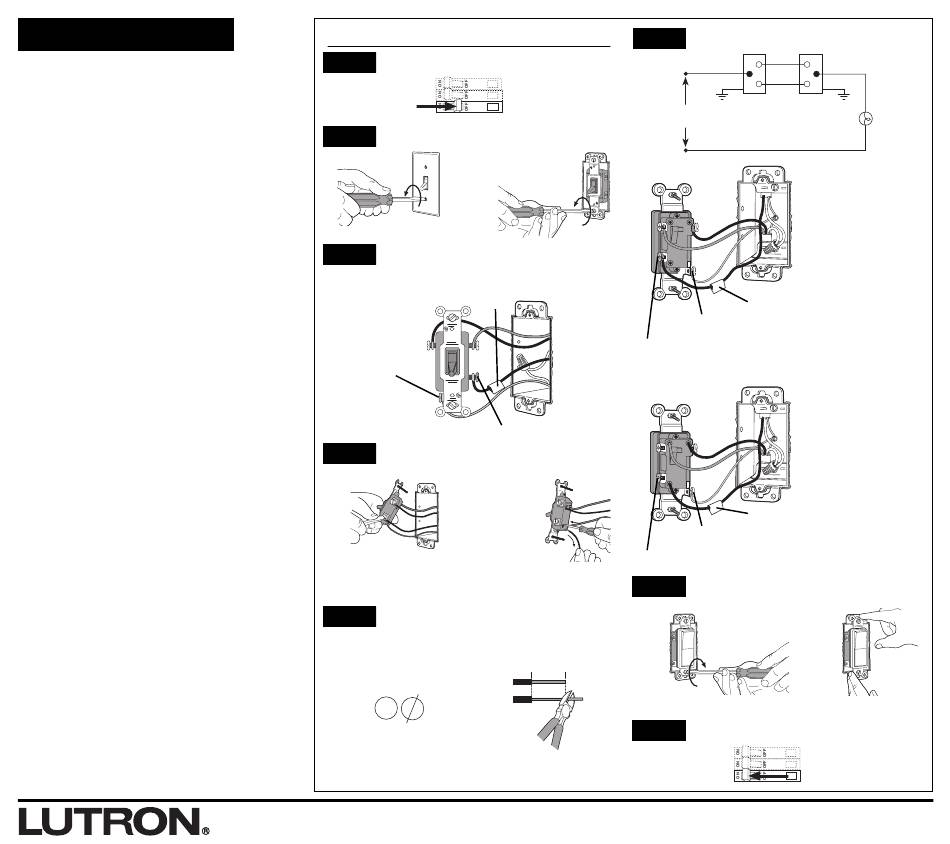

Installation
Step 1
Turn power off at circuit breaker or remove fuse.
Step 2
Remove faceplate. Pull switch from wall.
Turn screw to loosen
Step 3
Tag the wire that is connected to the different
colored screw or screw labeled COMMON on
switch (not the green ground screw).
Tag
Ground
(Green screw)
Different-colored screw
(COMMON)
Step 4
Disconnect switch wires.
Terminal Screws: Backwired:
Turn screw to loosen Insert screwdriver. Pull
out wire.
Step 5
Prepare wires. Trim or strip all wire conductors to
the length shown on the strip gauge on the back of
the switch.
Trim or strip wires to
proper length
Cu Al
Step 6
Wiring the switch:
Hot
Ground
Interruptor
Interruptor
3-Way
120/277VAC
3-Way
60Hz
Neutral
Using Screw Terminals.
• Connect the bare copper or
green ground wire to the
green screw terminal on
the switch. If there is no
ground wire in your
wallbox, consult an
electrician.
• Connect the wire removed
from the different-colored
screw (Tagged wire) to the
screw terminal marked
common.
• Connect one of the
Tag
remaining wires to one of
the remaining screw
Ground
terminals on the switch.
(Green screw)
• Connect the remaining wire
Different-colored
to the last screw terminal
screw (COMMON)
on the switch.
Using Backwire Holes.
• Connect the bare copper or
green ground wire to the
green screw terminal on
the switch. If there is no
ground wire in your
wallbox, consult an
electrician.
• Push the wire removed
from the different-colored
screw (Tagged wire) fully
into the Backwire Hole
marked COMMON.
Tag • Push one of the remaining
wires into one of the
Ground
remaining Backwire Holes.
(Green screw)
• Push the remaining wire
into the remaining
Different-colored
screw (COMMON)
Backwire Hole.
Step 7
Mount and align switch. Install wallplate (purchased
separately).
Start screws
Step 8
Turn power on.
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
Made and printed in U.S.A. 10/01 P/N 030-703 Rev. C
Ground
Load
Align switch and
tighten screws
