Series 700 Maintenance Manual

Main Chassis Assembly

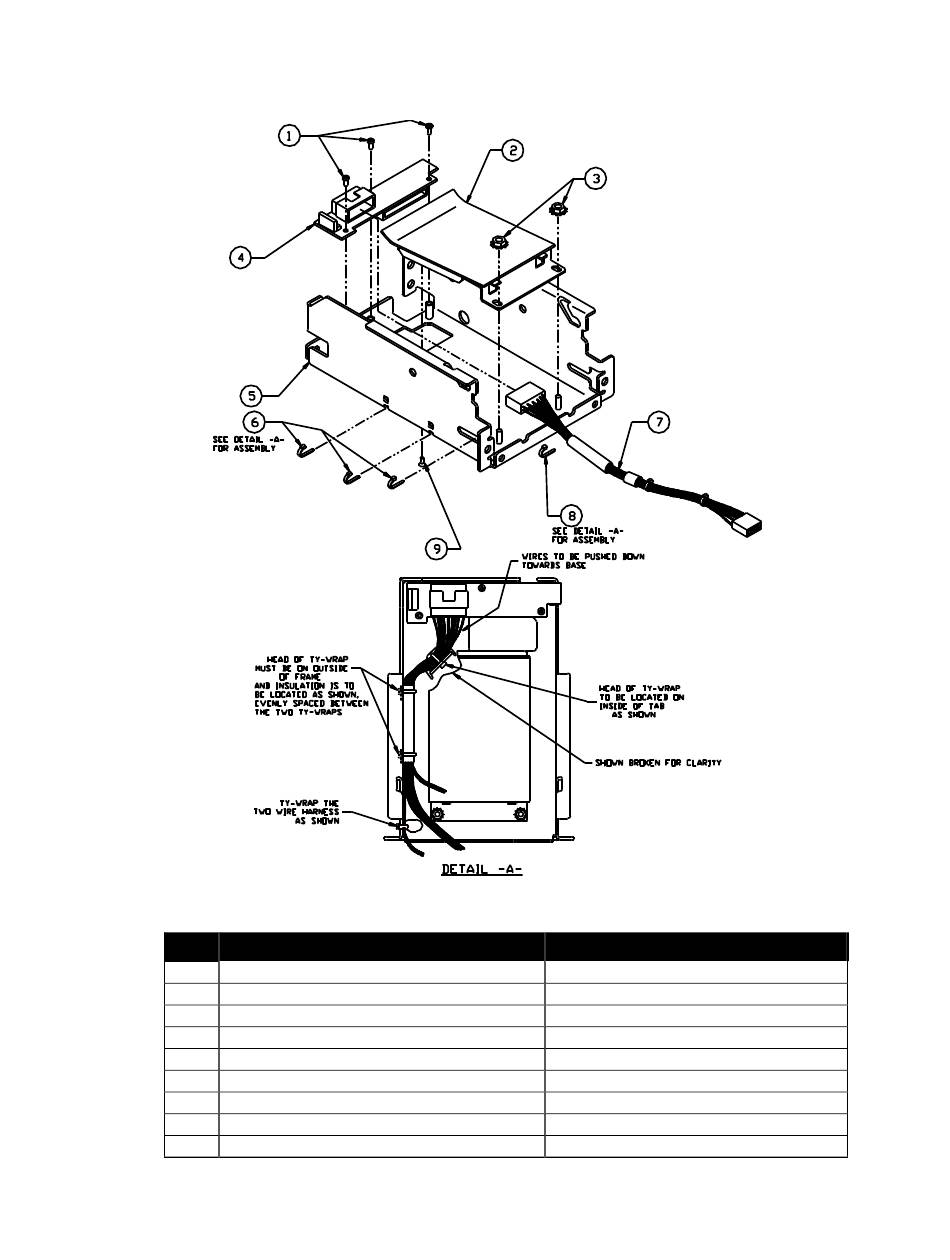

Figure 27 Main Chassis Assembly

No. Description (standard parts)
1 Screw-M3x6mm SEMS PHD
2 Platen-Bottom
3 Nut-M3 Hex w/Lockwasher
4 Assy-Connector Interface BD
5 Chassis-Main Printer
6 Tywrap-3 3/8
7 Harness-Main
8 Tywrap-3 3/8
9 Screw-M3x6mm PHPS FLAT HD

Table 21 Main Chassis Assembly Parts List

Part No. (history)
98-02215
75-02288
98-0621
75-03589 (75-02153)
75-02119
98-0941
70-02220
98-0941
98-02219
Rev H
Model 750
Page 45
