Model 750
Removing the Drawer Chassis Assembly Components
The Drawer Chassis Assembly includes two 10" Slides, Flex Cable, Power Board, and
the Drawer Chassis Assembly. They are held together by Phillip's Head screws.
1. Remove the inner mounted, Phillip's Head screws that hold
the two 10" Sliders to the Drawer Chassis Assembly.
2. Remove the 5 phillip's head screws that hold
the Power Board to the Drawer Frame.
Drawer
Chassis

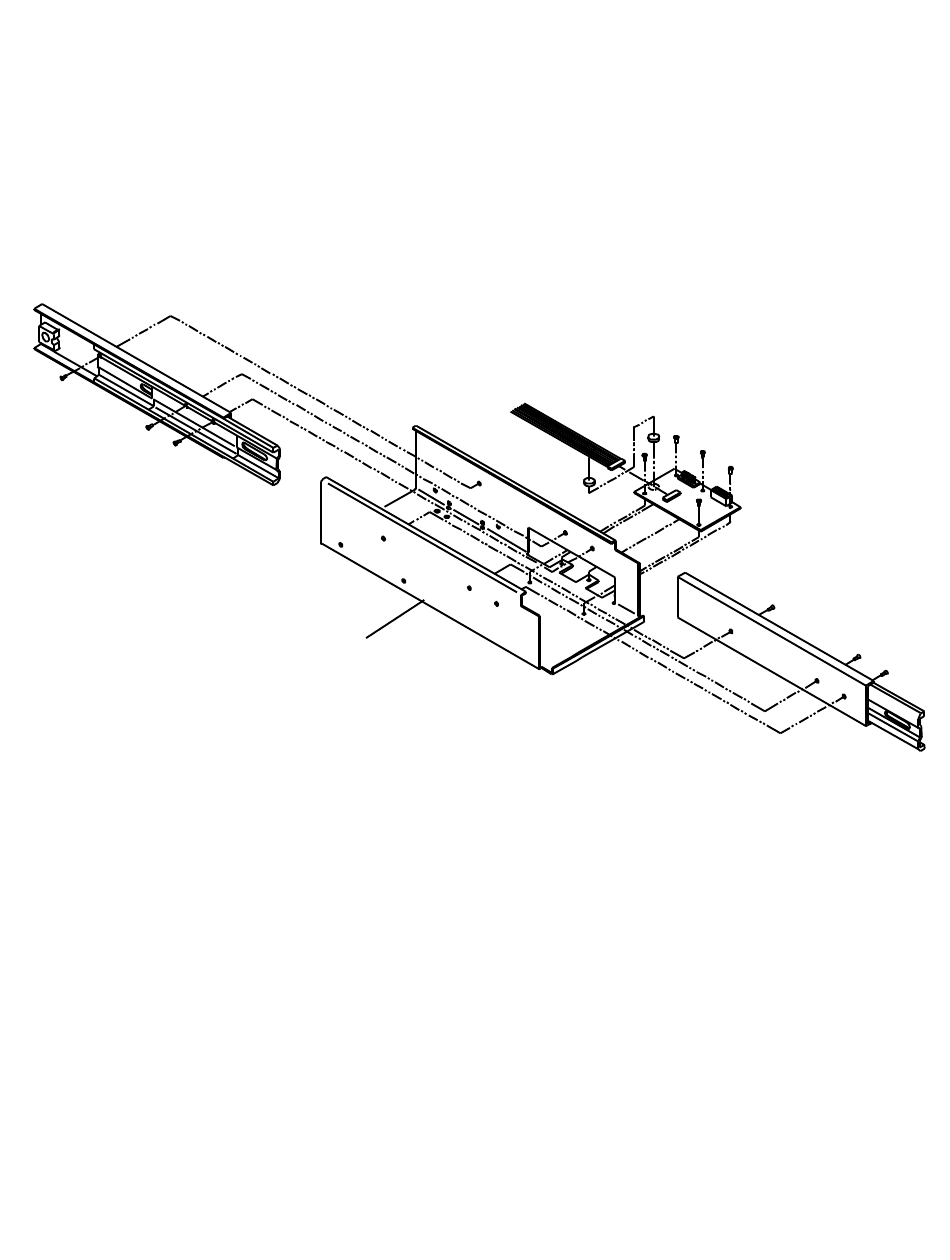

Figure 16 Removing the Drawer Chassis Assembly Components
Page 34
Series 700 Maintenance Manual
Rev H
