Series 700 Maintenance Manual

Removing the Printer Chassis Assembly Components

The Printer Chassis Assembly includes a Controller Board, a Thermal Print Mechanism,
Upper Platen and a Ticket Tearbar.
1. Remove the Ticket Tearbar.
2. Unplug the Stepper Motor, Black Dot/Top of Form Circuit Board,
and Thermal Print Mechanism from the Main Controller Board.
3. Remove Thermal Print Mechanism and Controller Board.
4. Remove Upper Platen.
Thermal
Print
Mechanism

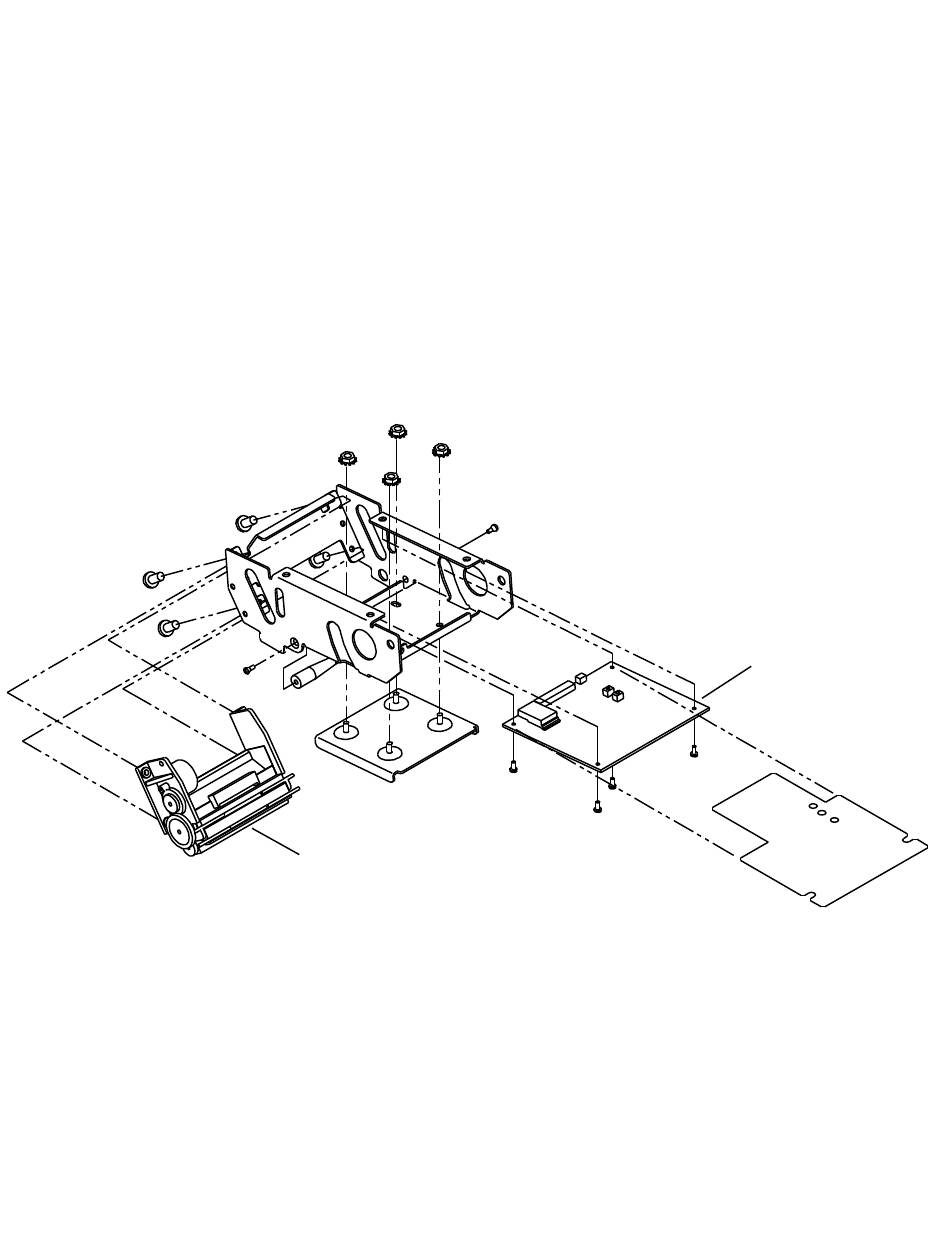

Figure 19 Removing the Printer Chassis Assembly Components

Rev H
Model 750
Main
Controller
Board
Page 37
