Series 700 Maintenance Manual

Chapter 4: Operational Controls

Removing the Model 750 from the OEM Product

The printer is accessed by a release knob on the underside of the chassis. The unit will
move forward on its slides, allowing it to be grasped and pulled into the fully extended
position. For adequate access to the release, clearance must be left around the ½-inch
release knob. Access to the knob may be from a separate secure location of the product.

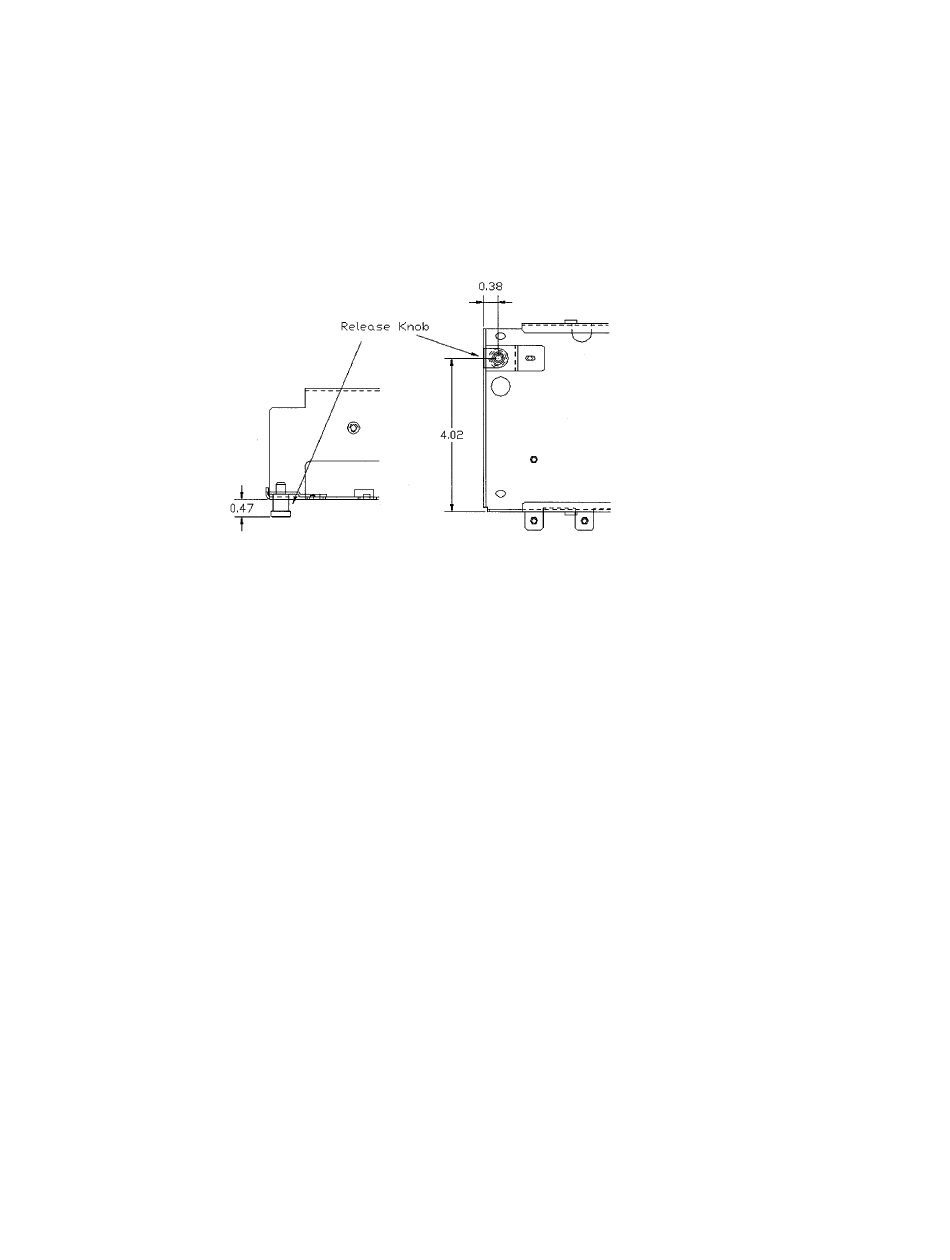

Figure 4 Release Knob Location

Using the Ticket Feed and Test Buttons for Diagnostics

The Ticket Feed and Test Buttons are located on top of the Printer Chassis Assembly.
These two buttons can be used separately or in conjunction with one another to enter the
Model 750's Diagnostic Hex Dump Mode.

Using Ticket Feed Button to enter Diagnostics

1. Hold down Ticket Feed button on power.
2. The 750 will begin to enter Diagnostic Hex Dump Mode.

Using Test and Ticket Feed Buttons to enter Diagnostics

1. Press and hold the Test Button. This will turn off the 750's processor. You can check
the LED indicator light to confirm that the printer's processor has been shut down.
2. Continue to hold down the Test Button and at the
same time press the Ticket Feed Button.
3. Release Test Buttton.
4. The 750 will begin to enter Diagnostic Hex Dump Mode.
Rev H
Model 750
Page 11
