Series 700 Maintenance Manual
Separating the Printer Chassis Assembly
from the Main Chassis Assembly
The Printer Chassis Assembly and the Main Chassis Assembly are held together
by a Quick Release Button located on the right side of the Assembly.
1. Orient the Printer Chassis Assembly for easy access to the Release Button.
2. Locate the release button and pull the Printer Chassis Assembly out
of the Main Chassis Assembly.
3. Unplug the Main Harness from the Printer Controller Board (J8).
Printer
Chassis
Assembly
Main Chassis
Assembly

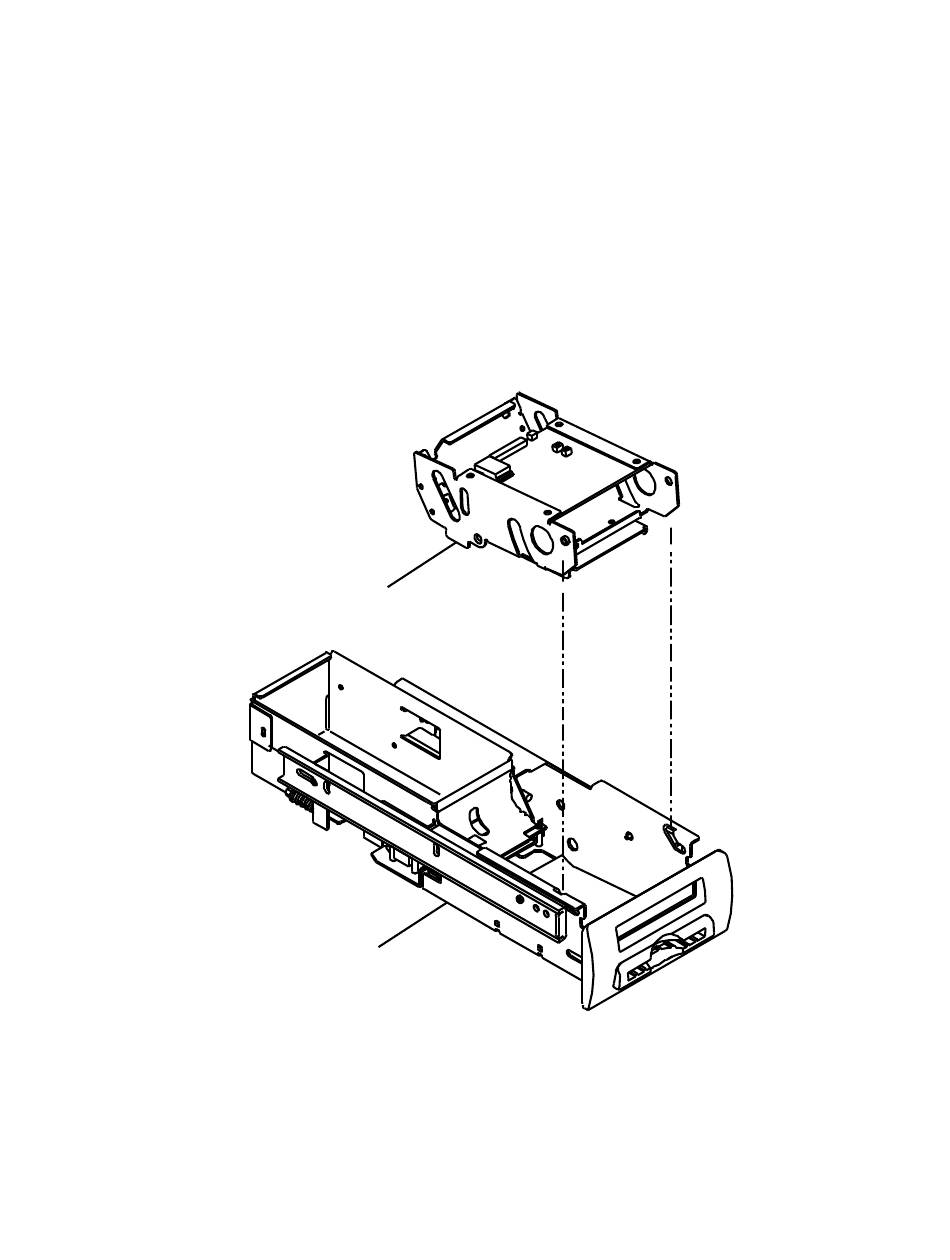

Figure 15 Separating the Printer Chassis Assembly from the Main Chassis Assembly

Rev H
Model 750
Page 33
