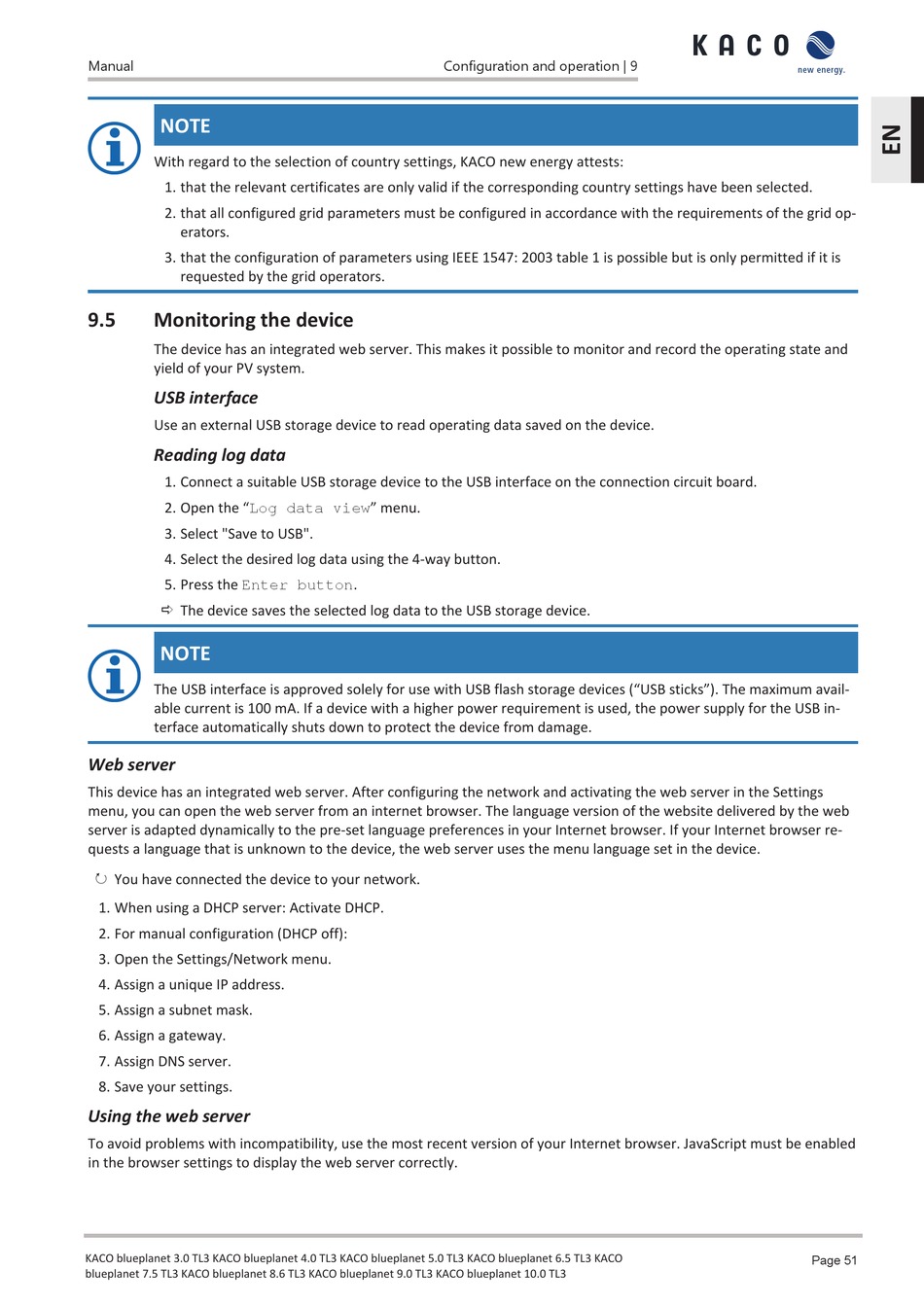

NOTE
With regard to the selection of country settings, KACO new energy attests:
1. that the relevant certificates are only valid if the corresponding country settings have been selected.
2. that all configured grid parameters must be configured in accordance with the requirements of the grid op-
erators.
3. that the configuration of parameters using IEEE 1547: 2003 table 1 is possible but is only permitted if it is
requested by the grid operators.
9.5

Monitoring the device

The device has an integrated web server. This makes it possible to monitor and record the operating state and
yield of your PV system.
USB interface
Use an external USB storage device to read operating data saved on the device.
Reading log data
1. Connect a suitable USB storage device to the USB interface on the connection circuit board.
2. Open the "Log data view" menu.
3. Select "Save to USB".
4. Select the desired log data using the 4-way button.
5. Press the Enter button.
ð The device saves the selected log data to the USB storage device.
NOTE
The USB interface is approved solely for use with USB flash storage devices ("USB sticks"). The maximum avail-
able current is 100 mA. If a device with a higher power requirement is used, the power supply for the USB in-
terface automatically shuts down to protect the device from damage.
Web server
This device has an integrated web server. After configuring the network and activating the web server in the Settings
menu, you can open the web server from an internet browser. The language version of the website delivered by the web
server is adapted dynamically to the pre-set language preferences in your Internet browser. If your Internet browser re-
quests a language that is unknown to the device, the web server uses the menu language set in the device.
↻ You have connected the device to your network.
1. When using a DHCP server: Activate DHCP.
2. For manual configuration (DHCP off):
3. Open the Settings/Network menu.
4. Assign a unique IP address.
5. Assign a subnet mask.
6. Assign a gateway.
7. Assign DNS server.
8. Save your settings.
Using the web server
To avoid problems with incompatibility, use the most recent version of your Internet browser. JavaScript must be enabled
in the browser settings to display the web server correctly.
KACO blueplanet 3.0 TL3 KACO blueplanet 4.0 TL3 KACO blueplanet 5.0 TL3 KACO blueplanet 6.5 TL3 KACO
blueplanet 7.5 TL3 KACO blueplanet 8.6 TL3 KACO blueplanet 9.0 TL3 KACO blueplanet 10.0 TL3
Configuration and operation | 9
Page 51
