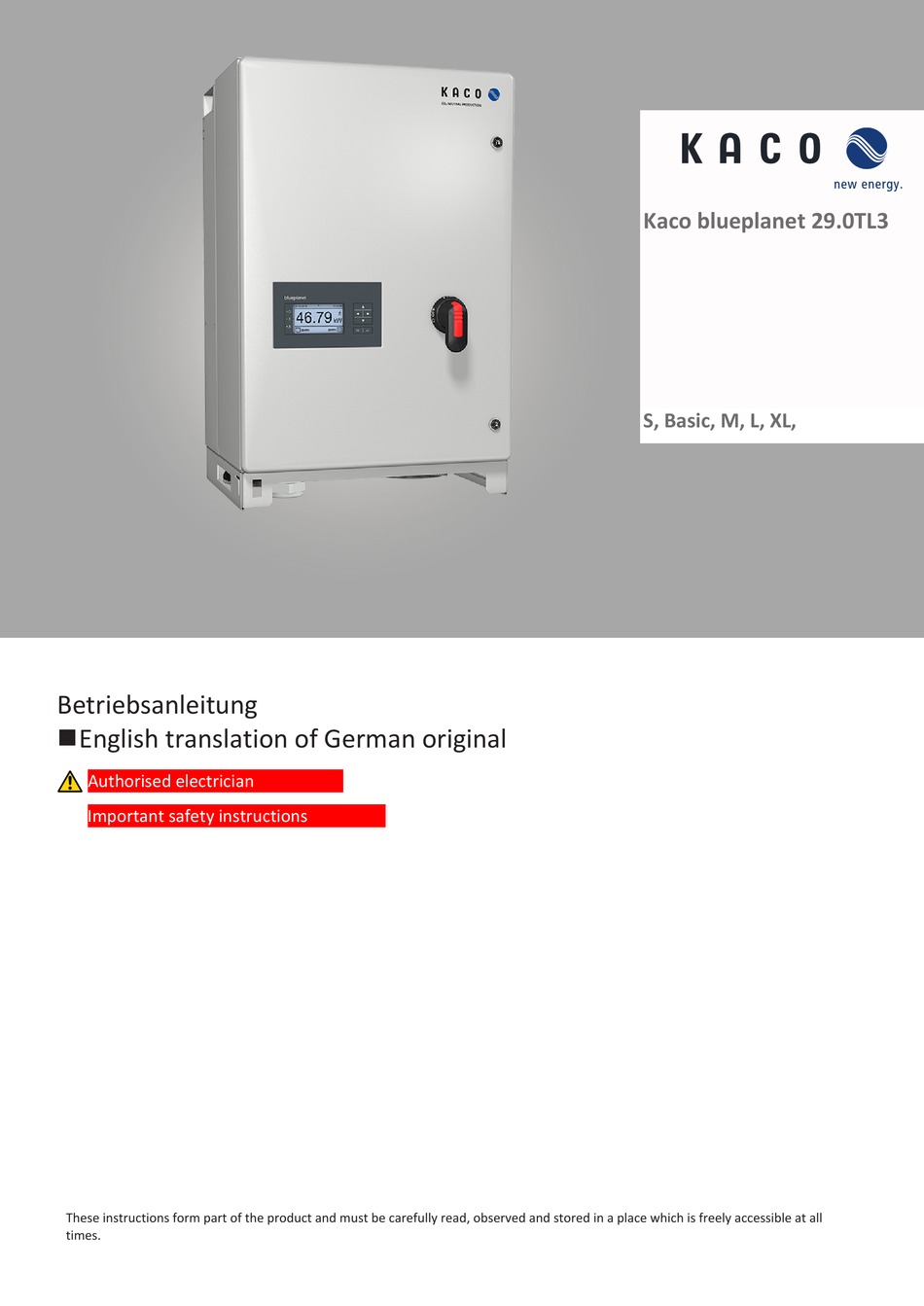

Betriebsanleitung
nEnglish translation of German original
Authorised electrician
Important safety instructions
These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all
times.

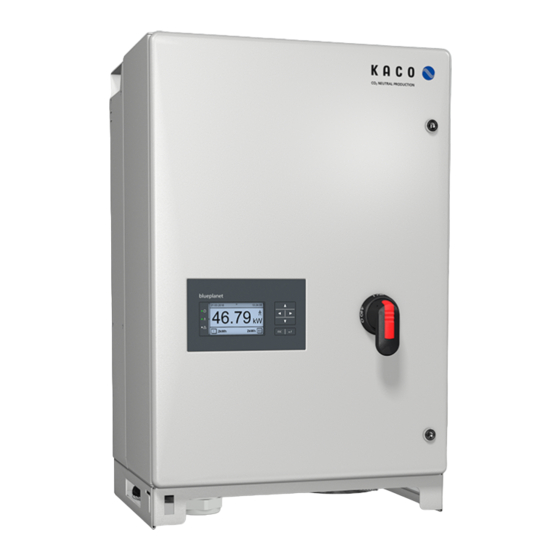

Kaco blueplanet 29.0TL3
S, Basic, M, L, XL,
