Manual
nEnglish translation of German original
Authorised electrician
Important safety instructions
These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all
times.

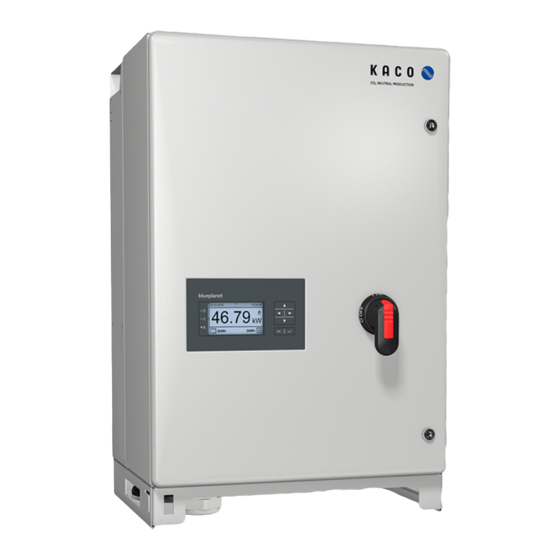

Kaco blueplanet 50.0TL3
Kaco blueplanet 60.0TL3
S, Basic, M, L, XL, XL-FR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KACO blueplanet 50.0 TL3 M1 WM OD IIGS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kaco KACO blueplanet 50.0 TL3 M1 WM OD IIGS

Summary of Contents for Kaco KACO blueplanet 50.0 TL3 M1 WM OD IIGS

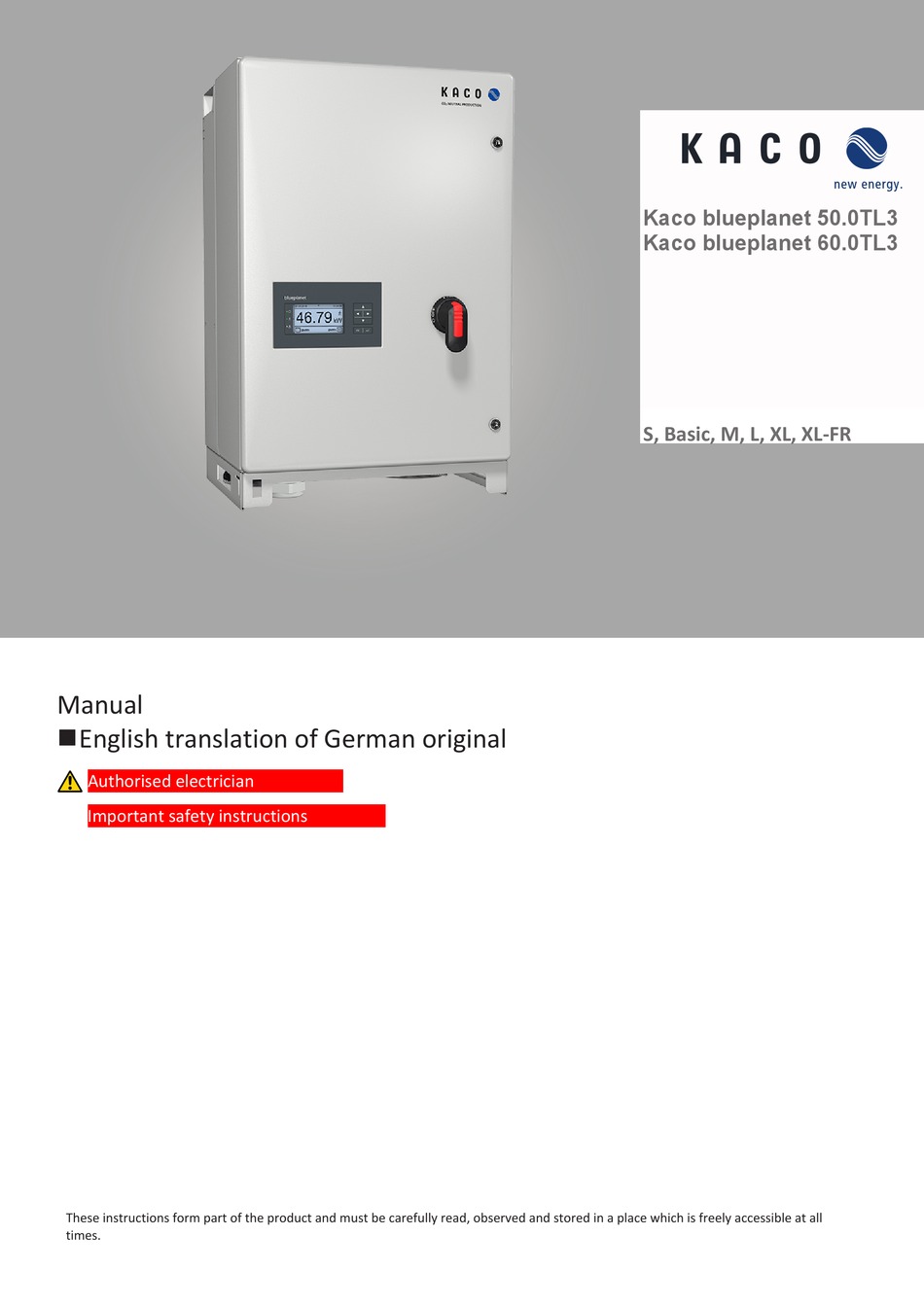

  • Page 1 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 S, Basic, M, L, XL, XL-FR Manual nEnglish translation of German original Authorised electrician Important safety instructions These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all...
  • Page 2 | Legal provisions Manual Legal provisions Die in diesem Dokument enthaltenen Informationen sind Eigentum der KACO new energy GmbH. Die Veröf- fentlichung, ganz oder in Teilen, bedarf der schriftlichen Zustimmung der KACO new energy GmbH. KACO Garantie The latest version of our warranty conditions is available for download at http://www.kaco-newenergy.com.

  • Page 3: Table Of Contents

    Manual Table of contents Photovoltaic feed-in inverter 8 Commissioning............. 37 Table of contents 8.1 Requirements..........37 1 General information ..........8.2 Preconditions relating to standards ....37 1.1 About this document ........9 Configuration and operation ........ 38 1.2 More information .......... 9.1 Initial start-up..........

  • Page 4: General Information

    Storing the documents These instructions and other documents must be stored near the system and be available at all times. – The current version of the operating Instructions can be downloaded from www.kaco-newenergy.com. English translation of German original This document has been produced in several languages. The German-language version is the original version. All other language versions are translations of the original version.

  • Page 5: Layout Of Instructions

    Useful information and notes Information that is important for a specific topic or objective, but that is not safety-relevant. 1.3.4 Symbols for instructions ↻ Prerequisite for use 1. Carry out the next step Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 5...

  • Page 6: Identification

    ð Interim result of the action ð End result Identification You will find the name plate with the following data for service and other require- KACO blueplanet 50.0 TL3 M1 WM OD IIGX Part number 1001430 Serial number 50.0TL01654321 Year Q1 / 16...

  • Page 7: Safety

    Harmonised document - HD 60364-7-712 (European implementation of the IEC standard) PV section of NEC 690 and sections in article 100, 690.4, 690.6 and 705.10 Tab. 1: Examples of standards specific to business premises Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 7...

  • Page 8: Protection Features

    The device is intended for indoor and outdoor applications and may only be used in countries for which it has been approved or for which it has been released by KACO new energy and the grid operator. Operate the device only with a permanent connection to the public power grid. The country and grid type se- lection must be commensurate with the respective location and grid type.

  • Page 9: Description Of The Device

    F Switch the DC isolator switches from 0 (OFF) to 1 (ON). Fig. 5: DC isolator switch 3.2.2 Electrical functions A potential-free relay contact is integrated into the device. Use this contact for one of the following functions: Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 9...
  • Page 10 Digital inputs You can extend the unit with additional digital inputs by means of an extension module (available from KACO customer service). This can be used to connect a ripple control receiver or a protective shutdown system.

  • Page 11: System Layout

    The reference counter is to be specified and installed by the power supply company. This measures the amount of en- ergy drawn. Device version S: An external DC isolator switch is required outside the devices. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 11...

  • Page 12: Technical Data

    IEC 61730 Class A. In no condition the design may result in a greater short circuit current than ISC of the inverter [See section 7.6.4} Page 30]. Page 12 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 13 60.0 TL3 - blueplanet 60.0 TL3 - blueplanet 60.0 TL3 - Basic XL - FR AC Output levels Output levels (AC) 60.0 kVA [@220V]; Nominal power 60.0 kVA [@230V]; 60.0 kVA [@240V] Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 13...

  • Page 14: General Data

    XL - HU XL - FR General Data Number of fans 2 x Ethernet, USB, RS485, 4 optional digital inputs/outputs, error relay (30V potential Interfaces free contact); 4-DI Controls 4-way button + 2 buttons Page 14 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 15 Menu languages DE; EN; FR; IT; ES; PL; NL; PT; CZ; HU; SL; TR; RO Display Graphical display 240 x 128 pixels + LEDs DC isolator switch Potential-free relay AC isolator switch Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 15...

  • Page 16: Environmental Data

    IIGB IIGM HUGM HUGX IIGX FRGX For installation in aggressive environmental conditions (e.g. possibility of corrosion), you must contact the KACO Sales team (pv-projects@kaco-newenergy.de). blueplanet 60.0 TL3 - blueplanet 60.0 TL3 - blueplanet 60.0 TL3 - blueplanet 60.0 TL3 -...

  • Page 17: Accessories

    60.0 TL3 M1 WM OD FRGX Accessories Accessory articles KACO order no. 3009902 String fuse (Fuse-PV 14x51MM 1100V 15A) (10pc) 3014824 String fuse (Fuse-PV 14x51MM 1100V, 15A) (12pc) String fuse (Fuse-PV 14x51MM 3012698 1100V 20A) Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 17...

  • Page 18: Transportation And Delivery

    Code (s) Shape of the connector Tightening torque External hexagon Spanner size or number Internal hexagon Torx Outer contour Slot Fig. 8: Form pattern Tab. 2: Key and description of tool codes Page 18 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 19: Assembly And Preparation

    – Must be accessible for installation and maintenance – Must be made out of heat-resistant material (up to 90 °C ) – Must be flame resistant – Minimum clearances to be observed during installation: [See figure 14 [} Page 21] Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 19...

  • Page 20: Unpacking The Device

    3. Pull the hood upwards to remove it and place the cardboard packaging to one side together with the mount and ac- cessories. 4. Set the unit with base and side sections upright. Page 20 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 21: Fastening The Mount

    3. Fix the mount to the wall using suitable mounting fixtures from the mounting kit. . NOTE: Make sure that the mount is oriented correctly. ð Proceed with the installation of the device. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 21...

  • Page 22: Installing And Securing The Device

    Ensure that the upper marking is flush with the upper edge of the outer contour when lowering the device. The outer contour of the mount must be flush with the outer contour of the housing. Page 22 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 23 1. Seal off any plug-in connections and screw fittings using sealing covers. 2. Prior to installation, check the inner area for condensation and if necessary, allow it to dry sufficiently before installa- tion. 3. Immediately remove any moisture from the housing. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 23...

  • Page 24: Installation

    Fig. 20: Connection area: blueplanet 60.0 TL3 XL DC isolator switch (not present in S version) Cable fitting for AC connection Cable fitting for DC connection (M version) Earthing bolt Connector for DC connection (XL version) Page 24 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 25: Making The Electrical Connection

    20 Nm Interfaces Cable diameter for cable fitting 11 - 17 (M25) 5 - 9.5 (M16) mm RS485 connection type Connector RS485 terminal cable cross-section 0.25 - 1.5 mm² Ethernet connection type RJ45 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 25...

  • Page 26: Connecting The Device To The Power Grid

    Fig. 22: Connection terminals - basic version Fig. 23: Connection terminals - M version Fig. 24: Connection terminals S version AC connection terminal DC connection with protection against contact Base AC overvoltage protection Base DC overvoltage protection DC isolator switch Page 26 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 27 10 Nm]. 2. Check secure fit of all connected cables. Fig. 28: 4-pole connection 3. Tighten the cable fittings [ W_68 / 20 Nm]. ð The device is connected to the power grid. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 27...

  • Page 28: Connect Pv Generator To Device

    If the type A is used, the insulation threshold must be set to greater than/equal to (≥) 200 kOhm in the “Para- meters” menu [see [See section 9.4.1} Page 41]]. For questions regarding the appropriate type, please contact the installer or our KACO new energy customer service.
  • Page 29 Model Recommended fuses Quantity KACO blueplanet 50.0 TL3 M1 WM OD IIGX PV- Fuse 14 x 51 mm1100V gPV max. 20A ↻ Suitable string fuse has been selected. ↻ NOTE: DC fuses can be ordered from our customer service team. Use PV fuses only.
  • Page 30 2. Before using the solar modules, check the vendor’s calculated voltage values against those actually measured. The DC voltage of the PV system must not exceed the maximum no-load voltage at any time. Page 30 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 31: Inserting The Overvoltage Protection

    The M and XL versions of the unit series blueplanet 50.0 TL3 allow you to upgrade the AC and DC lightning and overvoltage protection in a straightforward and cost-efficient manner. In this respect, please refer to the documentation “blueplanet 50.0-60.0 TL3 Application note – Installing a surge protection device” on our website. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 31...

  • Page 32: Creating Equipotential Bonding

    In doing so, disassembly of the circuit board may be necessary. All interfaces are located on the communication circuit board on the inside of the housing door. Page 32 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 33 3. Lay all the interface cables so that they are not under tension and the housing door has a full range of motion. ð Proceed with the shielding of the cables. Fig. 39: Lay the cables for interfaces 1 Signal cable 2 Threaded stud bolts 3 Cable ties Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 33...
  • Page 34 Note that the wire designations (DATA- and DATA+) for wires A and B may vary from one manufacturer to another. Fig. 41: RS485 interface wiring diagram 1 Inverter, terminal unit 4 Communication 2 Inverter 5 Power supply 3 Data monitoring unit Page 34 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 35 The digital input of the device is intended for connection of a Powador-protect. When using devices from other manufacturers or in combination with KACO inverters, interface switches as a minimum must be used for shut- ting down devices from other manufacturers.

  • Page 36: Sealing The Connection Area

    7 | Installation Manual Powador- ↻ Only suitable KACO inverters can be used. RS485 protect ↻ Housing doors open. BA BA GND GND 1. Undo the cable fittings [ W_20] 2. Pass the connecting cable through the cable fittings. RS485 3.

  • Page 37: Commissioning

    F Attach the provided safety sticker to the outside of the device housing where it is - Réseau de distribution -Panneux photovoltaïques clearly visible. Fig. 44: Safety label UTE C15-712-1 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 37...

  • Page 38: Configuration And Operation

    The "Feed-in" icon appears on the LD display. The device feeds into the grid. Feed-in mode with re- Power fed into the grid The green “Operating” LED is lit. duced power or measured values Page 38 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 39 ↻ You have left the desktop. The device displays the menu. F Use the up button or down button to navigate. Opening a menu item or a setting F Use the right arrow button and the Enter button. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 39...

  • Page 40: User Interface

    In normal operation, the backlighting is switched off. As soon as you press one of the control buttons, the backlighting is activated. If no button is pressed for an adjustable period of time, the backlighting switches off again. You can also activate or disable the backlighting permanently. Page 40 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 41: Menu Structure

    F Press Right arrow button. Measurements F Open Menu: Press the right arrow button or the OK button. Generator Displays the DC-side voltage, amperage and power. Grid Displays the AC-side voltage, amperage and power. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 41...
  • Page 42 ð Press any button to return to the previous menu. CSV log data F Open the menu: Press the Right arrow button or Enter button. Decimal separator F Select decimal sign for export of saved operating data. Page 42 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 43 2. Set the length of time without user input after which the backlight- ing of the LCD switches off. 3. Alternatively: Permanently activate or disable the backlighting by selecting "On" or "Off". Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 43...
  • Page 44 . NOTE: The menu options "Write access" and "Port" are only displayed with TCP activated. 1. Activate Modbus TCP. Write access F Allow Modbus TCP write access. Port F Set network port. Connection status Indicates the status of the network connection. Page 44 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 45 Parameters. On/Off Country NOTE: This option influences the country-specific operating settings of the device. Please consult KACO service for further information. 1. Enter the four-digit password using the 4-way button. The password is device-specific. 2. Confirm the entry with the Enter button.
  • Page 46 HR, HU, IE, IL, IN, IT, JO, JP, KR, NL, PL, PT, RO, TH, TR, TW, DU, ZA } Page 000 Underfreq. shutd. F Set limit value for the slow and fast underfrequency shutdown. Page 46 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 47 NOTE: Option to disable the MPP seek mode in order to oper- ate the device with a constant DC voltage. 1. Activate or disable the constant voltage controller. 2. Set value for constant voltage controller. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 47...
  • Page 48 2. Note: All the parameters are configurable here and via the WEB in- terface. [See section 9.4.2} Page 52] Not for IL, P(f) operation mode NOTE: More detailed information can be found in Off | Mode 1 | F Specify the operation mode. Mode 2 Page 48 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 49 F Set the idle power Q (in %) to a fixed value. Under-excited | F Select the type of phase shift. over-excited NOTE: Under-excited relates to inductive load, over-excited relates to capacitive load. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 49...
  • Page 50 Once the dead time has expired, the control circuit is no longer subject to a delay and the set transient time determines the transient behaviour. Page 50 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 51 F To show the last 5 grid fault messages, press the Show button. DK JP-50HZ JP-60HZ LU-NS TW Advanced features F Further parameterisation is possible via the web interface Information Open the menu: Press Right arrow button or Enter button. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 51...
  • Page 52 Dynamic grid support remains active on account of immunity to inter- ference. F Select a control process. Setting | Manual |Pre- defined zero current Priority – Reactive cur- F Select a control process. rent limitation | Active current priority Page 52 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 53 NOTE: The device checks the grid voltage and grid frequency. The grid feed-in mode begins if the measurements are within the set ranges. F Set minimum and maximum values ​ ​ f or connection. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 53...
  • Page 54 F Activate active grid influence by additional reactive power feed-in. Exten. ROCOF Frequency shift F Activate frequency shift. Off | On Pulse period repetition F Define period for detection. time 40 – 6000 [ms] Page 54 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 55 F Specify the activation status. Status Maximum apparent NOTE: The max. apparent power limits the internal power of power Slim the device. 1000 – S [VA] F Enter the value or set the value using the slider. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 55...
  • Page 56 1. Set frequency thresholds for activating the power limitation with with overfrequency overvoltage. 50.2 – 70 (Hz) 2. Set the frequency thresholds for activating the power limitation Activation threshold with undervoltage. with underfrequency 40 – 45 (Hz) Page 56 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 57 Deactivation threshold . NOTE: If the 10 min mean value of the voltage falls below the deactivation threshold, then the function is disabled. 230V – 276V 1. Specify the deactivation threshold. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 57...

  • Page 58: Monitoring The Device

    NOTE With regard to the selection of country settings, KACO new energy attests: 1. that the relevant certificates are only valid if the corresponding country settings have been selected. 2. that all configured grid parameters must be configured in accordance with the requirements of the grid op- erators.
  • Page 59 4. Save the file. NOTE Regardless of the display data selected in the “Choose view” area, an export file always contains all measure- ment data and yield data available for the selected period. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 59...

  • Page 60: Performing A Firmware Update

    1. Never disconnect the DC and AC power supply for or during a firmware update. 2. Do not remove the USB stick during the firmware update. Preparing a firmware update 1. Download the firmware update file from the KACO web site www.kaco-newenergy.com and store it on your hard disk.

  • Page 61: Access Via Modbus

    - Operation mode in the menu on the device or on the web interface. 2. If necessary, allow write access. 3. Set up the Port for access. [Default: 502] ð Access via Modbus enabled. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 61...

  • Page 62: Specifications

    10.1.3 Reactive power functions The following functions for controlling the reactive power are implemented in the devices listed above: – cos ϕ constant – Q constant Page 62 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 63 (PT-1) with a time constant of Tau=200ms. The specified reactive power can be configured on the display or by way of communication via the KACO RS485 protocol and MODBUS/SunSpec. If the applicable grid code stipulates that the reactive power should react to the target value slower than the configured Tau=200 ms by way of a defined gradient or settling time, this gradient or settling time must be im- plemented in the system control.
  • Page 64 With a change of the active power or the lock-in and lock out 200 – 30000 [ms] voltage, the cos ϕ is changed according to a PT-1 characteristic curve with a settling time of 5 Tau. Page 64 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 65 Minimum cos ϕ in over-excited operating mode (in-feed). Minimum cos ϕ in under-excited operating mode (in-feed). Minimum cos ϕ in over-excited operating mode (charge). Minimum cos ϕ in over-excited operating mode (charge). Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 65...

  • Page 66: Active Power Regulation

    This means that the inverter has not received a new power limit value. If the timeout is set to 0 seconds, this is suitable for lasting preservation. Settling time 1000 [ms] Non-configurable settings 1s. [VArPct_RmpTms] Page 66 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 67 Hysteresis mode Off: In non-hysteresis mode, the active power is increased immediately with dropping voltage. Off | On On: In hysteresis mode, the power is not increased with dropping voltage. . Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 67...
  • Page 68 54 [} Page 68], P die Momentanleistung zum Zeitpunkt der Aktivierung und P die Referenzleistung. In the case of PV inverters from KACO, P is defined as P , the current power at the time of activation. f is the current frequency and f is the specified activation threshold.
  • Page 69 Action in this menu/meaning spec. Set- Setting tings level P(f) operation mode Activate or deactivate function. Off | Mode 1 | Mode 1: With hysteresis activated. Mode 2 Mode 2: Without hysteresis activated. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 69...
  • Page 70 Note 2: This function is stipulated as a requirement by some domestic grid connection directives in order to prevent any negative impact on is- land detection. However, P(f) has no negative impact on KACO's en- hanced island detection. Frequency of the max-...

  • Page 71: Frt

    If a reduction in power occurs, the power is brought back up to the pre-fault level within 100 ms of the voltage returning. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 71...
  • Page 72 For the positive and negative phase sequence voltage, Δu equates to the difference between the pre-fault voltage and the current voltage based on the reference voltage. The pre-fault voltage is calculated as a 1-min mean value. Page 72 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 73 Nominal value of the phase/neutral conductor voltage used as a refer- ence voltage for formula (1) and (3). Adjustable in the range from level 1 U< - U> undervoltage protection to level 1 overvoltage protection. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 73...
  • Page 74 If due to a voltage jump in accordance with formula (1) and the con- figured dead band is activated, the dynamic grid support is deactivated 1000 – 15000 ms via fast feeding of residual current after the minimum support time elapses. Page 74 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 75: Other Grid-Supporting Functions That Are Effective In The Case Of Active Power

    Some grid connection rules insist that the agreed reactive power be supplied from every operating point of the plant without a reduction in the actual active power. Considering the fact that all KACO TL3 inverters have a semi-circular P-Q operating range, a reduction in the active power is, however, required during operation at maximum active power because an apparent power reserve is not available.
  • Page 76 The actual power of the inverter may vary freely below this limit due to a possible fluc- tuation in the available power or the target value, but at no time increases above the absolute power limit. Page 76 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 77: Advanced Islanding Detection

    Enhanced island detection method KACO new energy's advanced islanding detection uses a reliable islanding detection strategy based on the char- acteristic differences between an interconnected grid and an islanded grid, thus ensuring reliable fast detection and prevention of false tripping.
  • Page 78 1 active, the device has switched to zero current mode and will recommence feed-in after only 100 ms. With stage 2 active, the device has switched off and the set reconnection conditions shall apply. Page 78 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 79: Maintenance And Troubleshooting

    Danger of death due to penetrating fluid Serious injuries or death can result if moisture enters the system. 1. Only use completely dry objects to clean the device. 2. The device should only be cleaned from the outside. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 79...
  • Page 80 . NOTE: Do not use any aggressive cleaning agents and ensure that no Fig. 68: Clean the cooling fins other components come into contact with fluids. ð Cleaning completed - if necessary, remount the fans. 1 Heat sink Page 80 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 81: Replacing The Fan

    2. Open the relevant DC fuse holder. 3. Use a multimeter to check the DC fuse for flow. - Flow: Reinsert DC fuse in the fuse holder and close. - No flow: Replace DC fuse. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 81...

  • Page 82: Shutting Down For Maintenance / Troubleshooting

    Replacing the string fuses 1. Remove defective DC fuse from the fuse holder. . NOTE: DC fuses can be ordered from the KACO customer service team. 2. Insert DC fuse of the same type into the fuse holder. 3. Ensure the DC fuse holder is completely closed after fitting.

  • Page 83: Faults

    Severe injuries or death may occur if the cables and/or terminals/busbars in the device are touched. 1. If a fault occurs, notify an appropriately authorized and qualified electrician or KACO new energy GmbH Service.
  • Page 84 (after the start-up period is complete), the device’s hardware is probably damaged. › Contact KACO Service to test the hardware. The device is displaying Faults in the grid. The device continues to operate as normal without losses to...

  • Page 85: Fault Messages

    B = Operator’s responsibility ; E = The indicated work may only be carried out by an authorised electrician. ; K = The in- dicated work may only be carried out by a service employee of KACO new energy GmbH! 11.8...
  • Page 86 Current and voltage measurement in the Switch off the device are not plausible. device entirely (switch off AC + DC for min. 5 minutes), if the fault occurs again, contact the service department Page 86 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 87 Line failure: undervoltage L1 Voltage on Lx below the set limit value. The Check AC voltage at limit value is country-dependent. connection termin- als. Check setting values in the para- meters menu. Con- tact the service de- partment if the er- ror persists Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 87...
  • Page 88 - Trip zone (overcurrent DC & Sat- modules on the DC uration monitoring DC) - Overcurrent DC - side are connected Overvoltage DC correctly. If neces- sary, contact a qual- ified electrician! Page 88 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 89 The power section is defective. Notify KACO Ser- vice! Self test error relay 2 See description in the event of an error 95 See action in the event of an error 95 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 89...
  • Page 90 (PV+ or PV-) - DC link stability (measure to PE) may exhibit a difference of no more than +-2V during pre-synchronisation. - the internal voltage could not be aligned suffi- ciently with the AC grid voltage. Page 90 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 91 AC voltage can in- dicate this connec- tion problem. Protection shutdown line See description in the event of an error 203 See action in the volt. L2 event of an error Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 91...
  • Page 92 NOTE Fault number not found? If fault numbers are displayed on the device but are not listed here, then it is usually necessary to have this looked at by your installation partner. Page 92 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 93: Decommissioning And Dismantling

    2. Unfasten the cables (L1/L2/L3/N/PEN) from the AC connection terminal [ T_45]. 3. Detach the PE line from the earthing bolt [ T_20]. 4. Unfasten the cable fitting and remove the cables through the cable fitting [ W_36]. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 93...

  • Page 94: Uninstalling The Device

    - S, Basic + M version: detach from the connection terminals and furnish with protective caps. - XL version: detach from the DC plug connectors and furnish with protective caps. ð The device is uninstalled. Proceed with disassembly. Page 94 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 95: Disassembling The Device

    2. Store in accordance with the technical data > [See section 4.3} Page 16] ↻ Device packaged. F Store the device at a dry location, in accordance with the ambient temperature range [See section 4.3} Page 16]. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3 Page 95...

  • Page 96: Disposal

    Unit: Do not dispose of faulty devices or accessories together with household waste. Ensure that the old devices and any accessories are disposed of in a proper manner. Packaging: Ensure that the transport packaging is disposed of properly. Page 96 Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...

  • Page 97: Service And Warranty

    Service and warranty | 14 Service and warranty If you need help solving a technical problem with one of our KACO products, please contact our service hotline. Please have the following information ready so that we can help you quickly and efficiently: –...

  • Page 98: Appendix

    KACO new energy GmbH Werner-von-Siemens-Allee 1 74172 Neckarsulm, Germany Product description Photovoltaic feed-in inverter Type designation KACO blueplanet 50.0 TL3 M1 WM OD IIGS [1001722; 1001751] KACO blueplanet 50.0 TL3 M1 WM OD IIGM [1001336; 1001582; [KACO art. No.] 1001613; 1001851] KACO blueplanet 50.0 TL3 M1 WM OD HUGM [1001780]...
  • Page 99 Unauthorised modifications to the supplied devices and/or any use of the devices that is contrary to their intended use render this Declaration of Conformity null and void. This declaration of conformity is issued under the sole responsibility of KACO new energy GmbH. Kaco blueplanet 50.0TL3 Kaco blueplanet 60.0TL3...
  • Page 100 Werner-von-Siemens-Allee 1 · 74172 Neckarsulm · Germany · Tel. +49 7132 3818-0 · Fax. +49 7132 3818-703 · info@kaco-newenergy.de · www.kaco-newenergy.de...

This manual is also suitable for:
