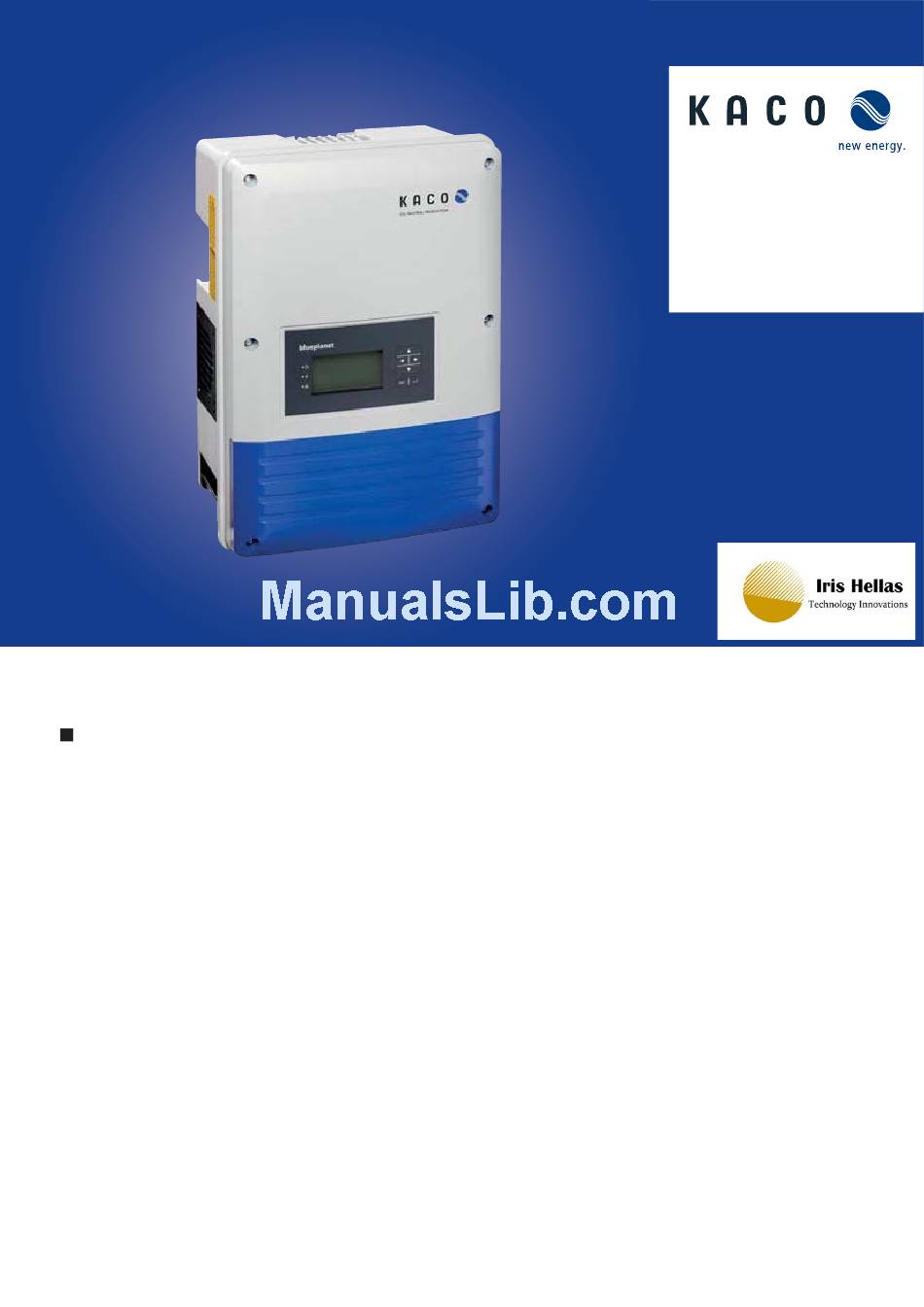

Page 1: Operating Instructions
blueplanet 5.0 TL3 | 6.5 TL3 7.5 TL3 | 8.6 TL3 9.0 TL3 | 10.0 TL3 Operating Instructions English translation of German original These instructions form part of the product and must be observed. They must also be stored in a place which is freely accessible at all times. - Page 2 The copyright for these operating instructions is held solely by KACO new energy GmbH.
-
Page 3: Table Of Contents
Connection to the power grid ......20 Disposal ........... 56 Preparing the DC connection ......21 Appendix ..........57 Connecting the PV generator ......23 13.1 EU Declaration of Conformity ......57 Grounding the housing ........25 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 3... -
Page 4: General Information
Failure to observe this warning may lead to serious bodily injury or death. CAUTION Low-risk hazard Failure to observe this warning will lead to minor or moderate bodily injury. Page 4 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 5: Target Group
In particular, be sure to observe the standard IEC-60364-7-712:2002 "Requirements for special installations or loca- tions – solar photovoltaic (PV) power supply systems". • Ensure operational safety by providing proper grounding, conductor dimensioning and appropriate protection against short circuiting. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 5... -
Page 6: Proper Use
• Modifying the device • Standalone operation. Protection features The following monitoring and protective functions are integrated into KACO inverters: • Overvoltage conductors/varistors to protect the power semiconductors from high-energy transients on the grid and generator side • Temperature monitoring of the heat sink •... -
Page 7: Description
Fault signal relay The potential-free relay contact closes as soon as there is a fault during operation. You use this function, for example, to signal a fault visually or acoustically. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 7... -
Page 8: Usb Interface
In addition to the monitoring via the Ethernet interface, the monitoring can be executed via the RS485 interface. For monitoring your PV system using the RS485 interface, KACO new energy GmbH offers monitoring devices: Only the RS485 interface continues to transmit data if the inverter in an inverter group fails. - Page 9 Some power supply companies also allow the installation of your own calibrated meters. Selective main switch If you have questions about the selective main switch, contact your power supply company. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 9...
-
Page 10: Technical Data
98.3 98.3 European efficiency [%] 97.4 97.6 97.7 Self consumption: night [W] Feed-in starts at [W] Circuit design Transformerless Grid monitoring Country-specific Ground fault monitoring Table 1: Electrical data Page 10 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... - Page 11 98.3 98.3 European efficiency [%] 97.9 97.9 97.9 Self consumption: night [W] Feed-in starts at [W] Circuit design Transformerless Grid monitoring Country-specific Ground fault monitoring Table 2: Electrical data KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 11...
-
Page 12: Mechanical Data
ARC fault circuit protection Interface protection according to country specific requirements, details see manual • Disposal information No galvanic separation 4004945 • Certification marking, CE marking. Figure 4: Name plate Page 12 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 13: Transportation And Delivery
Packaging (folding cartons) (H x W x D (mm)) 390 x 510 x 660 Total weight [kg] 35.2 Figure 5: Transportation of the inverter Table 4: Dimensions and weight KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 13... -
Page 14: Mounting
› Immediately remove dirt, especially on vents. › Failure to observe these warnings may lead to inverter damage which is not covered by the KACO new energy GmbH manufacturer warranty. Page 14 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 15: Unpacking
For upright installation outdoors: Weather-proof base required. Unpacking Figure 8: Unpacking the unit Figure 9: Erect the device Carton Opening for erection purposes Protective packaging Centre of gravity inverter KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 15... -
Page 16: Installing The Wall Holder
Figure 11: Position of wall holder / suspension Cover for connection area Wall bracket Screws for mounting (2x Torx) Screws for mounting Bracket with detachment protector Fixings for mounting Page 16 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 17: Installing The Unit
Attach the provided safety sticker visibly to the outside of ATTENTION Isoler les deux sources Présence de deux the inverter housing. avant toute intervention sources de tension - Réseau de distribution -Panneux photovoltaïques KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 17... -
Page 18: Electrical Connection
Switch the DC isolator switches to 0 to remove the cover. 2. Carefully unlatch cover at the marked position using a screwdriver. 3. Remove cover and store for connection 4. Surveying the connection area » Configure AC connection plug. Page 18 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 19: Kaco Operating Instructions Blueplanet 5.0 Tl3 - 10.0 Tl3
10. Press contact carriers into the housing with an audible "click". 11. Secure the housing with a screwdriver (size 30). Tighten the cable fitting using a torque of 6.5 Nm. » Make the electrical connection. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 19... -
Page 20: Connection To The Power Grid
The inverter monitors this voltage. If it exceeds the country-specific grid overvoltage limit value, the inverter switches off. › Ensure that the conductor cross-sections are sufficiently large or that the cable lengths are suffi- ciently short. Page 20 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 21: Preparing The Dc Connection
If an A-type RCD is used, the insulation threshold value in the “parameter” menu must be over (>) 200kOhm. (Chapter 8.3 on Page 40). For questions regarding the appropriate type, please contact your installer or our KACO new energy customer service. -
Page 22: Kaco Operating Instructions Blueplanet 5.0 Tl3 - 10.0 Tl3
In accordance with IEC 61730 Class A, connected PV modules must be dimensioned for the DC system voltage provided, and at least for the value of the AC grid voltage. Page 22 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 23: Connecting The Pv Generator
In the expected temperature range of the generator the values for the no-load-voltage and the short circuit current must never exceed the values for U and I in accordance with the technical ocmax scmax data. (See Table 1 on page 10) KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 23... -
Page 24: Kaco Operating Instructions Blueplanet 5.0 Tl3 - 10.0 Tl3
Severe injury or death will result if the live connections are touched. When there is solar radiation, DC voltage will be present at the open ends of the DC cables. › Do not touch the exposed ends of the cables. › Avoid short circuits. Page 24 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 25: Grounding The Housing
All interfaces are located on the connection circuit board behind the cover for the connection area. Use the cable fittings and plug connections provided (see Figure 30 on page 26). KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 25... - Page 26 Figure 30: Connection area: Connection and assignment of the interfaces 1 Interface connections / pin assignment Cable fitting for RS485 connection cable 2 Cable fitting (M25) for Ethernet connection cable DIP switch for terminating resistor R Page 26 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3...
- Page 27 Configure the Ethernet interface in the configuration menu. Connect the Ethernet cable to the network or a computer. Configure the Ethernet settings and the web server in the Settings/Network menu. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 27...
- Page 28 Connecting "Inverter Off" NOTE The Powador-protect digital output can only be used with suitable KACO inverters. When using devices from other manufacturers or in combination with KACO inverters, external bus coupler circuit-breakers as a minimum must be used for shutting down devices from other manufacturers.
-
Page 29: Sealing The Connection Area
2. Connect the PV generator using the DC isolator switch (0 » The inverter begins to operate. » During initial start-up: Follow the instructions of the New Connection Wizard. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 29... -
Page 30: Configuration And Operation
The green “Feed-in” LED is illuminated. The “Feed-in” icon appears on the desk- top. The inverter feeds into the grid. * The waiting period ensures that all network parameters are in the permissible ranges. Page 30 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... - Page 31 Calculating efficiency by measuring the current and voltage values can lead to misleading results due to the tolerances of the measurement devices. The sole purpose of these measured values is to monitor the basic operation of the system. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 31...
-
Page 32: Control Buttons
Use the right and left arrow buttons. Changing an option/the value of an input field Use the up and down arrow buttons. Saving changed settings Press the Enter button. Page 32 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 33: Initial Start-Up
Display on the LCD Figure 36: Main menu Selected menu item Menu items of the active menu level Name of the active menu level Menu items of the next lower menu level KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 33... - Page 34 Menu level (0, 1, 2, 3) Submenu available Display menu Country-specific setting Option menu FR-HTA Country and grid type-specific setting Password protected menu (password can be requested from KACO Service) Coun- menu Display/ Action in this menu/meaning try-spec. level setting...
- Page 35 Save to USB Select the data to be exported (year, month or day). 2. Press the Enter button. » The inverter writes the data to a connected USB flash storage device. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 35...
- Page 36 Logging interval ings. The inverter supports the backing up of all recorded yield data to a connected USB storage device. Log data backup Activate or deactivate log data backup. Page 36 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3...
- Page 37 On: The inverter attempts to connect to the Pow- ador-web web portal. Powador-web Off: The connection to Powador web is deactivated. Activate/deactivate function. Modbus TCP Set network port. Connection status Indicates the status of the network connection: KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 37...
- Page 38 V VDE 0126-1-1:2006. The limit BG, FR, CZ, Voltage drop value can be set from 0 to 11 V in 1 V increments. Specify the switch-off value for the voltage drop (0 to 11 V). Page 38 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3...
- Page 39 Set value for constant voltage control (200 - 800 V). NOTE: For voltages below the minimal MPP voltage the possible input power is reduced. The input current is limited here to 11A per input. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 39...
- Page 40 Off: The inverter does not check whether a Pow- ador-protect is integrated into the PV system. Set threshold value (in 1 kOhm steps) at which the Iso.resistor insulation monitor reports a fault. Page 40 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3...
- Page 41 Power range set as % of rated power, in which the GB, IT, KR network support process is active. Lock-out power Time constant Set the response speed of the control. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 41...
-
Page 42: Monitor Inverter
100 mA. If a device with a higher power requirement is used, the power supply for the USB interface automatically shuts down to protect the inverter from damage. Page 42 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 43: Web Server
Feed-in power • Generator power • Status • Generator voltage • Grid power • Unit temperature • Grid voltage In order to display and export yield data, proceed as follows: KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 43... -
Page 44: Performing The Software Update
Do not remove the USB stick during a software update. Preparing for the software update Download the software update file from the KACO web site and store it on your hard disk. 2. Copy the update file (.KUF) onto the USB stick. -
Page 45: Maintenance/Troubleshooting
In case of damage, notify your installer. Repairs may only be carried out by authorised electricians. NOTE There are components in the housing of the inverter which may only be repaired by our KACO customer service team. The inverter should be checked for proper operation by a qualified electrician at regular intervals. -
Page 46: Shutting Down For Maintenance And Troubleshooting
› Avoid short circuits. › Do not open the inverter until these two steps are complete. › After shutdown, wait at least five minutes before working on the inverter. Page 46 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 47: Disconnecting Connections
4. Use a screwdriver to unlock the contact carrier on both sides. 5. Remove the contact carrier from the housing. 6. Unfasten and remove the screws on the contact carrier. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 47... -
Page 48: Faults
B = Action of the operator E = The indicated work may only be carried out by an authorised electrician. K = The indicated work may only be carried out by a service employee of KACO new energy GmbH! Page 48... - Page 49 Due to these tolerances, the daily the yields on the elements in the yields shown may deviate from the values on the feed-in meter feed-in meter. inverter. by up to 15%. No action KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 49...
-
Page 50: Fault" Messages On The Display/Led
The inverter feeds back into the grid again after a country-specific time period. Details regarding the fault or operating status can be found either on the display or in the data that was recorded through the RS485 interface. Page 50 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... - Page 51 B = Action of the operator E = The indicated work may only be carried out by an authorised electrician. K = The indicated work may only be carried out by a service employee of KACO new energy GmbH! Status...
- Page 52 The inverter does not begin feeding voltage too high into the grid until the PV voltage falls below a specified value. Table 7: Operating status and fault messages on the display Page 52 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3...
- Page 53 Too much power has been fed into the Notify authorised down overcurrent grid. Complete disconnection of the electrician / KACO device. Service Table 7: Operating status and fault messages on the display KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 53...
-
Page 54: Service
Operating status and fault messages on the display Service If you need help solving a technical problem with one of our KACO products, please contact our service hotline. Please have the following information ready so that we can help you quickly and efficiently: •... -
Page 55: Shutdown/Disassembly
2. Remove the interface cable. 3. Detach DC connection plug. 4. Detach AC connection plug. 5. Open the cable fittings. 6. Pull out the cables. » The inverter is uninstalled. Proceed with disassembly. KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 55... -
Page 56: Disassembling The Unit
Unit: Do not dispose of faulty inverters or accessories together with household waste. Ensure that the old unit and any accessories are disposed of in a proper manner. Packaging: Ensure that the transport packaging is disposed of properly. Page 56 KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3... -
Page 57: Appendix
Unauthorised modifications to the supplied units and/or any use of the units that is contrary to their intended use render this Declaration of Conformity null and void. Neckarsulm, 20/04/2016 KACO new energy GmbH p.p. Matthias Haag Management team for technology / CTO KACO Operating Instructions blueplanet 5.0 TL3 - 10.0 TL3 Page 57... - Page 60 Carl-Zeiss-Strasse 1 · 74172 Neckarsulm · Germany · Phone +49 7132 3818-0 · Fax +49 7132 3818-703 · info@kaco-newenergy.de · www.kaco-newenergy.de...
