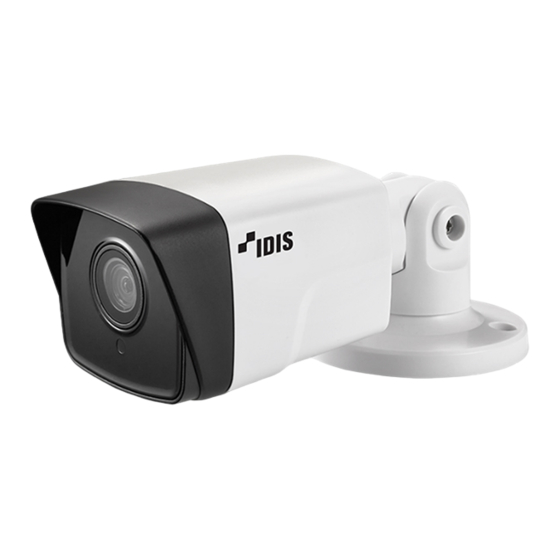

- Page 1 DC-T Series Installation Manual DC-T4217WRX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result in appliance is operated.
- Page 4 Warning: This product emits infrared light. Do not look into the IR LED. FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Part 1 – Introduction Product Features • IP filtering, HTTPS, SSL, IEEE 802.1X, and configurable user authority levels for greater security • Network bandwidth limitation and MAT features for DC-T4217WRX is an IP-based network camera that more efficient use of network bandwidth compresses and transmits video over ethernet. -
Page 7: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. RJ45 moduler jack, RJ45 waterproof rubber ring, RJ45 Network Camera connector protect cover, cable waterproof rubber ring, RJ45 connector back cover... -
Page 8: Overview
Part 1 – Introduction Overview Product color and design may vary depending on the model. Body Cable • Network Port Connect a network cable with an RJ-45 connector to this port. If using a PoE switch, you can supply power to the camera using an ethernet cable. -
Page 9: Waterproof Cable Installation
Part 1 – Introduction Waterproof Cable Installation Plug in the network cable. RJ45 waterproof rubber ring RJ45 modular jack RJ45 waterproof rubber ring RJ45 modular jack RJ45 connector RJ45 waterproof rubber ring protect cover cable waterproof rubber ring RJ45 modular jack (The waterproof rubber ring is fastened to the connector protect cover.) RJ45 connector back cover... -
Page 10: Installation
Part 1 – Introduction Installation Dimensions • Check the wall or ceiling to see if it needs to be 182.7mm reinforced. The camera may fall off if the wall or 78.3mm 74.7mm 29.7mm ceiling is not strong enough to support its weight. •... -
Page 11: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Power Network Camera Monitor Out Power Network Remote Monitoring DirectIP™ NVR makes it easy to use cameras without extra network configurations. Each camera can be controlled via the DirectIP™... -
Page 12: With Non Directip™ Nvr-Based Layout
Part 2 - Camera Connection With non DirectIP™ NVR-based Layout Network Camera Network Remote Monitoring (IDIS Solution Suite Compact or IDIS Web) Remote Recording (IDIS Solution Suite Compact) Control the camera over the network from software installed on a computer. Ideal for using the camera over the network from a remote location. -
Page 13: Part 3 - Appendix
Part 3 - Appendix Troubleshooting Problem Check The main unit won't turn • Check the power cable connection. • Check the power outlet. PoE switch isn't being Check the grounding status of the I/O device connected to the camera and the PoE recognized. -
Page 14: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length f=2.8mm / f=4.0mm / f=6.0mm Aperture F2.0 / F1.6 / F1.6 Angular Field of DC-T4217WRX 111.6°(H), 61.45°(V), 127.3°(D) - Page 15 Part 3 - Appendix Network Video Compression H.265, H.264 (Main Profile), M-JPEG Bitrate Control CBR / VBR Max. Frame Rate 30fps : 1920 x 1080 Supported Resolution 1920x1080, 1280x720, 640x360, 352x240 Multi-Video Streaming Quadruple Ethernet RJ45(10/100BASE-T) General Vandal Resistance Out-door Ready IP66 Operating Temperature -20°C ~ +55°C (-4°F ~ +131°F)
- Page 16 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
