DC-D4216RX(-A)
3
4
5
6
7
8
DC-D4216WRX(-A)
1
2
4
5
6
!
9
7
0
8

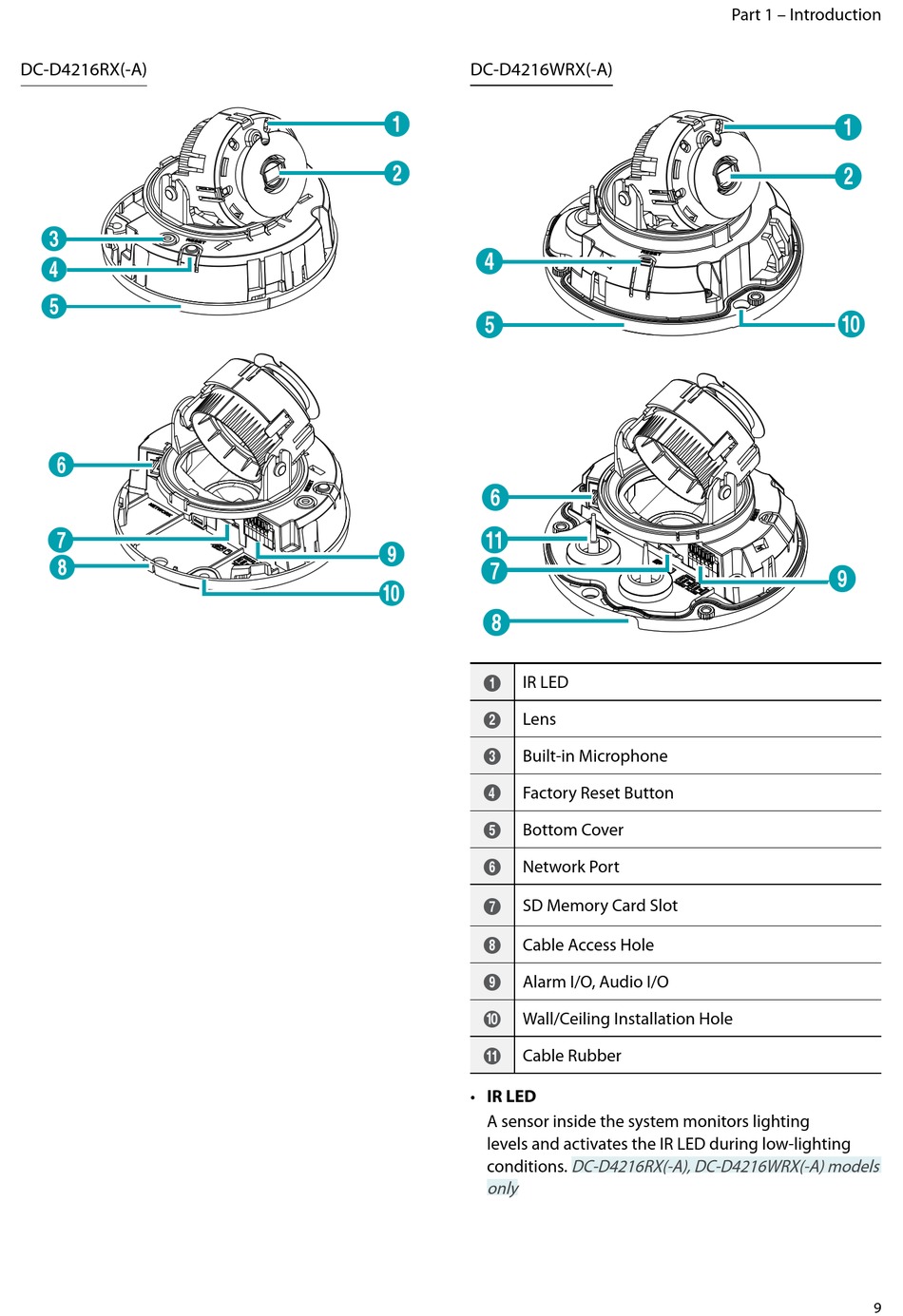

IR LED
1
Lens
2
Built-in Microphone
3
Factory Reset Button
4
Bottom Cover
5
Network Port
6
SD Memory Card Slot
7
Cable Access Hole
8
Alarm I/O, Audio I/O
9
Wall/Ceiling Installation Hole
0
Cable Rubber
!
• IR LED
A sensor inside the system monitors lighting
levels and activates the IR LED during low-lighting
conditions.
only
Part 1 – Introduction
DC-D4216RX(-A), DC-D4216WRX(-A) models
