Connectivity
The Pinnacle systems can be controlled remotely by a mobile
device or desktop PC/MAC.
K-array Connect
K-array Connect is the mobile app that
allows to direct manage and control one
Kommander-KA amplifier at a time with
wireless with a mobile device (smartphone
or tablet).
Download the K-array Connect mobile APP
from the dedicated store of your mobile
device. Refer to "K-array Connect Mobile
App", page 12 for details about the system configuration.
K-framework3
The K-array K-framework3 is the managing and control
software dedicated to professionals and
operators looking for a powerful tool for
designing and managing a large number
of units in demanding applications (see
"K-framework3 Software",
details). Download the K-framework3 software
from K-array website.
Connectivity Reset
Keep pressed the RESET button for 10 to 15
seconds in order to:
• Revert the wired IP addressing to DHCP;
• Activate the built-in Wi-Fi and reset the wireless
parameters to the default SSID name and
password (see "K-array Connect Mobile App",
page 12 for details).
12
page 19 for
WINDOWS and OSX software
K-framework3
K-array Connect Mobile App
The K-array Connect mobile app is designed to allow any
Android or iOS mobile device (smartphone or tablet) to
connect and manage any Pinnacle-KR system via the Wi-Fi
connection.
Connection and Discovery
The K-array Connect mobile app can connect to the
Pinnacle-KR system both directly to the built-in Wi-Fi and
wireless to an access point connected to a LAN where the
Thunder-KS are wired to.

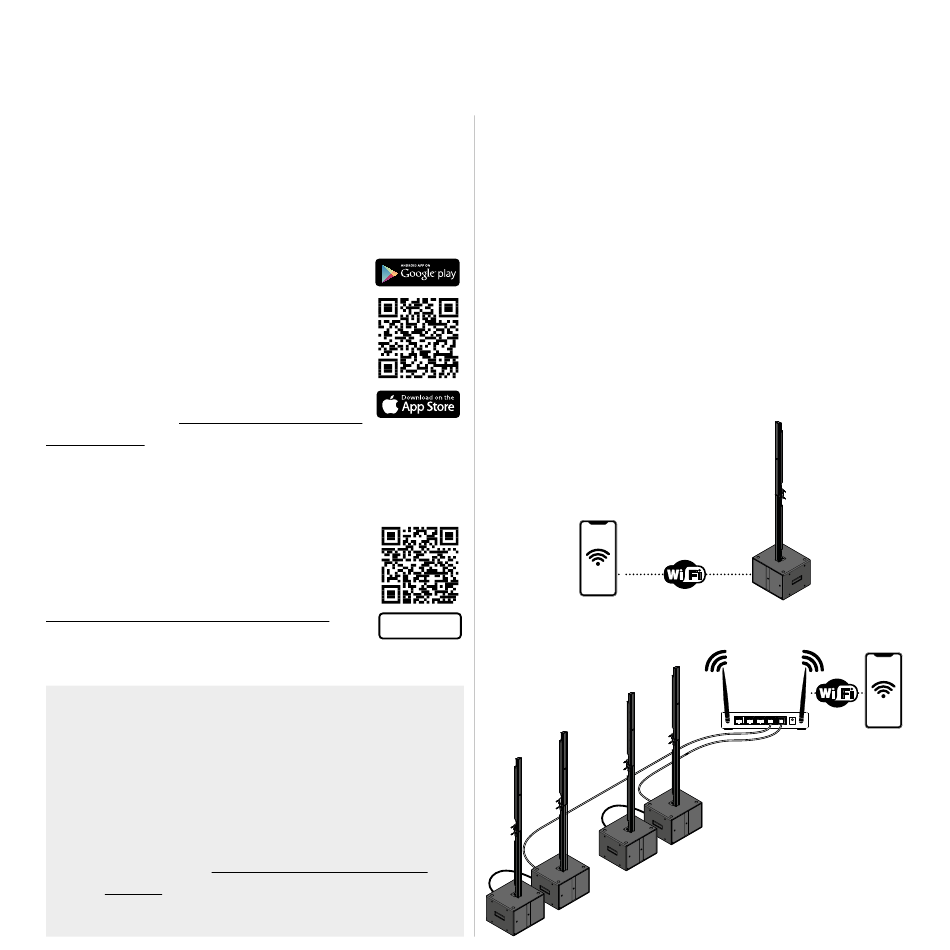

Connection to a single Thunder-KS
Wireless connection
to a Thunder-KS
subwoofer
Passive Subwoofer
Active Subwoofer
Passive Subwoofer
Active
Subwoofer
Wireless connection
to a network of
Thunder-KS subwoofers
Active Subwoofer
