Pinnacle-KR
Assembly Manual
5
6
8
5 mm hex key

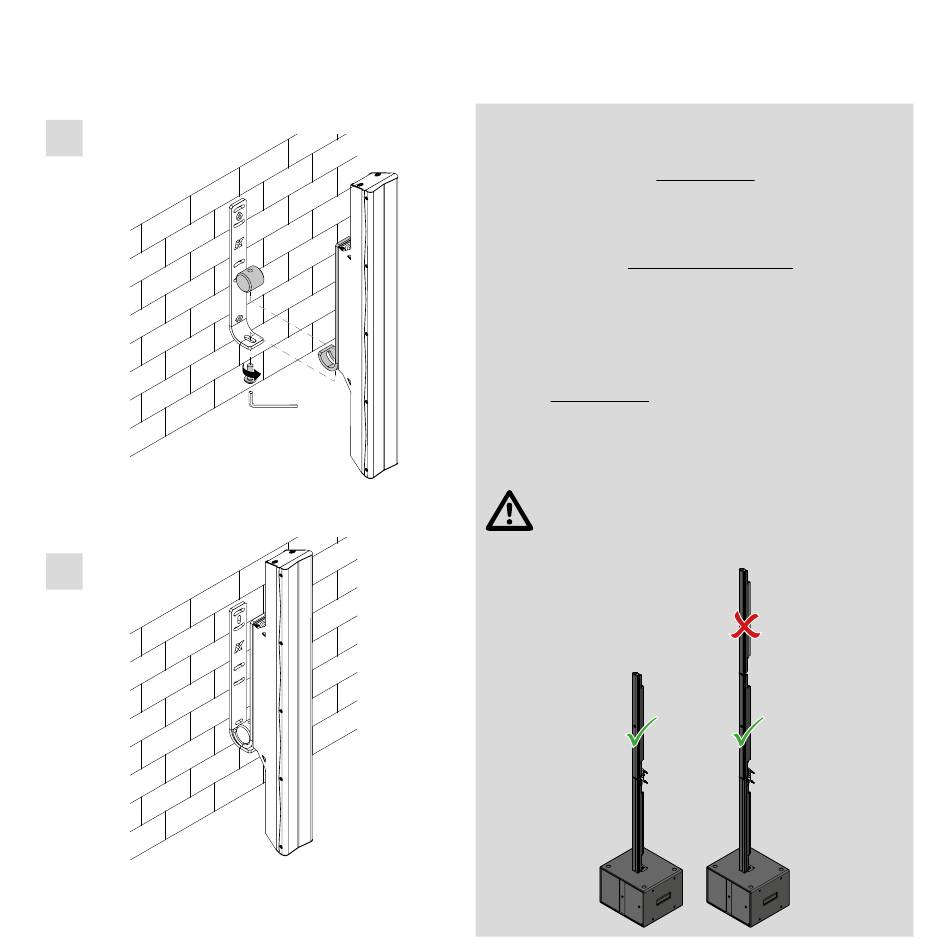

Assembly: ground stack
1. Screw the K-JOINT3 hinge arms to the column
loudspeaker(s) (see "Joint", page 4).
2. Set firmly the Thunder-KS subwoofer on a even
horizontal surface.
3. Assemble the K-FOOT3 on top of the Thunder-KS
subwoofer (see "Ground Stack", page 5). The
Pinnacle-KR102 II system is provided with a pole
shaped as a Kobra loudspeaker (K-KKPOLE) that can
be screwed directly on top of the subwoofer.
4. Join the first loudspeaker to the K-FOOT3 – or to the
K-KKPOLE according to the Pinnacle system model –
(see "Joint", page 4).
5. If available, join the further loudspeakers to the one
already assembled on top of the subwoofer.
The total height of the column loudspeakers
shall not exceed 2 m (6.6 ft),
i.e. no more than two meter-long units shall be
stacked on top of the subwoofer.
