K-array Redline KR100S User Manual

USER'S MANUAL
K
KR100S
K-array is the new voice that sings aloud, "outside the
chorus", and whose performance is better than any
other products. Born on-the-road, in the PA world,
where you get no discount, you have to give your
best as fast as you can, often with a "compressed"
budget, K-Array systems have been designed to
give precise answers to precise needs.
K-Array systems are driven by new generation
digital engines, with power/dimension/weight
ratios that are ten times better than any other
professional products; these systems can be
remotely controlled and come with a lot of
on-board software.
K-array systems can shape their
performance following your taste and
needs. Inside K-array systems you will
find something that only K-array can
offer: the best in technology, proudly
conceived, designed and produced in
Italy. If they were cars, they would be
Ferrari.
Don't agree to pay for a simple
brand, claim performance, and don't
believe those who maintain that
these products are only for few
people, the only truth is that K-
array systems are unique, but
affordable and within
everybody's reach!
HP Sound Equipment
REV03
structure and suspension engineered for maximum linear
excursion.
The ultra-light reflex cabinet is fitted with two pocket handles and
one 35mm pole mounting point for easy installation with every
satellite speaker on it. It features large area porting to reduce air noise.
The KR100S
efficiency drive units with neodymium magnet structure and suspensions
engineered for maximum linear excursion and minimum noise problems.
The ultra-strong chassis ensures high resistance and durability also with
hardest work conditions.
K-array
quality system.
• To reduce the risk of electric shock, disconnect the loudspeaker from the AC mains
before installing audio cable. Reconnect the power cord only after making all signal
connections.
• Connect the loudspeaker to a two-pole, three wire grounding mains receptacle. The
receptacle must be connected to a fuse or circuit breaker. Connection to any other type of
receptacle poses a shock hazard and may violate local electrical codes.
• Do not install the loudspeaker in wet or humid locations without using weather
protection.
• Do not allow water or any foreign object to get inside the loudspeaker. Do not put objects
containing liquid on, or near, the unit.
• To reduce the risk of overheating the loudspeaker, avoid exposing it to direct sunlight. Do not
install the unit near heat emitting appliances, such as a room heater or stove.
• This loudspeaker contains potentially hazardous voltages. Do not attempt to disassemble the
unit. The unit contains no user serviceable parts. Repairs should be performed only by factory
trained service personnel.

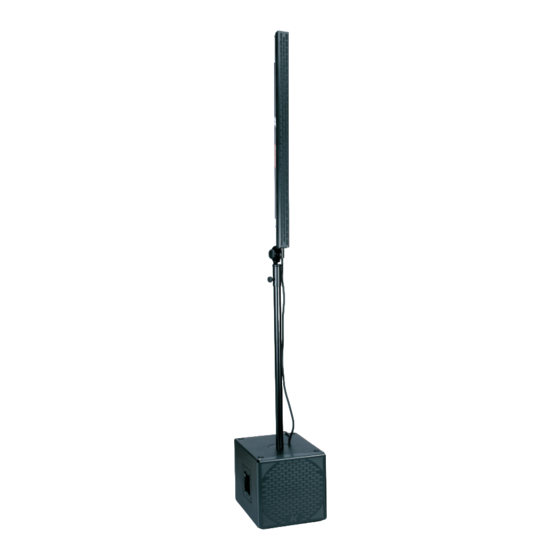

The KR100S is a high performance ultra-slim powered two
way system designed for use with small to medium wavefront
systems, in both mobile and install applications. The
KR100S includes two KL12ma powered subwoofers and 2
KR100 1mt line array satellites.
The KL12ma features a 1000 watt 12" drive unit with magnet
ultra-slim satellite features a line array of 2" high
All the KR100S
R&D department and custom made under

SAFETY INSTRUCTIONS

ENGLISH
components are designed by
K-array control
