K-array Pinnacle-KR II Assembly Manual page 15

Assembly: suspended
1. Use the K-framework3 simulator software in order to
design the flown column loudspeaker configuration.
2. Screw the K-JOINT3 hinge arms to the column
loudspeaker(s) (see "Joint", page 4).
3. Assemble the top column loudspeaker to the K-FLY3
(see "Suspended", page 6).
4. Hang the flybar at the rigging using the pin hole
suggested by the K-framework3 simulator software.
5. Add and tilt the bottom loudspeaker(s) according to the
configuration designed with the K-framework3 simulator
software (see "Joint", page 4)
6. Set the Thunder-KS subwoofer(s) according to the
configuration designed with the K-framework3 simulator
software.
Design the flown column loudspeaker
configuration with the latest version of the
K-framework3 simulator software.
Pinnacle-KR
Assembly Manual

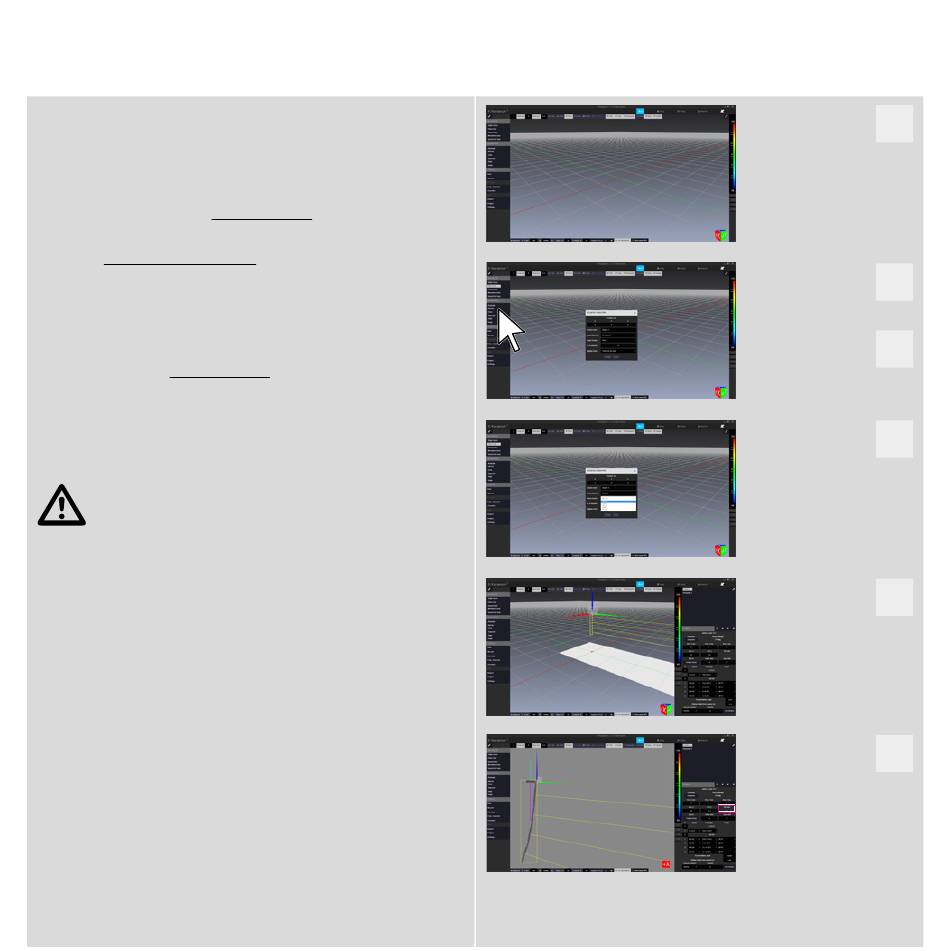

Launch the
K-framework3
software and switch
the interface to the 3D
simulator.
Add a flown array.
Select the KFLY2
flybar in order to
simulate a Pinnacle
suspended line array.
Select the desired
column loudspeaker
model (Kobra, Python
or Kayman) and insert the
number of units.
The rigging mode is
"One pick-up point".
Add the listening
area and shape it
according to the
location architecture.
Aim the suspended
loudspeaker at the
listeners: modify the
cluster tilting angle and the
mechanical steering.
The K-framework3 will
calculate the exact tilting
angle and the proper pick-up
point in the flybar.
1
2
3
4
5
6
